In the diagram below, the Z33 shelf has a single PME-412 (or PME-216i) module. Each PME module can
support two 10 GbE trunks, one in each direction, but there is no card protection in this configuration. The
management plane is also non-redundant.
10 GbE
Z33
Z77
with PME
Z33
1 GbE, 10 GbE
Z33
Single PME-412 card
(Both West and East optics
on this card.)

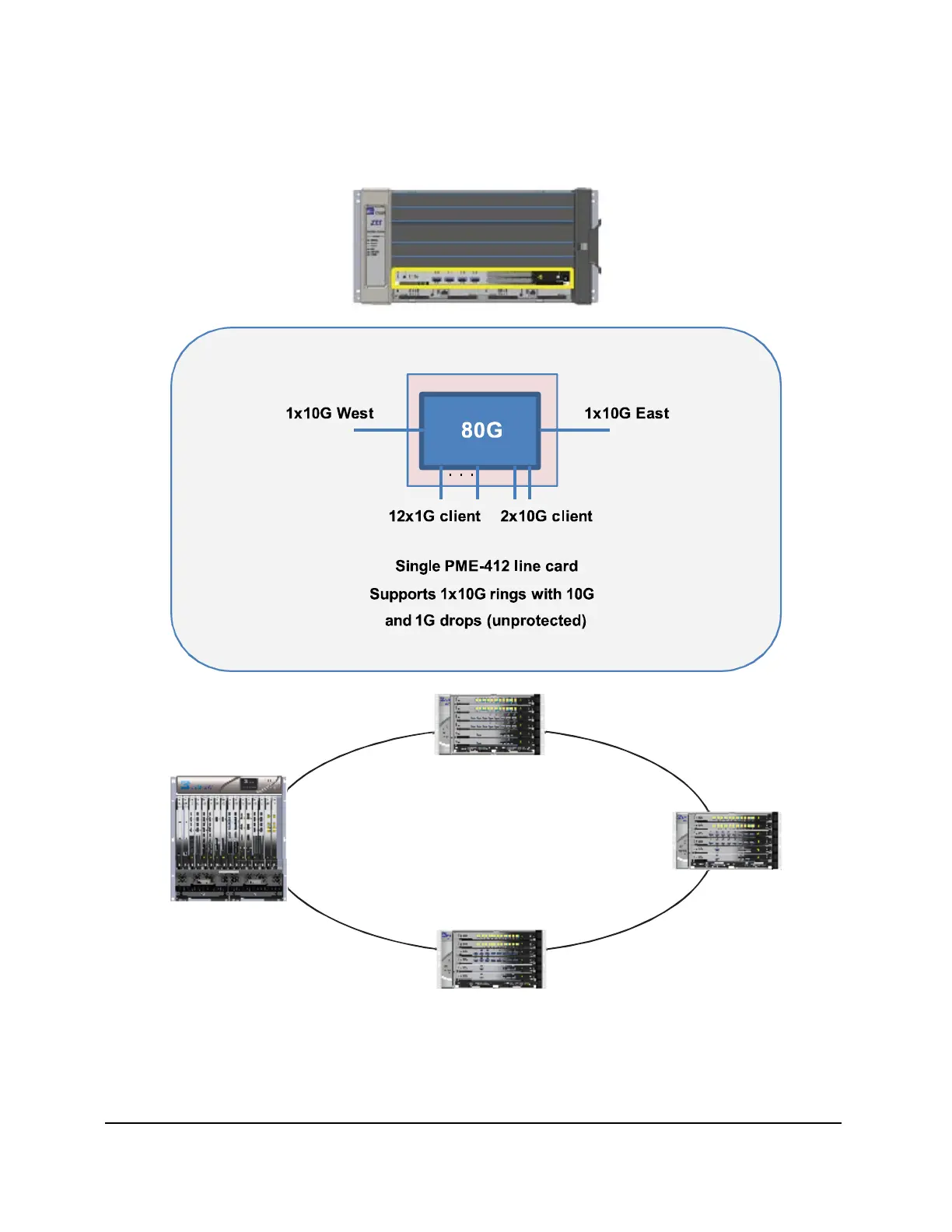

Figure 82: Z-Series 10G Ring with a Single PME Module
