DAELIM DAYSTAR Service Manual

9-3

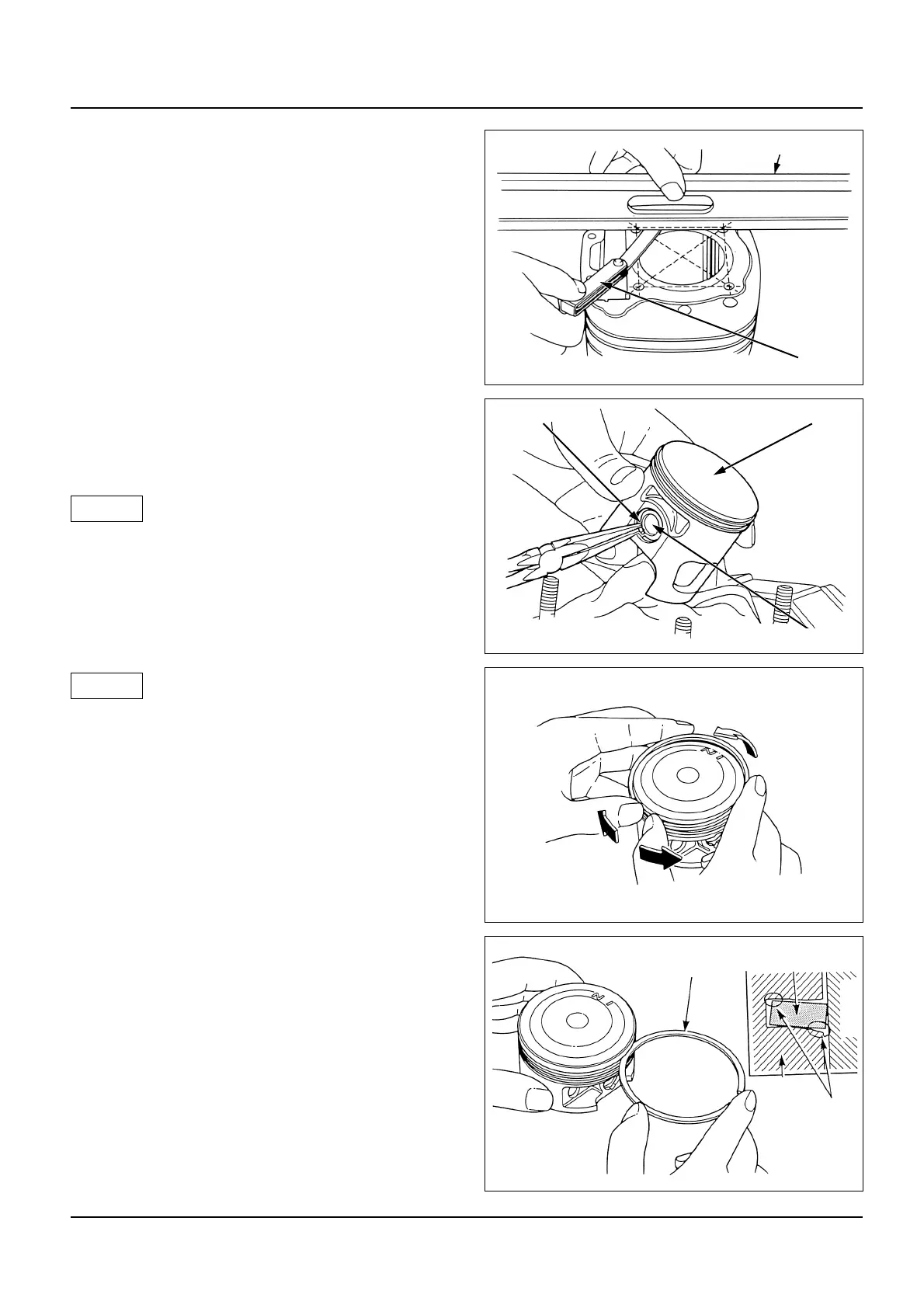

Cylinder / Piston
nspect the twist of cylinder.
Service Limit:0.1mm(0.004in)
Piston
Removal
 Remove the piston pin clips.
 Do not let the clips fall into the crankcase.
 Push the piston pin out and remove the piston.
 Check the piston ring for damage or
deterioration.
 Remove the piston rings.
 Be careful when removing the rings.
 Measure the piston ring-to-groove clearance.
Service Limit:
Top/Second:0.09mm(0.004in)
Oil:0.09mm(0.004in)
 Inspect the piston for damage and wear.

NOTE

NOTE
Ruller
Filter Gauge
Piston
Piston Pin Clip
Piston Pin
Piston Ring
Ring
Cylinder

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
