DAELIM DAYSTAR Service Manual

9-4
Cylinder / Piston

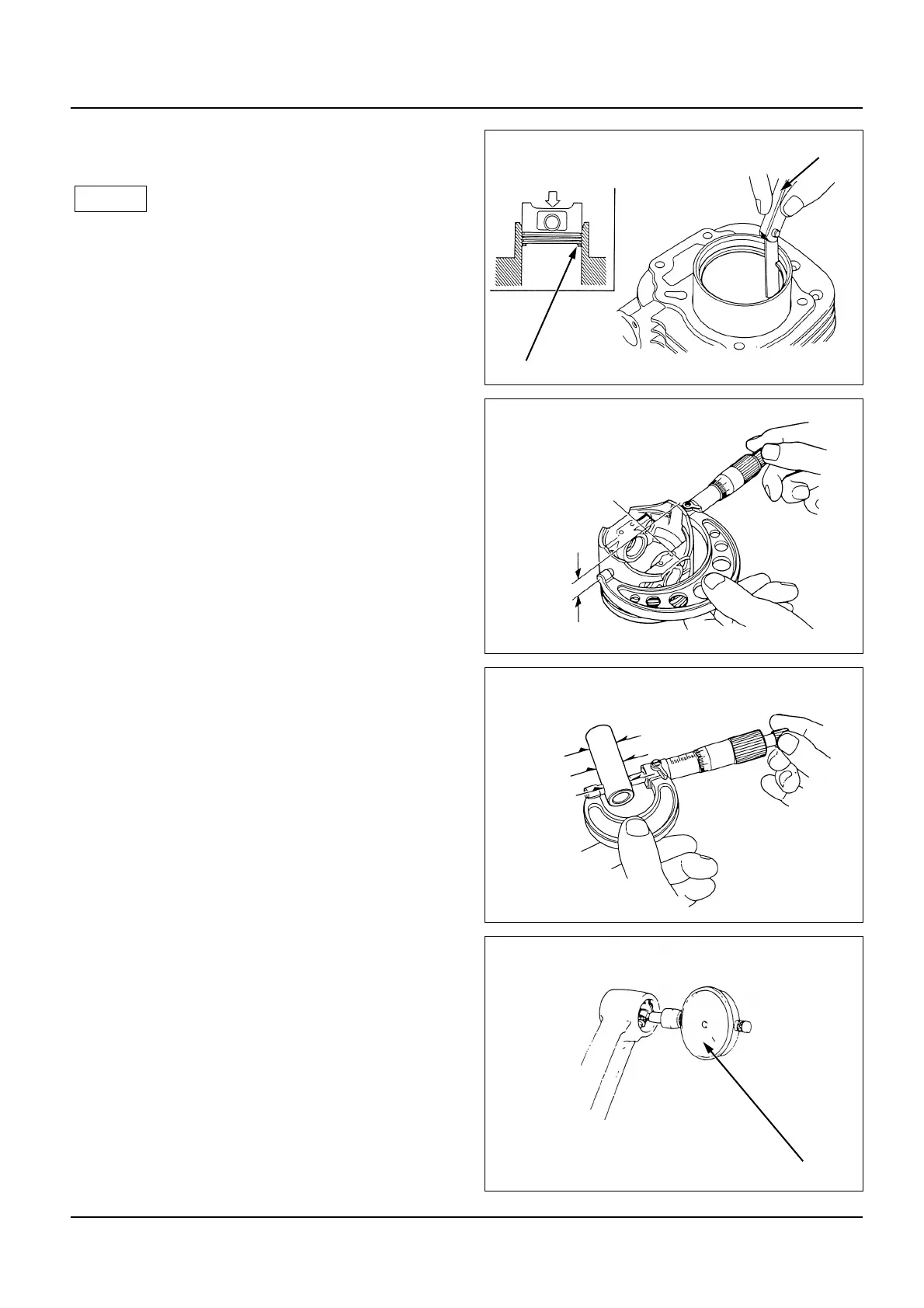

 Insert the piston ring into the cylinder inside,
and inspect the piston ring clearance.
 Insert the piston ring horizontally using a
piston head.
Service Limit:
Top/Second:0.5mm(0.02in)
Oil(Side rail):1.1mm(0.04in)
 Measure the piston outside diameter at 10mm
position in piston end part facing 90
direction.
Service Limit:56.37mm(2.219in)
 Measure the piston pin hole inside diameter.
Service Limit:15.04mm(0.592in)
 Measure the piston pin outside diameter.
Service Limit:14.96mm(0.589in)
 Figure out the piston-to-piston pin clearance.
Service Limit:0.02mm(0.001in)
 Measure the connecting rod small end inside
diameter.
Service Limit:15.06mm(0.593in)
 Figure out the connection rod small end inside
diameter-to-piston pin clearance.
Service Limit:0.04mm(0.002in)
①
②
③
90
。

NOTE
Piston Pin
Cylinder Gauge
Filter Gauge

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
