DAELIM DAYSTAR - Page 104

9-7
Cylinder / Piston
 Install the lower part of the cam chain into the
slot of the crankcase.

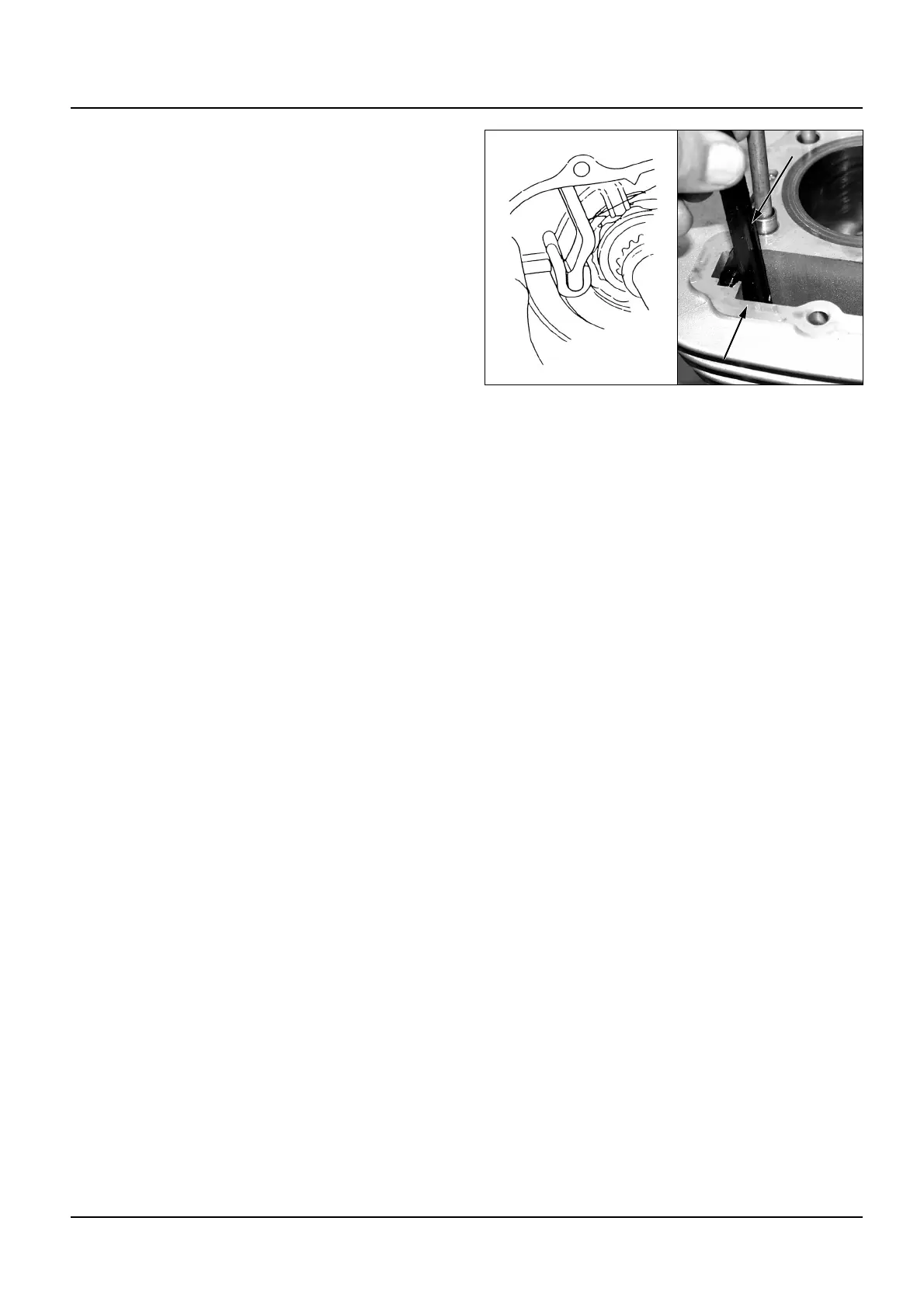

 Install the cam chain guide, aligning the tang
of the crankcase with the slot of the cylinder.
 Install the cylinder head(refer to section 8).
