DAELIM DAYSTAR Service Manual

9-6

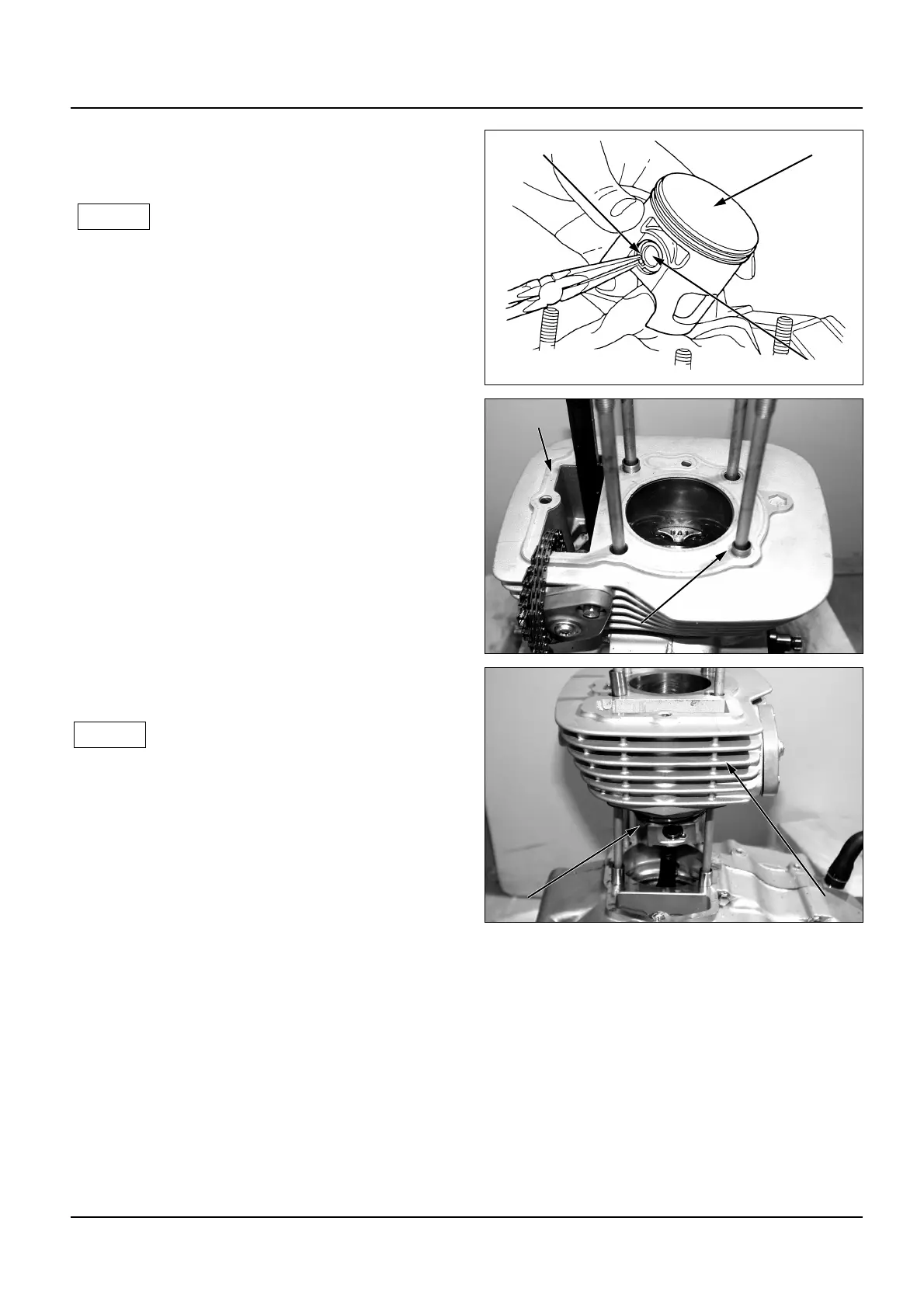

Cylinder / Piston
 Install the piston, piston pin on the connecting
rod.
 Install new piston pin clips.
 Install the piston with the INmark facing
towards the intake side.
 Place a shop towel over the opening to prevent
piston pin clips from falling into the crankcase.
 Make sure that the piston clips are seated
properly and their end gaps are not aligned
with the cutout in the piston.
 Install a new gasket and the dowel pins.
 Coat the cylinder inside, piston rings with
clean engine oil and install the piston ring.
 Be careful not to damage piston rings.
 Be careful to prevent cam chain from falling
into the crankcase.

NOTE

NOTE
Cam Chain
Cam Chain
Cam Chain
Cam Chain
Cam Chain
Cam ChainCam Chain
Cam Chain
Cam Chain
Cam Chain
Cam Chain
Cam Chain
Cam Chain
Cylinder
Cylinder
Cylinder
Cylinder
Cylinder
CylinderCylinder
Cylinder
Cylinder
Cylinder
Cylinder
Cylinder
Cylinder
Gasket
Gasket
Gasket
Gasket
Gasket
GasketGasket
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket
Dowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
Dowel PinsDowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
Dowel Pins
PistonPiston Pin Clip
Piston Pin

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
