DAELIM DAYSTAR Service Manual

13-11

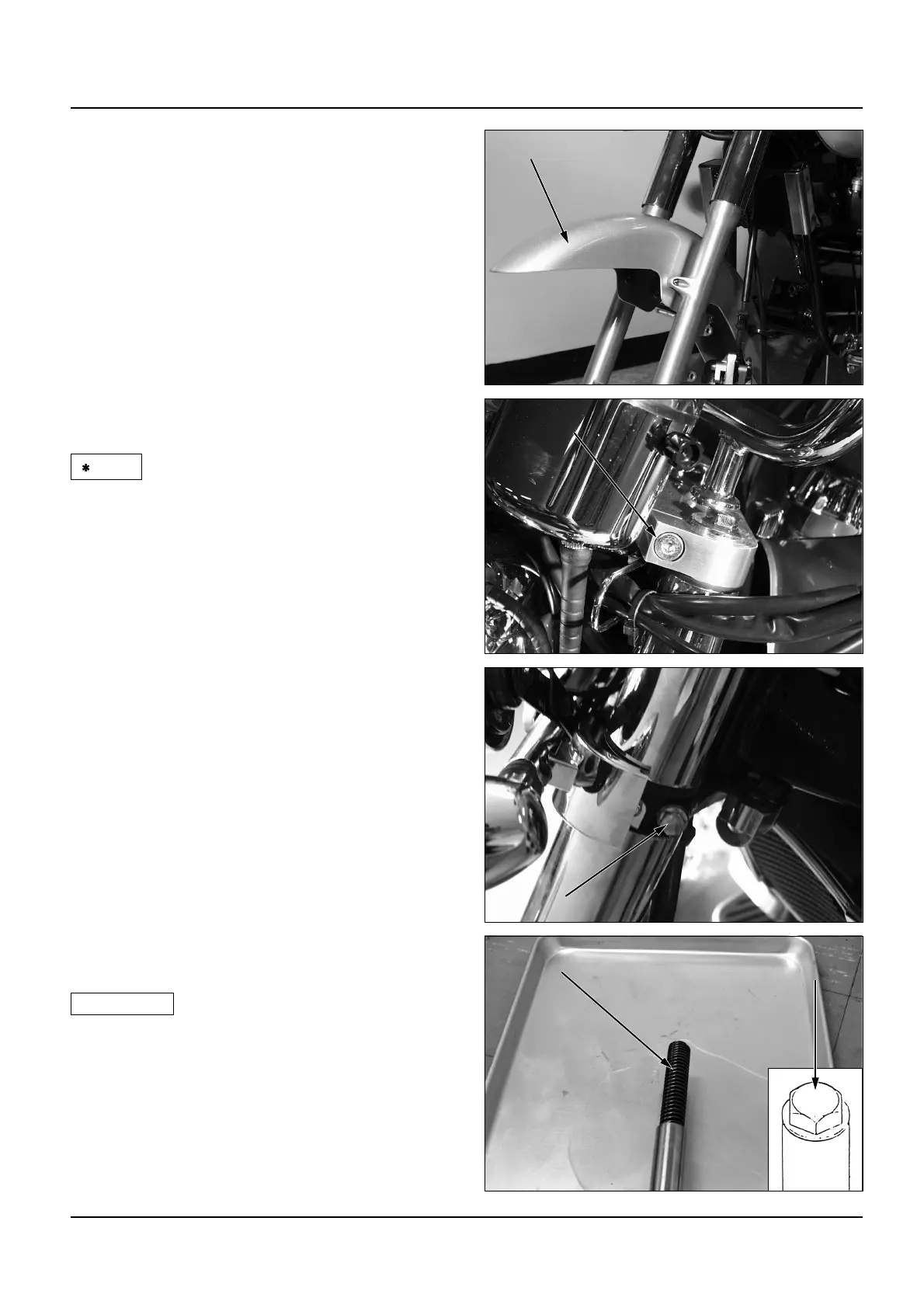

Front Wheel/Front Fork/Steering
● Loosen the fork tube cap bolt when disassem-
bling the front fork.
• Don’t remove the fork tube cap bolt, but
loosen it.
• Loosen the fork top socket bolt.
• Loosen the steering stem pinch flange bolt.
• Loosen the front fender pinch socket bolt.
• Remove the front fork.
• Loosen the fork bottom bolt, and remove the
fork tube.
Disassembly
● Remove the fork tube cap bolt.
• If the screw is loosen completely, be careful
that the fork tube cap bounds well by the
power of spring.
• Remove the fork spring and put out the fork oil
by expanding and contracting fork pipe several
times.
Front Fork
Removal
● Remove the following
- Front wheel (⇨13-6)
- Brake caliper
- Front fender
NOTE
!
CAUTION
△
Front Fender
Front Fender
Front Fender
Front Fender
Front Fender
Front FenderFront Fender
Front Fender
Front Fender
Front Fender
Front Fender
Front Fender
Front Fender
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket BoltFork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom BoltFork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Bottom Bolt
Fork Spring
Fork Spring
Fork Spring
Fork Spring
Fork Spring
Fork SpringFork Spring
Fork Spring
Fork Spring
Fork Spring
Fork Spring
Fork Spring
Fork Spring
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap BoltFork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
