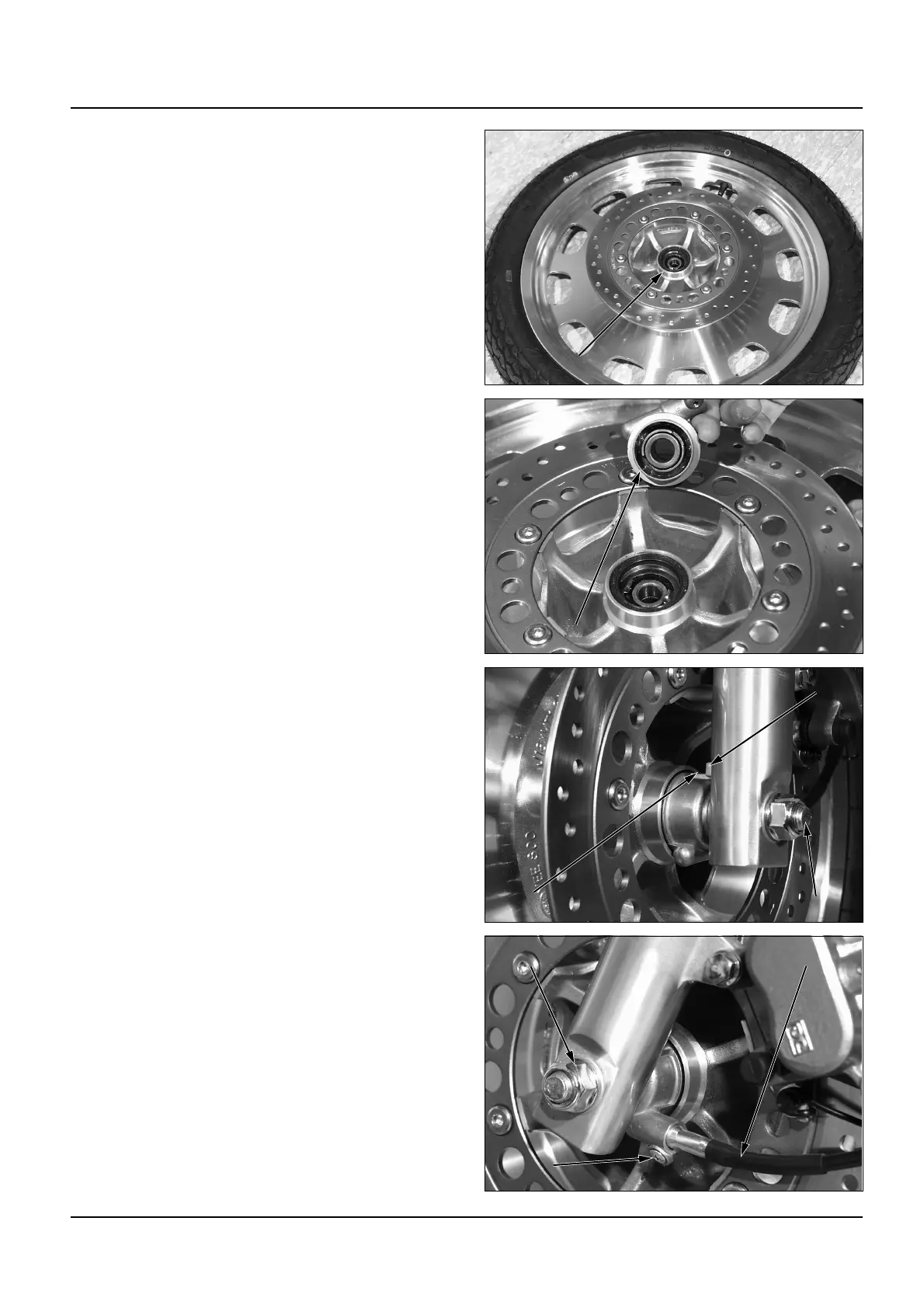

Front Wheel/Front Fork/Steering

● Loosen the brake disc by the disk bolt.

● Align the speedometer gear retainer hole with

the slot of the wheel hub.

● Apply grease the dust seal rim. Install the dust

seal.

● Install the speedometer box, aligning the tangs

in the speedometer gear retainer with the slot

in the gear.

Assembly

● Place the front wheel between the front fork

legs.

● Install the wheel while inserting the brake disk.

● Take care not to damage the brake pads.

● Align the tangs in the left fork slider with the

slot the speedometer gear box.

● Install the front axle into the speedometer gear

box and wheel hub.

● Screw the axle nut. (U-nut)

● Install the speedometer cable and set screw

securely.

● Place the front wheel on the ground, tighten

the axle nut with the specified torque.

Torque: 5.9kgf-m(59N.m)
