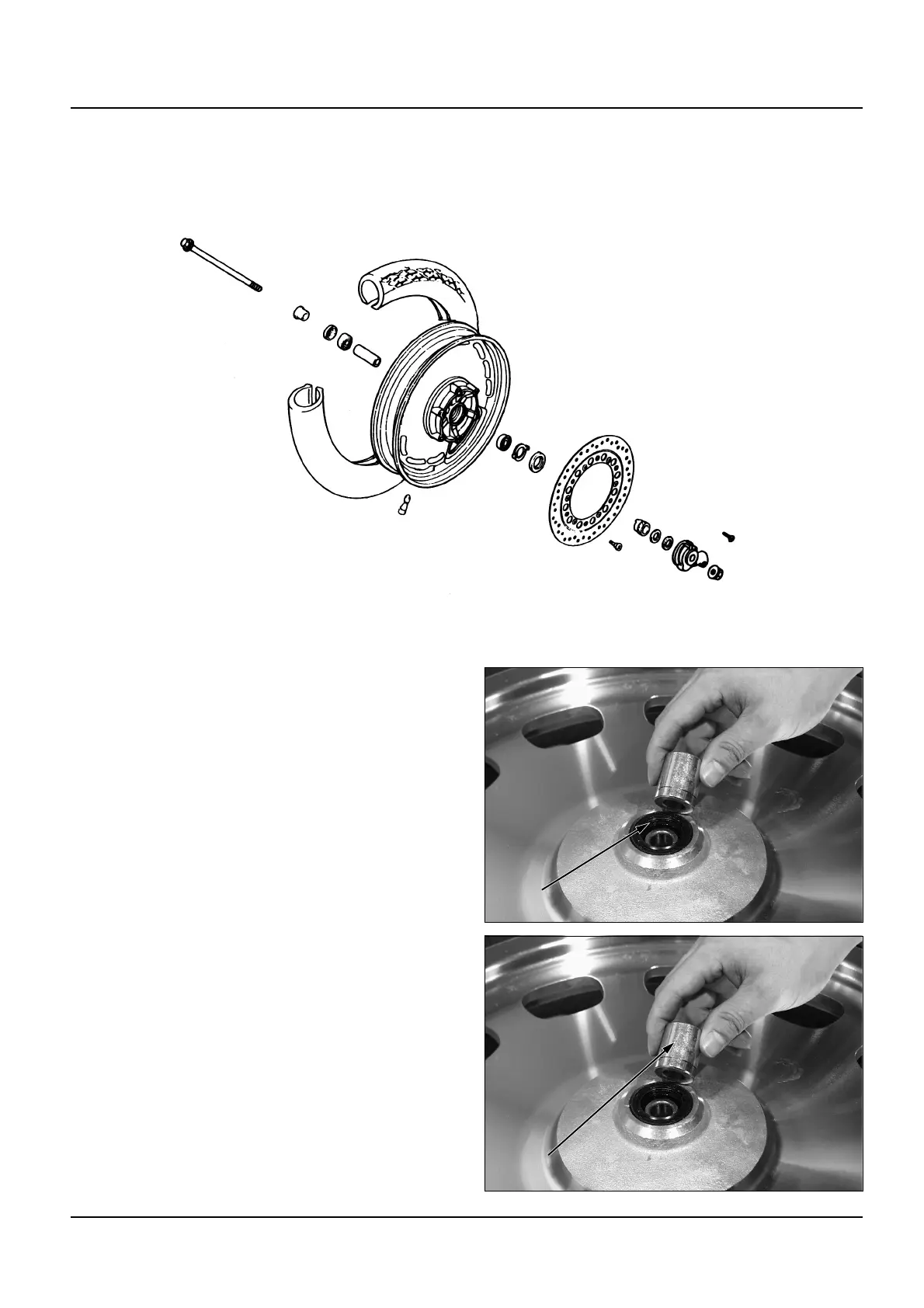

13-9
Front Wheel/Front Fork/Steering
Assembly
● Apply grease to the dust seal rim.
● Install the dust seal, brake disk.
● Install the brake disk.
Torque: 4.2kgf-m(42N.m)
● Install the right side collar.
