DAELIM DAYSTAR Service Manual

13-8
Front Wheel/Front Fork/Steering
● Remove the bust seal of R. side.
● Remove the brake disc of L. side.
• Inspection for the problems of disk.
(⇨Section 15-6)

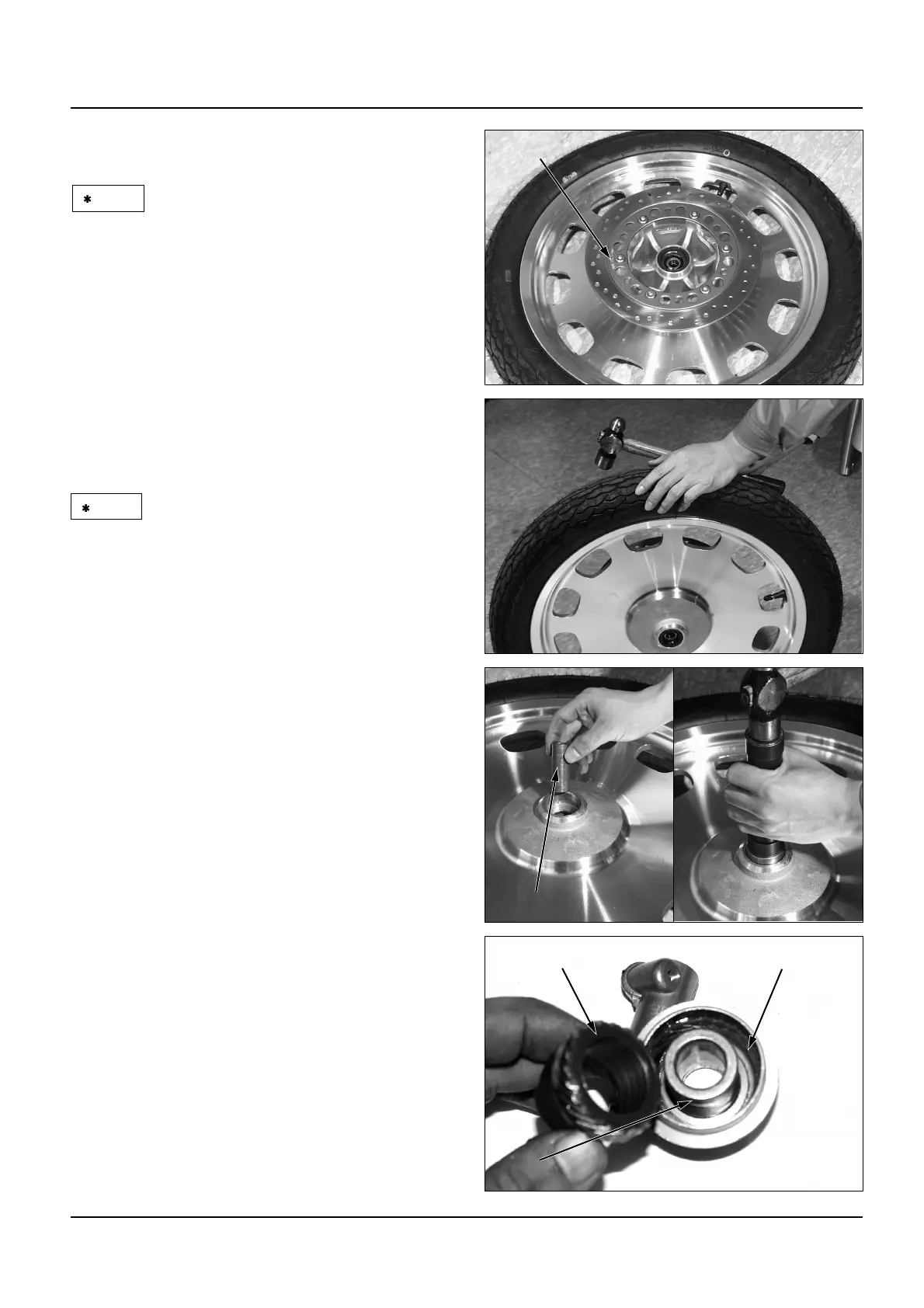

Wheel Bearing Replacement
● Install the bearing remover head and remover
shaft into the wheel. Remove the distance
collar and drive out other bearing
• Replace the bearings in pairs. Never install the
old bearing. Once a bearing is removed, it
must be replaced with a new one.
Tools:
Bearing remover head
Bearing remover
● Apply grease to the bearing.
● With the bearing seal facing outside, drive the
right bearing into the wheel securely, until it is
seated.
● Do not allow the bearings to tilt while driving
them in. Install the distance collar with the
bearing seal surface facing outside and drive a
new left bearing in securely until is is seated.
Tools:
Driver
Attachment, 32×35mm
Pilot, 15mm
Speedometer Gear Replacement
● Remove the speedometer gear and washer
from the speedometer gear box.
● Check the gear for wear and damage.
● Install the washer.
● Coat the speedometer gear with grease and
install it.
NOTE
NOTE
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Brake Disk
Distance Collar
Distance Collar
Distance Collar
Distance Collar
Distance Collar
Distance CollarDistance Collar
Distance Collar
Distance Collar
Distance Collar
Distance Collar
Distance Collar
Distance Collar
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer GearSpeedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear BoxSpeedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Speedometer Gear Box
Washer
Washer
Washer
Washer
Washer
WasherWasher
Washer
Washer
Washer
Washer
Washer
Washer
