DAELIM DAYSTAR Service Manual

13-13
Front Wheel/Front Fork/Steering

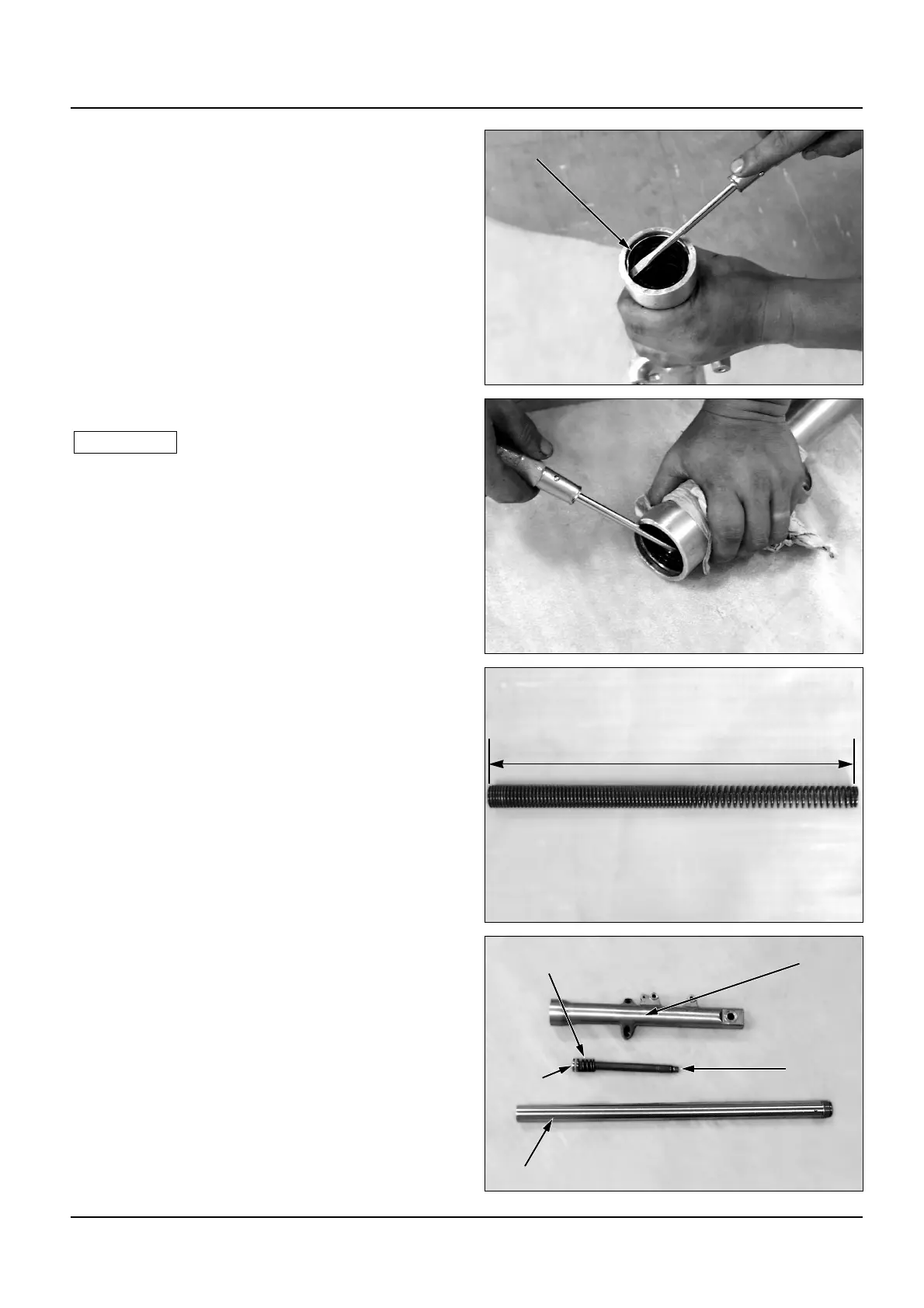

● Remove the set ring.
● Remove the oil seal.
• Prevent the around of bottom case inside and
outside from damaging.
Inspection
● Place the fork spring in flat place, and measure
the fork spring free length.
● Replace the new one if it is under the service
limit.
● Inspect each part for damaging and wear, and
then must be replaced if necessary.
!
CAUTION
△
Upper
Upper
Upper
Upper
Upper
UpperUpper
Upper
Upper
Upper
Upper
Upper
Upper
Set Ring
Set Ring
Set Ring
Set Ring
Set Ring
Set RingSet Ring
Set Ring
Set Ring
Set Ring
Set Ring
Set Ring
Set Ring
Bottom Case
Bottom Case
Bottom Case
Bottom Case
Bottom Case
Bottom CaseBottom Case
Bottom Case
Bottom Case
Bottom Case
Bottom Case
Bottom Case
Bottom Case
Piston Ring
Piston Ring
Piston Ring
Piston Ring
Piston Ring
Piston RingPiston Ring
Piston Ring
Piston Ring
Piston Ring
Piston Ring
Piston Ring
Piston Ring
Piston
Piston
Piston
Piston
Piston
PistonPiston
Piston
Piston
Piston
Piston
Piston
Piston
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork TubeFork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Rebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Rebound SpringRebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Rebound Spring
Lower
Lower
Lower
Lower
Lower
LowerLower
Lower
Lower
Lower
Lower
Lower
Lower
