13-14
Front Wheel/Front Fork/Steering

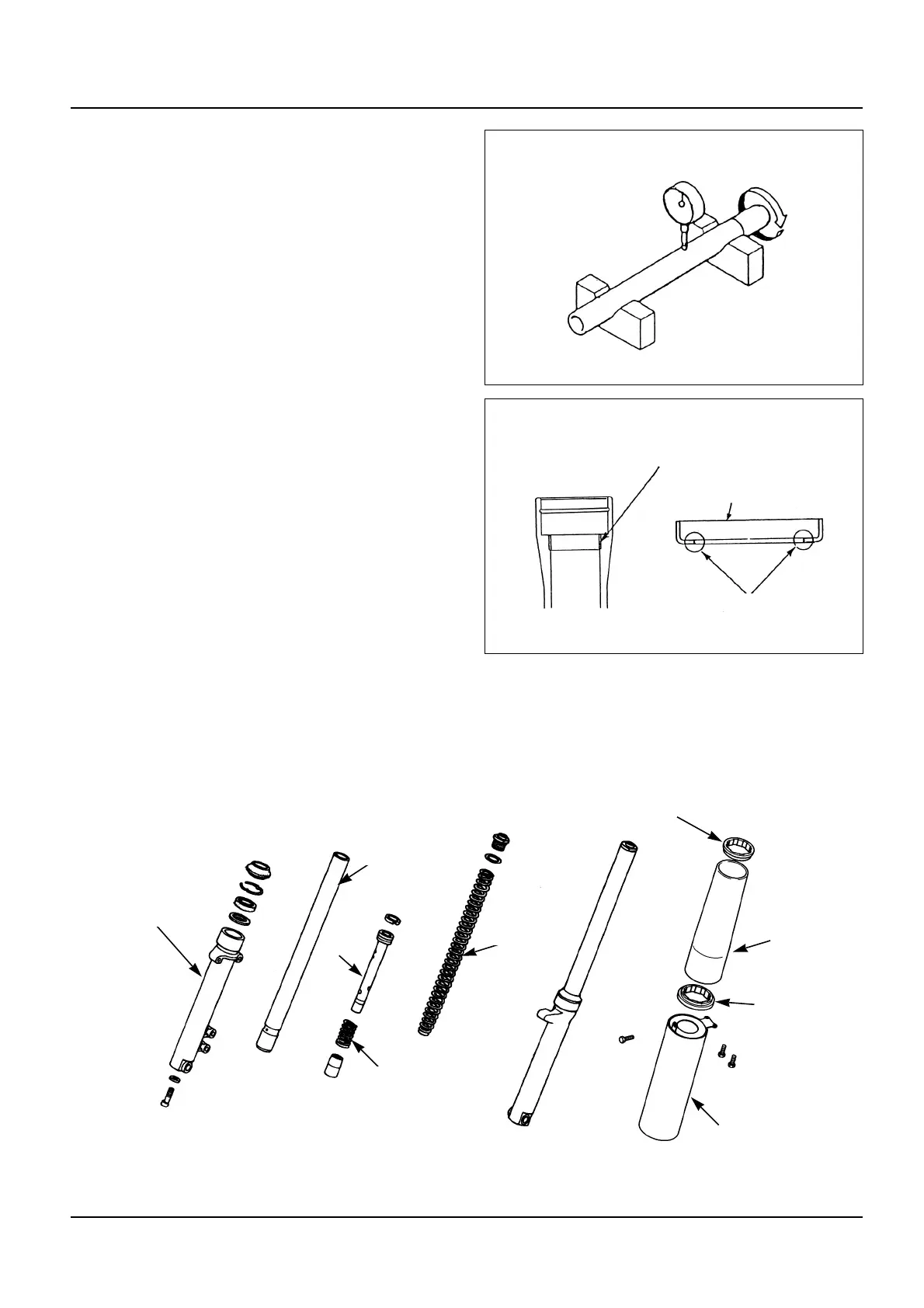

● Install the fork tube into V-block, and measure
the bent with a dial gauge.
Service Limit: replacement if over 0.2mm
● Inspect the contacted part of slider bush.
Bottom case must be replaced if the copper
portion is shown over three of quarter in teflon
coating part or remarkably damaging.
Assembly
● Before installing, clean each part with clean oil.
Slider Bush
Back-up-Ring
Check Point
Front Fork Upper Mount
Front Fork
Upper Cover
Front Fork
Lower Mount
Front Fork
Lower Cover
Fork Spring
Rebound Spring
Fork Tube
Bottom Case
Piston
To Next Page
