DAELIM DAYSTAR Service Manual

13-15
Front Wheel/Front Fork/Steering

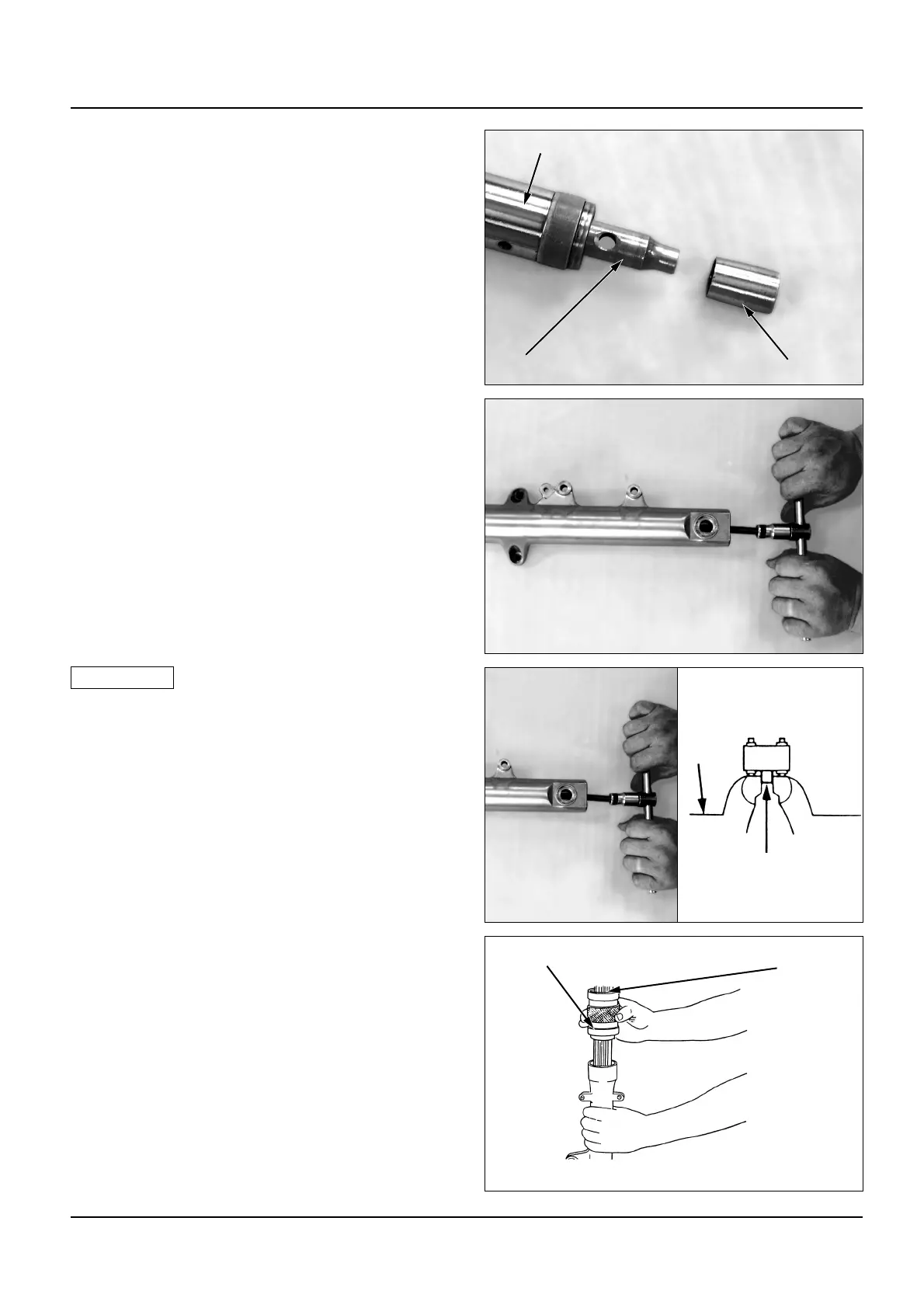

● Connect the rebound spring and fork piston
into the fork tube.
● Connect the oil lock piece into the piston top
end part, and install the fork tube into the
bottom case.
● Cover the bottom case with cloth, and fix it
into the vise.
● Coat the bolt part of socket bolt with oil to the
tread, and install the fork piece.
Torque: 2.0kg-m
• When fixing the bottom case to the vise, insert
the bracket part avoiding the case from putting
into it directly.
● Install the back-up ring.
● Coat the ATF with the new oil seal.
● Insert the oil seal until showing the
assembling groove of bottom case set ring
using the tools.
Tools:
Fork seal driver
Fork seal driver body
!
CAUTION
△
Vise
Bracket
Fork Seal Driver
Attachment
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork TubeFork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Fork Tube
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock PieceOil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Oil Lock Piece
Piston
Piston
Piston
Piston
Piston
PistonPiston
Piston
Piston
Piston
Piston
Piston
Piston
