DAELIM DAYSTAR Service Manual

13-16
Front Wheel/Front Fork/Steering

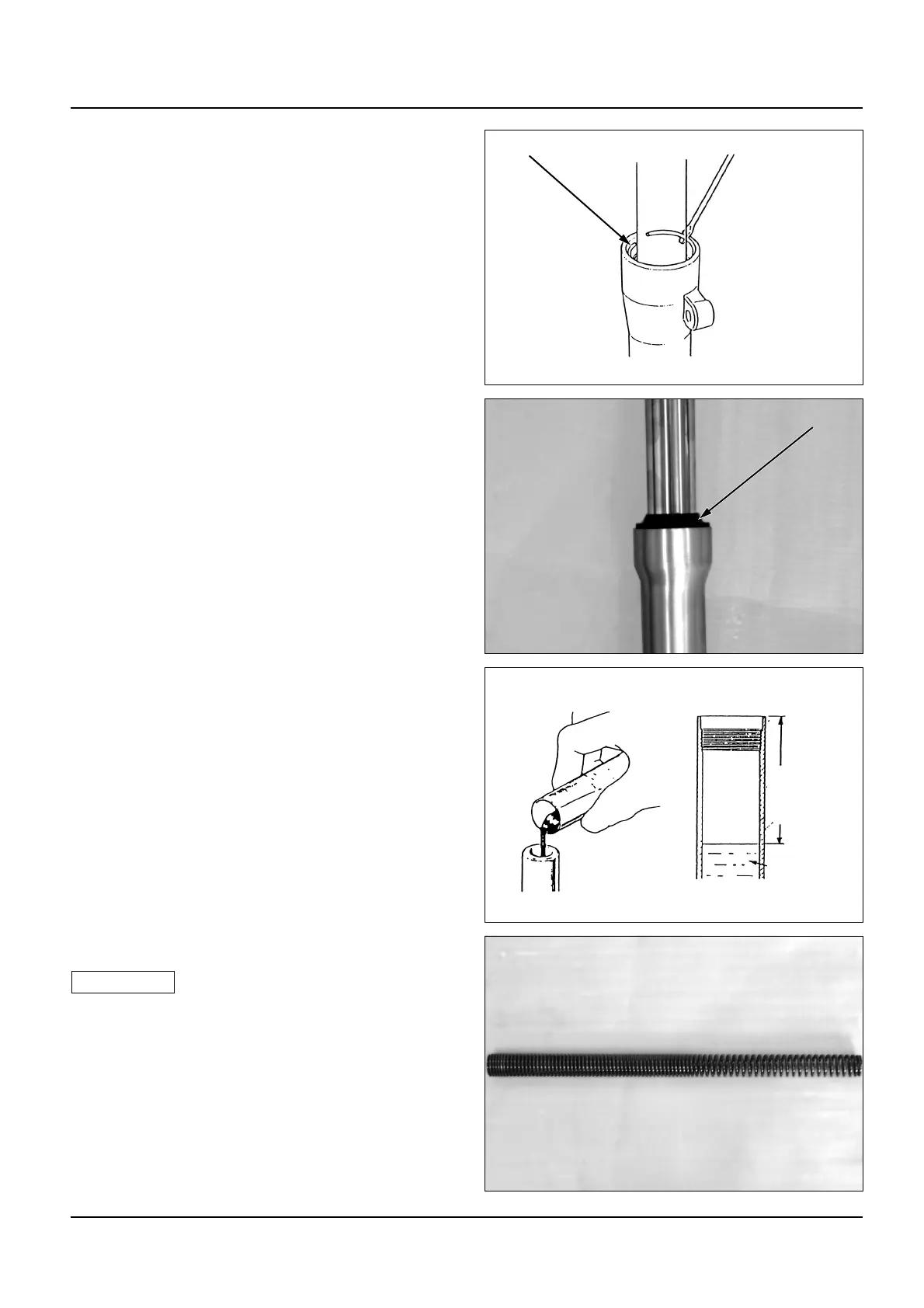

● Install the set ring.
● Install the set ring to bottom case exactly.
● Install the dust seal.
● Fill the auto-transmission fluid (AFT) into the
fork tube according to standard amount.
Capacity: 280cm
3
● Pull out the air by pressing the fork tube 2-3
times slowly.
● Check the oil level in state of compression.
Oil Level: 250mm
● Install the spring into the fork tube.
• Make a spring face down the small side of
pitch.
!
CAUTION
△
Set Ring
Fork Oil
Fork Oil
Oil Level
Lower
Lower
Lower
Lower
Lower
LowerLower
Lower
Lower
Lower
Lower
Lower
Lower
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust SealDust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Upper
Upper
Upper
Upper
Upper
UpperUpper
Upper
Upper
Upper
Upper
Upper
Upper

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
