DAELIM DAYSTAR Service Manual

13-17
Front Wheel/Front Fork/Steering

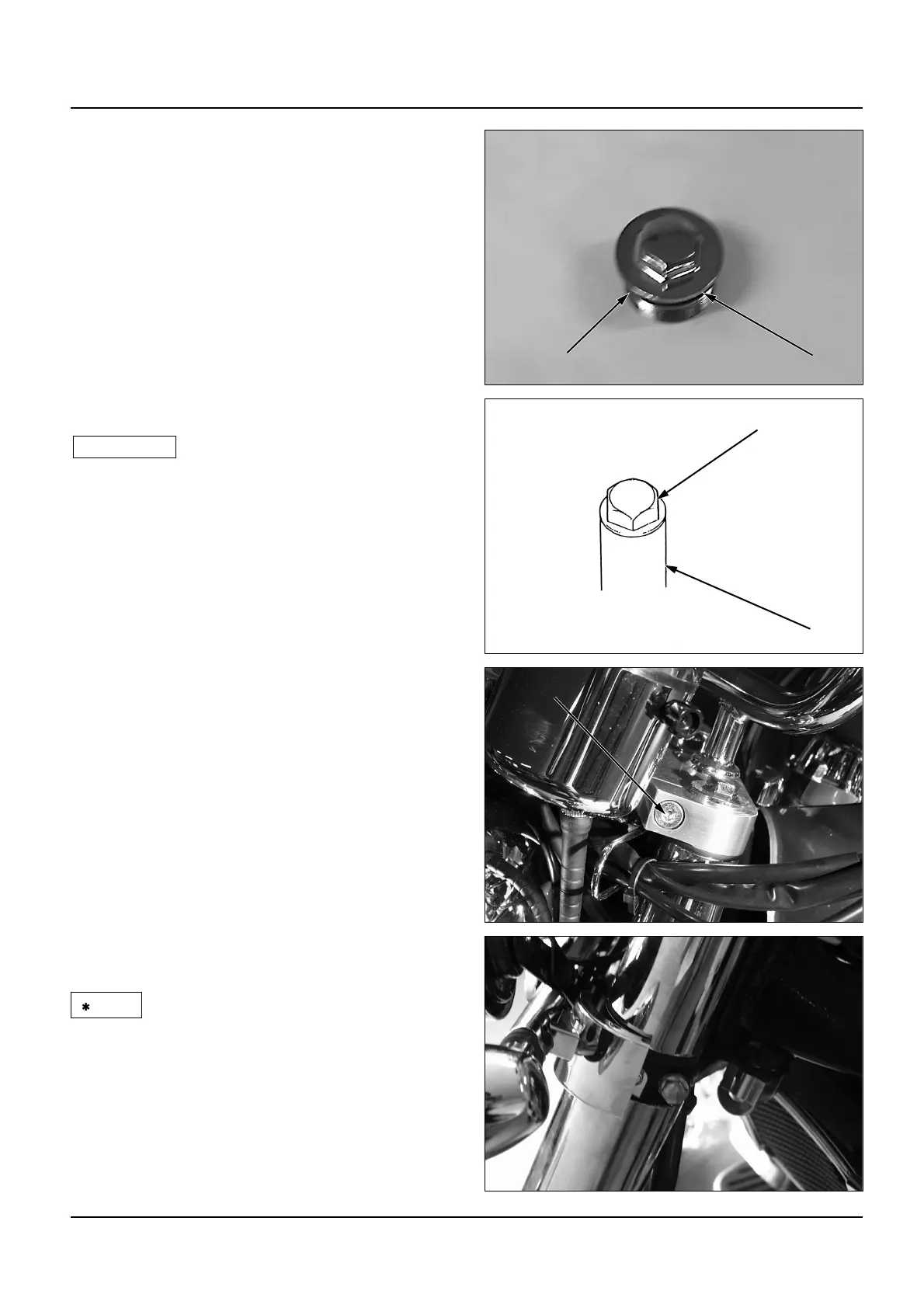

● Install the new O-ring to frok tube cap bolt.
● Install the fork tube cap bolt to fork tube.
• Do not install the fork tube cap bolt again.
Installation
● Install the front fork into the steering stem, top
bridge.
● Align the top end of the fork tube with the
upper surface of the top bridge.
● Install the fork top socket bolt.
Torque: 2.0kgf-m
● Install the fork bottom pinch bolt.
Torque: 3.3kgf-m
• Be care that the collar is not to seperate.
!
CAUTION
△
NOTE
Fork Tube Cap Bolt
Fork Tube
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket BoltFork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Top Socket Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap BoltFork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
Fork Tube Cap Bolt
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring
O-RingO-Ring
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
