DAELIM DAYSTAR Service Manual

14-9
Rear Wheel/Rear Brake/Suspension
Disassembly

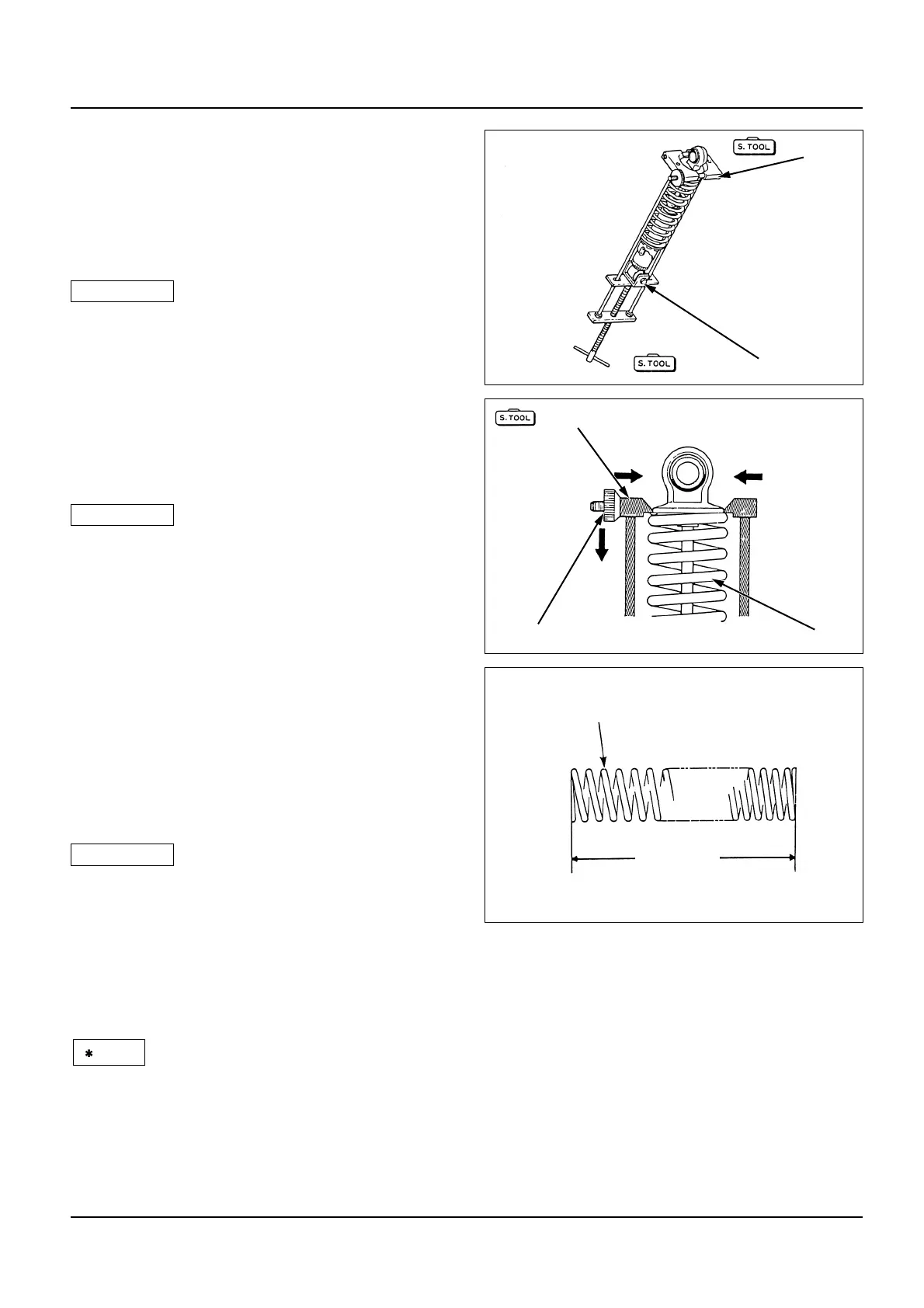

● Install the rear cushion compressor and
attachment.
Tools:
Rear cushion compressor
Rear cushion attachment
• Avoid the upper joint from damage.
● Fix the upper joint, and remove the upper joint
by loosening the lock nut.
● Remove the case, spring, lock nut, damper
rubber, and spring adjuster.
• Be careful when dismantling because of the
strong tension of spring
Inspection
● Measure the free length of rear cushion spring.
● Inspect the damper rod for winding and
damaging.
● Inspect the damper unit for oil leakage.
● Inspect the damper rubber for damaging and
crank.
• Never dismantle and heat damper unit.
Assembly
● Install the spring adjuster and damper rubber.
● Assembly is done in the reverse order of
disassembly.
• Install the rear cushion spring making the
small position of pitch face up.
!
CAUTION
△
!
CAUTION
△
!
CAUTION
△
Attachment
Attachment
Holder Nut
Spring
Spring
Free Length
Rear Cushion Compressor
NOTE

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
