14-10
Rear Wheel/Rear Brake/Suspension
● Coat the lock nut with oil to the thread, and
install the rear cushion compressor attachment
into the damper rod.
● Coat the upper joint with oil to the thread and
install it into the damper rod.
● Fix the upper joint and tighten the lock nut.
Torque: 3.8kgf-m (38N.m)
Tools:
Rear cushion compressor
Rear cushion compressor attachment

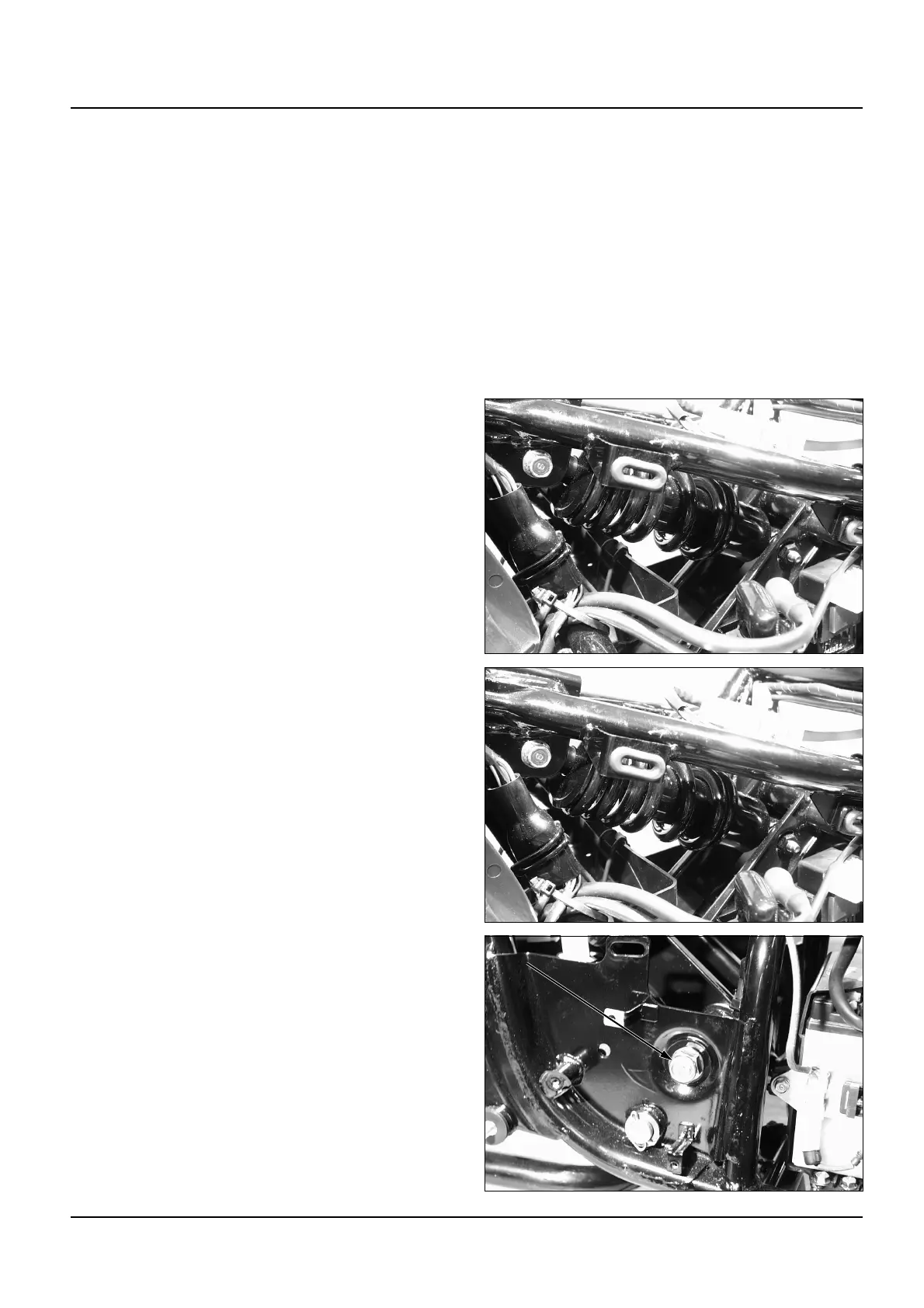

Installation
● Install the rear cushion.
● Install the bolt
Torque: Upper bolt: 3.4kgf-m
Lower bolt: 3.4kgf-m
Rear Fork
Removal
● Remove the rear wheel. (⇨14-3)
● Remove the rear cushion. (⇨14-8)
● Remove the chain cover.
● Loosen the pivot bolt and nut using a box
wrench, and remove the rear fork.
Nut
Nut
Nut
Nut
Nut
NutNut
Nut
Nut
Nut
Nut
Nut
Nut
