DAELIM DAYSTAR Service Manual

14-11
Rear Wheel/Rear Brake/Suspension

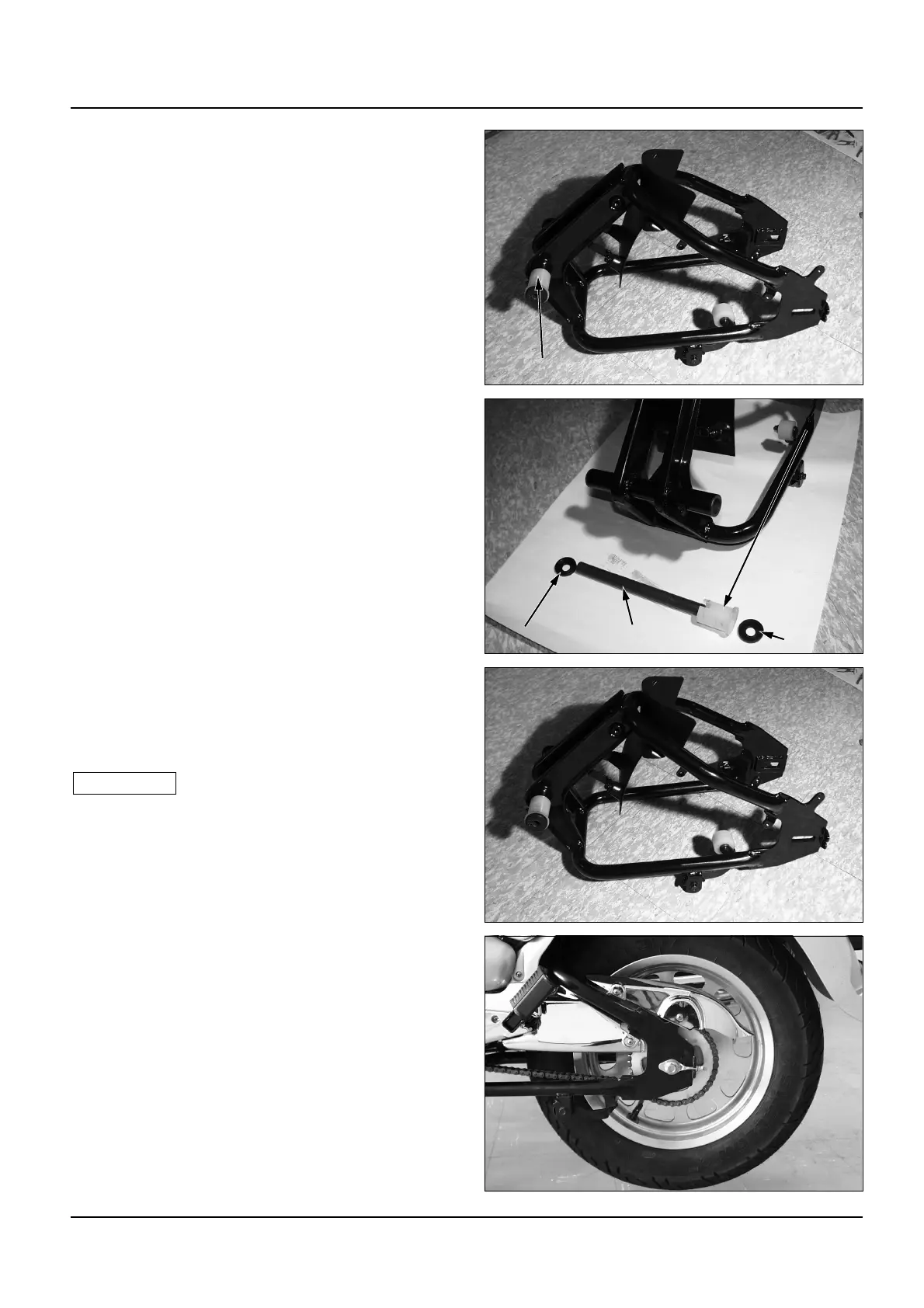

Disassembly
● Disassemble the rear sub fender.
● Disassemble the chain slider.
● Disassemble the rear fork pivot bearing.
● Disassemble the dust seal and center collar.
● Disassemble the pivot bush.
● Inspect the center collar pivot bush for wear,
damage, and defect.
● Check the dust seal for wear and damage.
● Check the rear fork for wear and other damage.
● Inspect the rear pivot fork bearing for wear or
damage if necessary replaced.
Assembly
● Apply grease to the center collar, pivot bush,
and install them to the rear fork.
● Assemble the chain slider.
●
Coat the dust seal lips with grease, and install it.
● Assemble the rear sub fender.
• Assemble carefully not to bend or damage the
sides of the seal.
Installation
● Install the rear fork and tighten the pivot bolt.
Torque: 4.5kgf-m
● Install the following.
- Rear cushion
- Chain cover.
- Rear wheel
- R/L lower cover
!
CAUTION
△
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain SliderChain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust SealDust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Center Color
Center Color
Center Color
Center Color
Center Color
Center ColorCenter Color
Center Color
Center Color
Center Color
Center Color
Center Color
Center Color
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain SliderChain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Chain Slider
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust SealDust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal
Dust Seal

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
