DAELIM DAYSTAR Service Manual

15-10
Hydraulic Brake

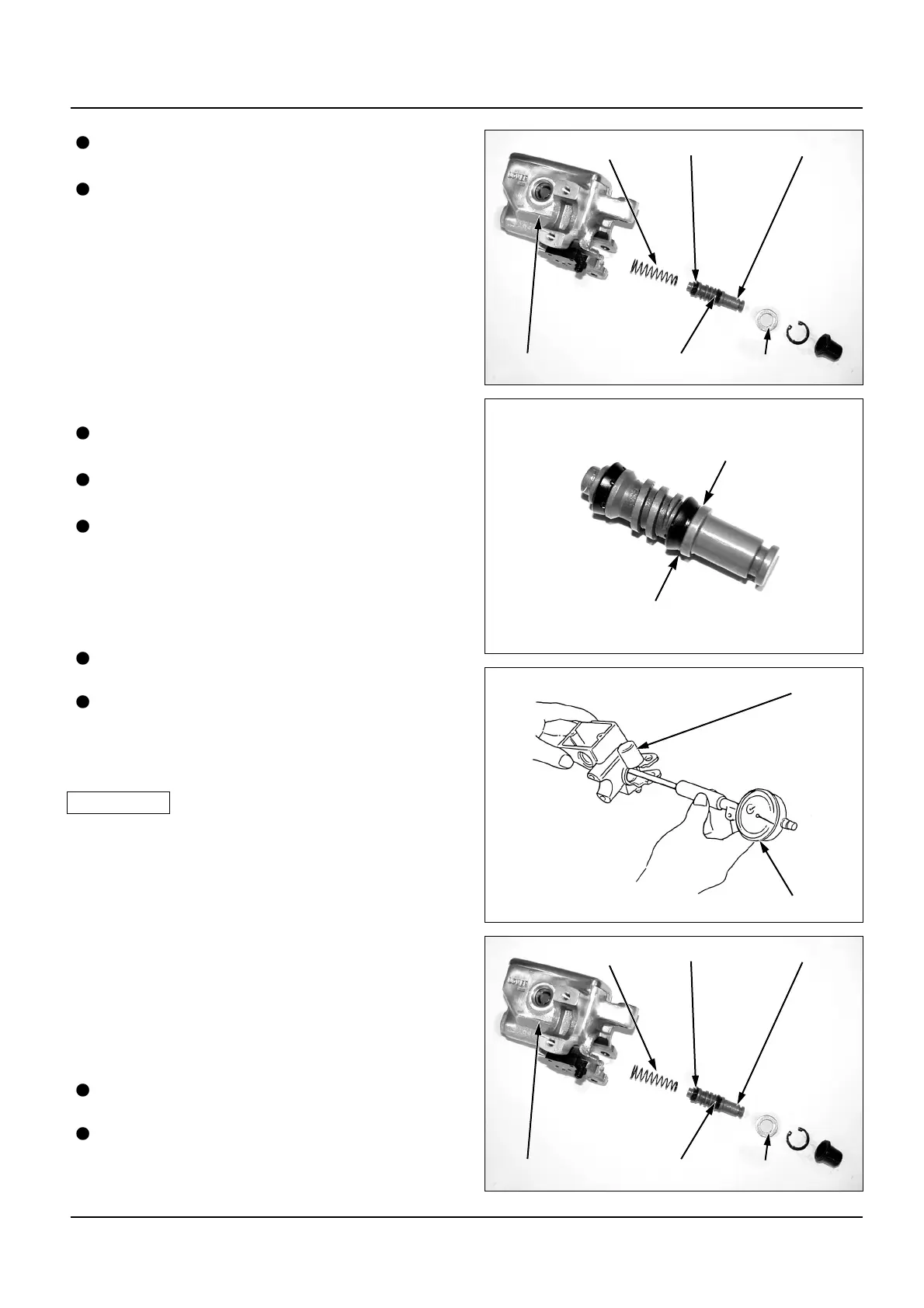

Remove the washer, piston, spring from the
master cylinder.
Clean the master cylinder inside, Resorber,
master piston with brake fluid.
Inspection
Inspect the piston circumference for damaging
or crack.
Inspect th primary cope and secondary cope
for damaging and wear.
Measure the master piston outside diameter.
Service Limit: 12.645mm (0.4978in)
Inspect the master cylinder friction surface for
damaging or crack.
Measure the master piston outside diameter.
Service Limit: 12.755mm(0.5022in)
Assembly
• Install them after cleaning the dust or dirt of
each part.
• The specified parts must be replaced.
• Do not allow foreign material to enter the
system when filling the reservoir.
• Do not mix different types of brake fluid.
They are not compatible.
• Brake fluid can cause damage to painted,
plastic, and rubber surfaces. Place a ran over
these parts whenever the system is served.
• Replace the master piston, spring, cup, snap
ring as a set.
Coat the piston cope and master piston with
brake fluid.
Install the spring, piston, washer and snap ring
into master cylinder, and fix them with a snap
rding.
Tool: Snap ring plier
!
CAUTION
△
Master Cylinder
