DAELIM DAYSTAR Service Manual

15-11
Hydraulic Brake

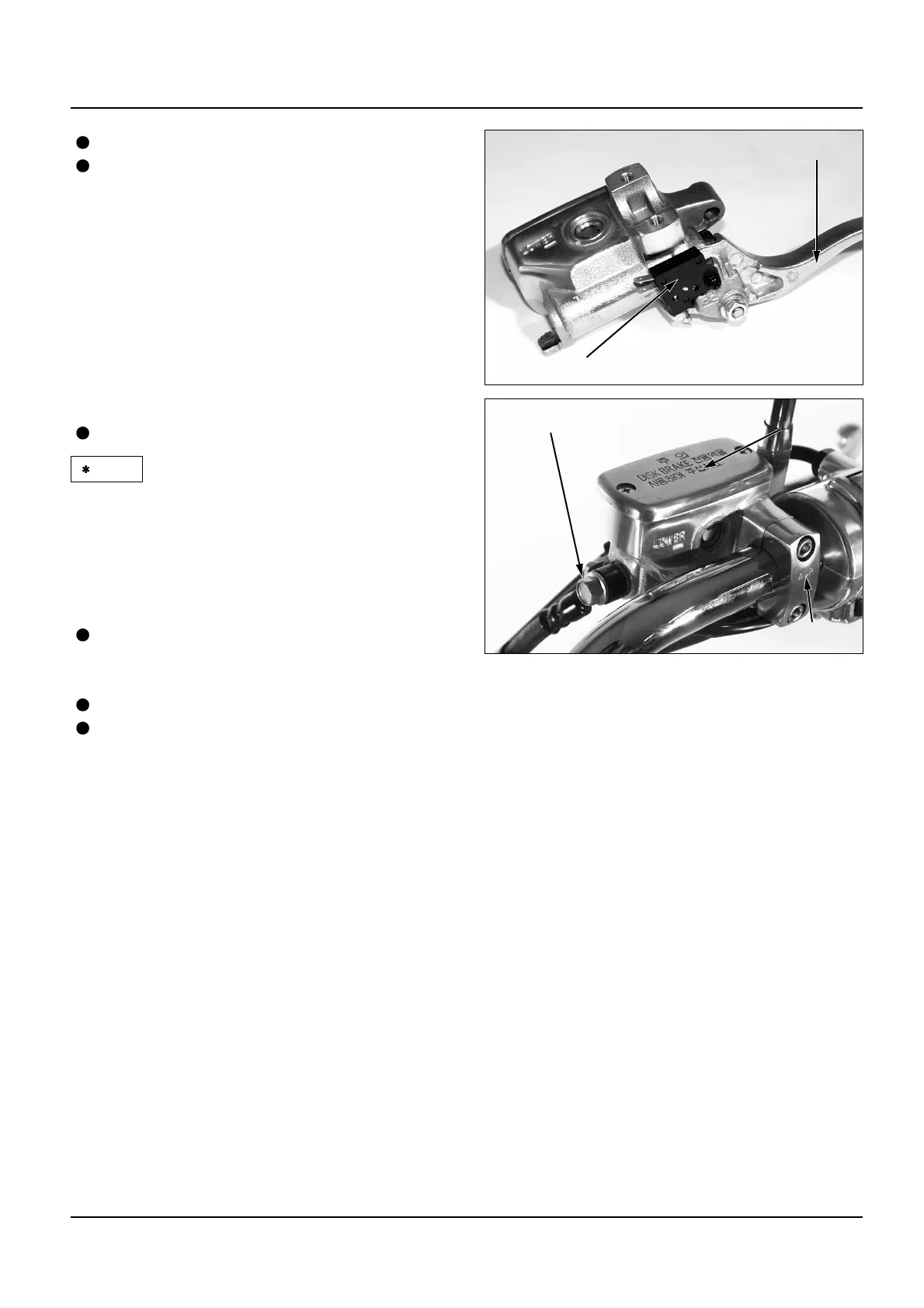

Installation
Place the master cylinder into the handle bar.
•
Install the holder with the “UP” mark facing up.
Align the end of master cylinder with the
punch mark on the handle bar.
• Tighten the upper bolt first, then tighten the
lower bolt.
Install the brake hose to the master cylinder
with the hose bolt and two sealing washers.
Torque: 3.4kgf-m
Connect the stop switch wires to the switch.
Fill and bleed the front brake hydraulic system.
Install the boot into master cylinder.
Install the rear mirror, brake lever and stop
switch.
Torque: Brake Lever Pivot Bolt
1.0kgf-m
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master CylinderMaster Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Master Cylinder
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose BoltBrake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
Brake Hose Bolt
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
“UP” Mark
NOTE
Brake Lever
Brake Lever
Brake Lever
Brake Lever
Brake Lever
Brake LeverBrake Lever
Brake Lever
Brake Lever
Brake Lever
Brake Lever
Brake Lever
Brake Lever
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right SwitchBrake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch
Brake Right Switch

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
