Charging System/Battery
Regulator/Rectifier
Inspection of the harness circuit

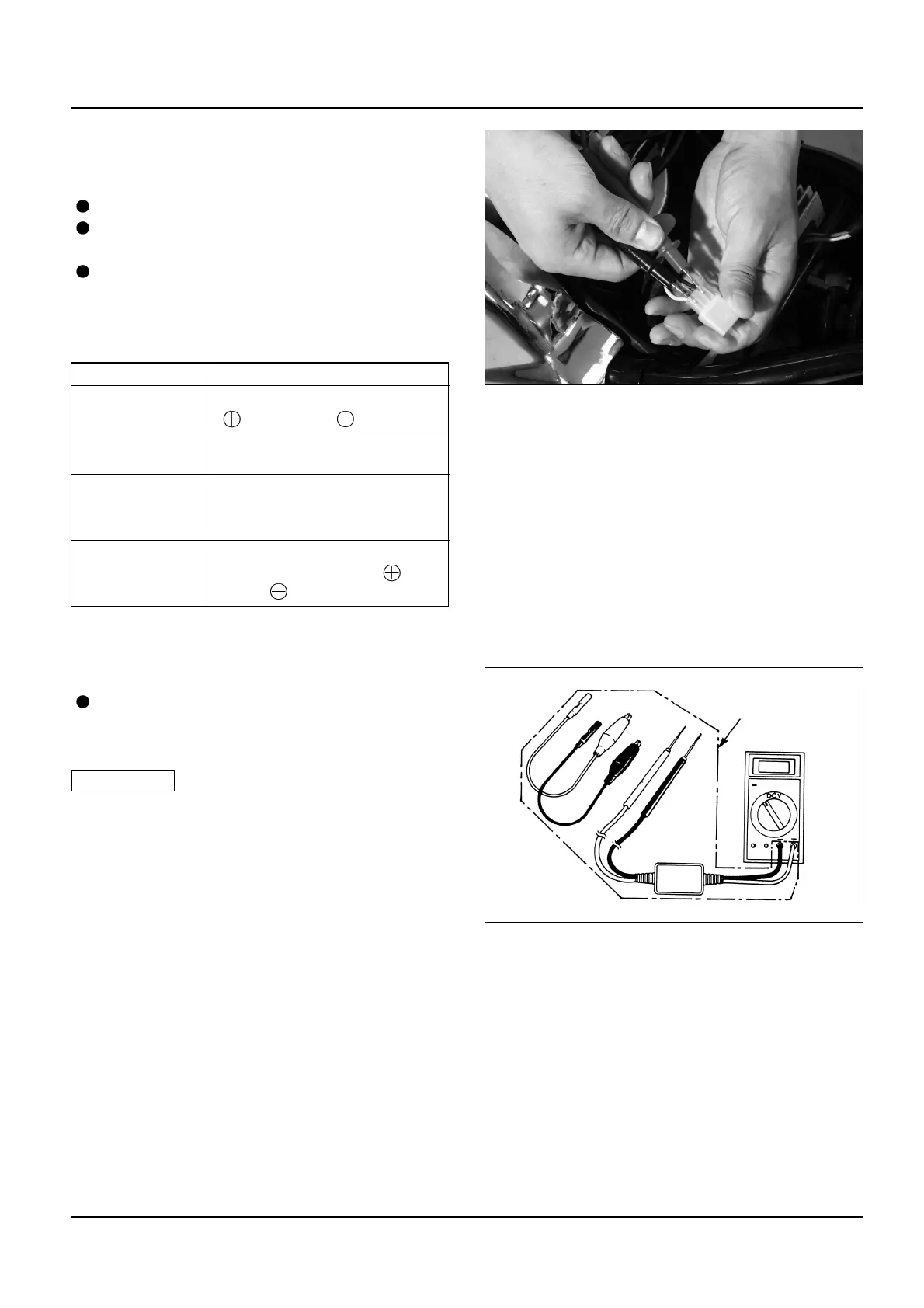

Remove the left front side cover.
Disconnect the voltage regulator / rectifier
coupler.
Check for continuity between each terminal
and ground.
Inspection
Regulator/Rectifier Inspection
If there is no problem in the starter inspection.
check the regulator/rectifier coupler. Measure
the resistance between the connector terminals.
• If the fingers reach to the metal part of tester
handle during the inspection, the resistance of
the human body is indicated. Therefore, be
careful of that
• Must inspect using the defined tester as the
below. If being inspected by different tester,
can not be inspected exactly because strange
resistance value is indicated.
• Measure the resistance using the DAELIM
PVA multi-tester.
- PVA multi-tester
Item Probe
Battery(Red)
Continuity between red
and ground
Ground lead Continuity between green
(Green) and ground
Charging coil
Yellow-yellow standard
lead(Yellow)
resistance, no continuity
between yellow and ground.
Voltage detection
When the main switch is
lead(Black)
“ON” between black and
green , there is continuity.
!
CAUTION
△
PVA Adapter
To Next Page
