2-4
Lubrication

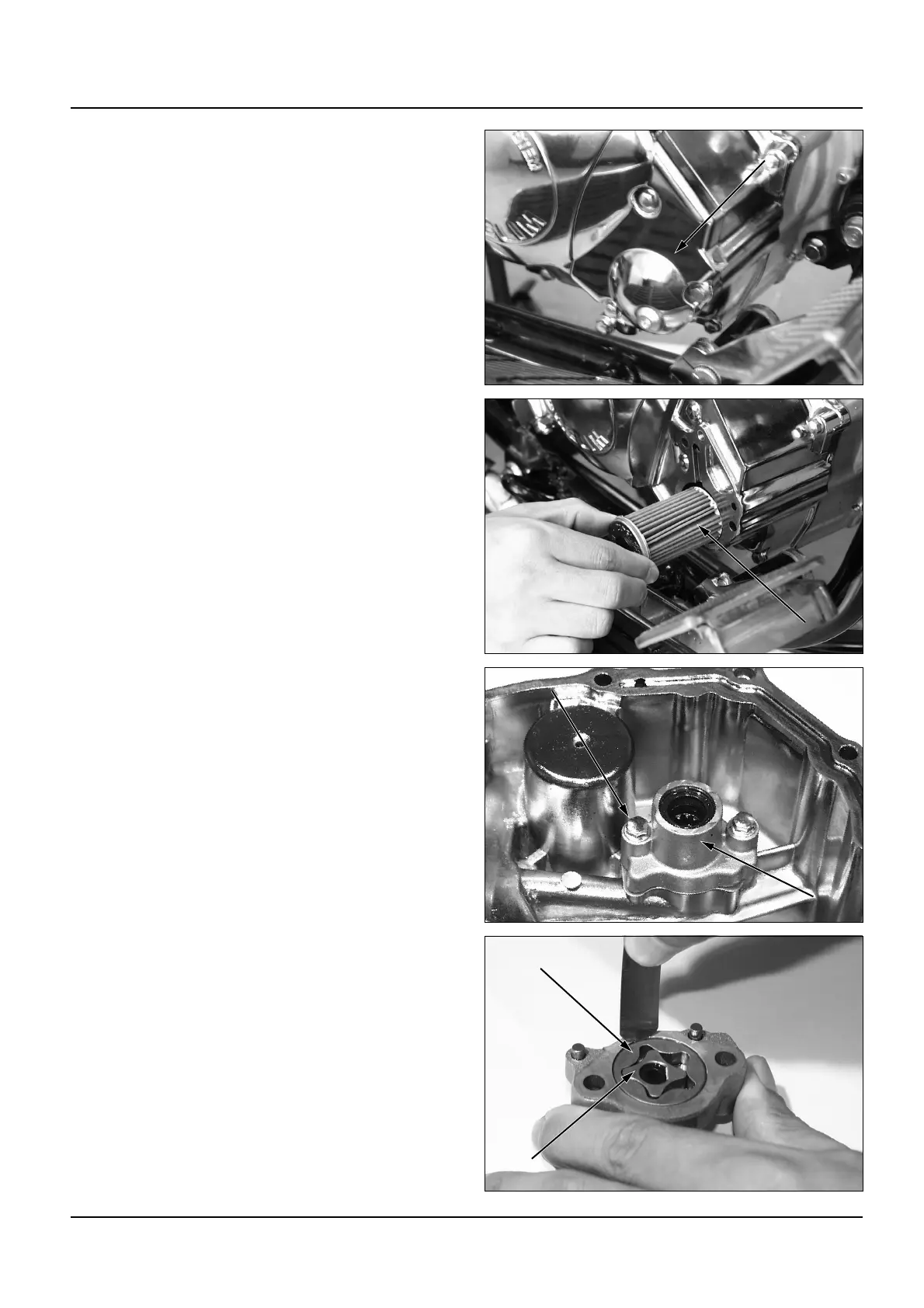

Engine Oil Filter Element Change
Remove the drain plug and drain the oil. (2-3)
Remove the oil filter cover bolt, filter cover,
filter element and spring.
Replace the oil filter element with a new oil
filter.
Check the operation of the relief valve.
If the relief valve is fully opened when released,
it is in good condition.
Check if the oil filter seal is in good condition.
Install the filter element spring and filter cover,
and tighten the socket bolt.
Torque
Oil filter cover : 1.1kgf-m(11N.m)
Oval screw : 1.2kgf-m(12N.m)
Oil Pump
Removal
Remove the right crank case cover. (6-3)
Remove the oil pump mounting bolts, oil
pump, pump plate, and lock pin.
Clean the oil pump body, inner and outer
rotors with cleaning solvent.
Inspection
Install the inner and outer rotor into the oil
pump body.
Measure the pump body clearance.
Service Limit : 0.25mm(0.010 in)
