DAELIM DAYSTAR Service Manual

18-4
Electric Starter
Assembly
When removing the shim, install it by
recorded order.
Install the lock washer.
Align the groove of front cover with the pin of
brush holder and install them.
Insert the armature into the brush holder center
with driving each brush into the brush holder
inside.
Install the holder into the case aligning the
projecting part of brush holder with the part
of case.

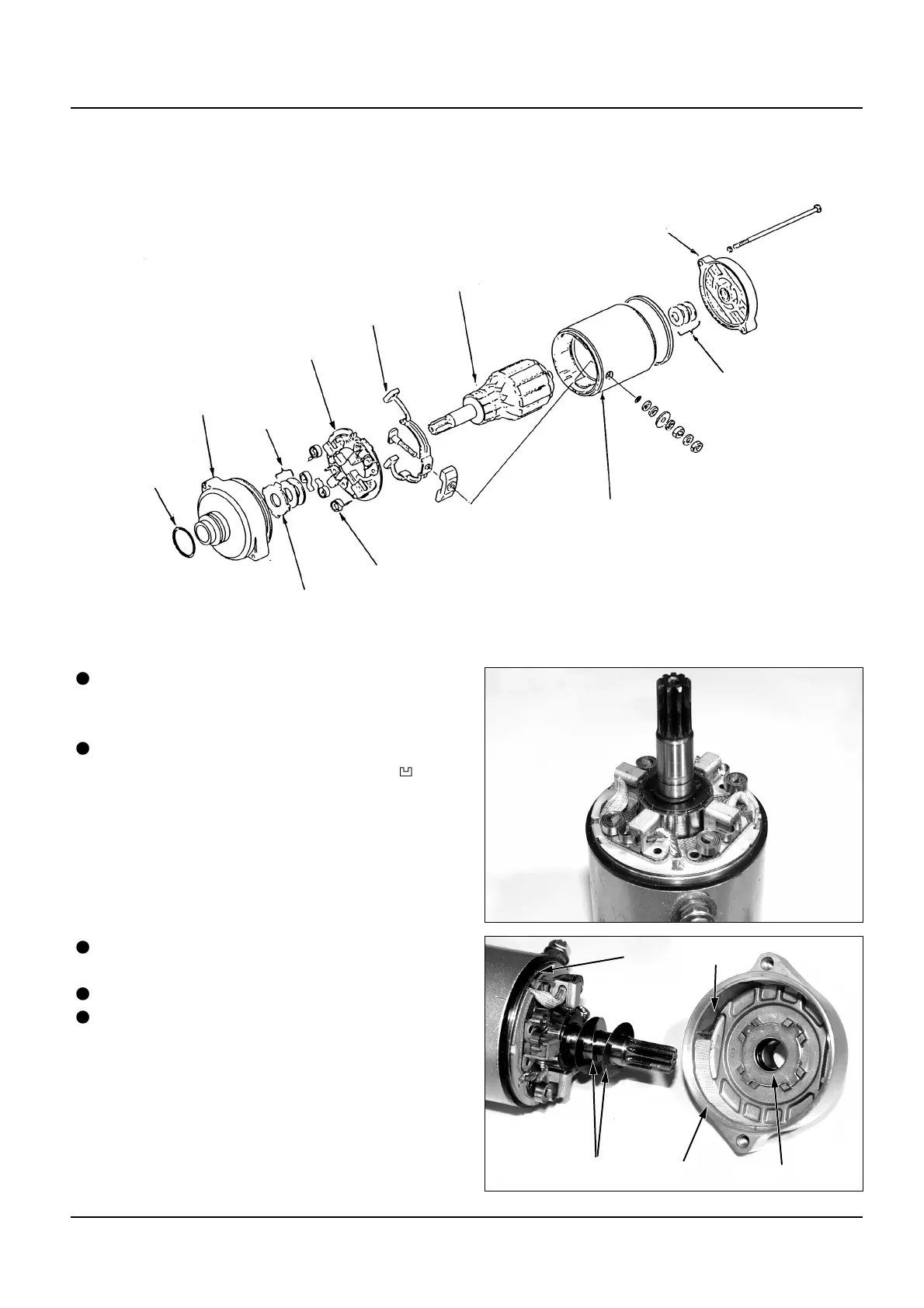

Rear Cover
Armature
Brush
Brush Holder
Front Cover
Shim
O-Ring
Lock Washer
Brush Spring
Motor Case
Shim
Pin
Pin
Pin
Pin
Pin
PinPin
Pin
Pin
Pin
Pin
Pin
Pin

Part

Part

Part

Part

Part

Part

Part

Part

Part

Part

Part

Part

Part
Lock Washer
Front Cover
Shim
