DAELIM DAYSTAR Service Manual

18-6
Electric Starter

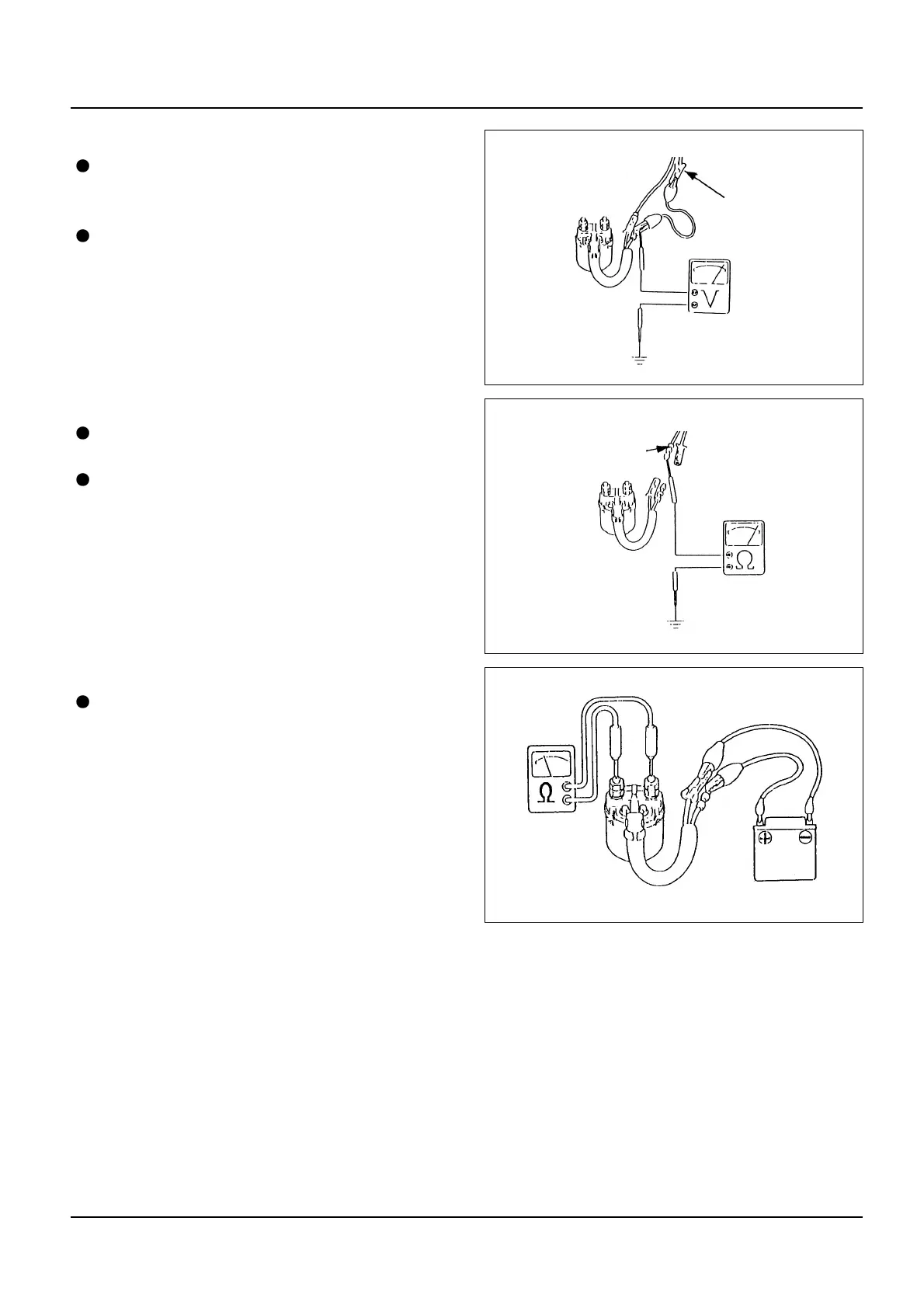

Operation Inspection
Disconnect the wire connector of the magnetic
switch. Connect the positive wire to the
yellow/red wire terminal and the negative wire
to the green/red wire terminal and shown.
There should be continuity.
Ground Circuit Inspection
Disconnect the green/red wire connector of the
starter magnetic switch.
There should be continuity between the starter
magnetic wire terminals at the harness side
and ground.
Voltage Inspection
Measure the voltage between the yellow/red
wire ⊕ of the starter magnetic switch and
ground.
Turn the main switch “ON”. There should be
battery voltage while the starter switch is
depressed.
Yellow/Red Wire
Green/Red Wire

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
