DAELIM DAYSTAR Service Manual

2-6
Lubrication

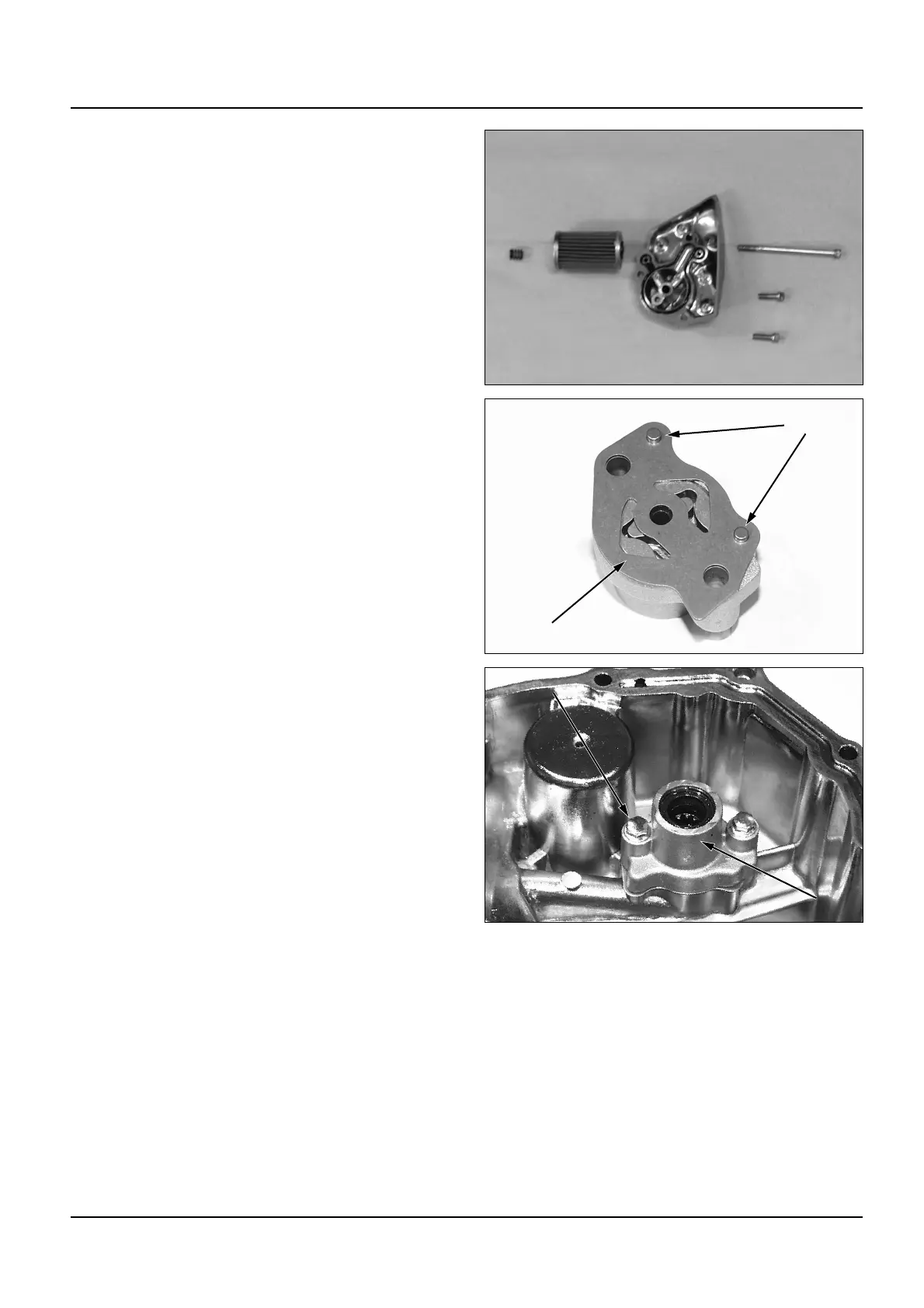

 Remove the oval screw, sealing washer, spring
and relief valve from oil filter cover.
 Remove the oil filter element from R. crank
case cover.
 Blow the oil path way of crank case cover with
compressed air, and clean.
Torque
Oil filter cover : 1.1kgf-m(11N.m)
Oval screw: 1.2kgf-m(12N.m)
 Install the dowel pins and oil pump plate into
the pump body.
 Install the oil pump into the right crank case
cover and tighten the bolt.
Torque : 1.1kgf-m(11N.m, 8ft-lb)
