Engine Removal / Installation
Engine Installation
Engine installation is essentially the reverse order
of removal.
• Carefully align mounting points with the jack
to prevent damage from mounting bolt threads
and wire harness and cables.
• Be careful not to damage any part of the frame
and bolt nuts.
• Be sure to install the cables, tubes, and wires
to their correct positions(⇨ 1-11~13).

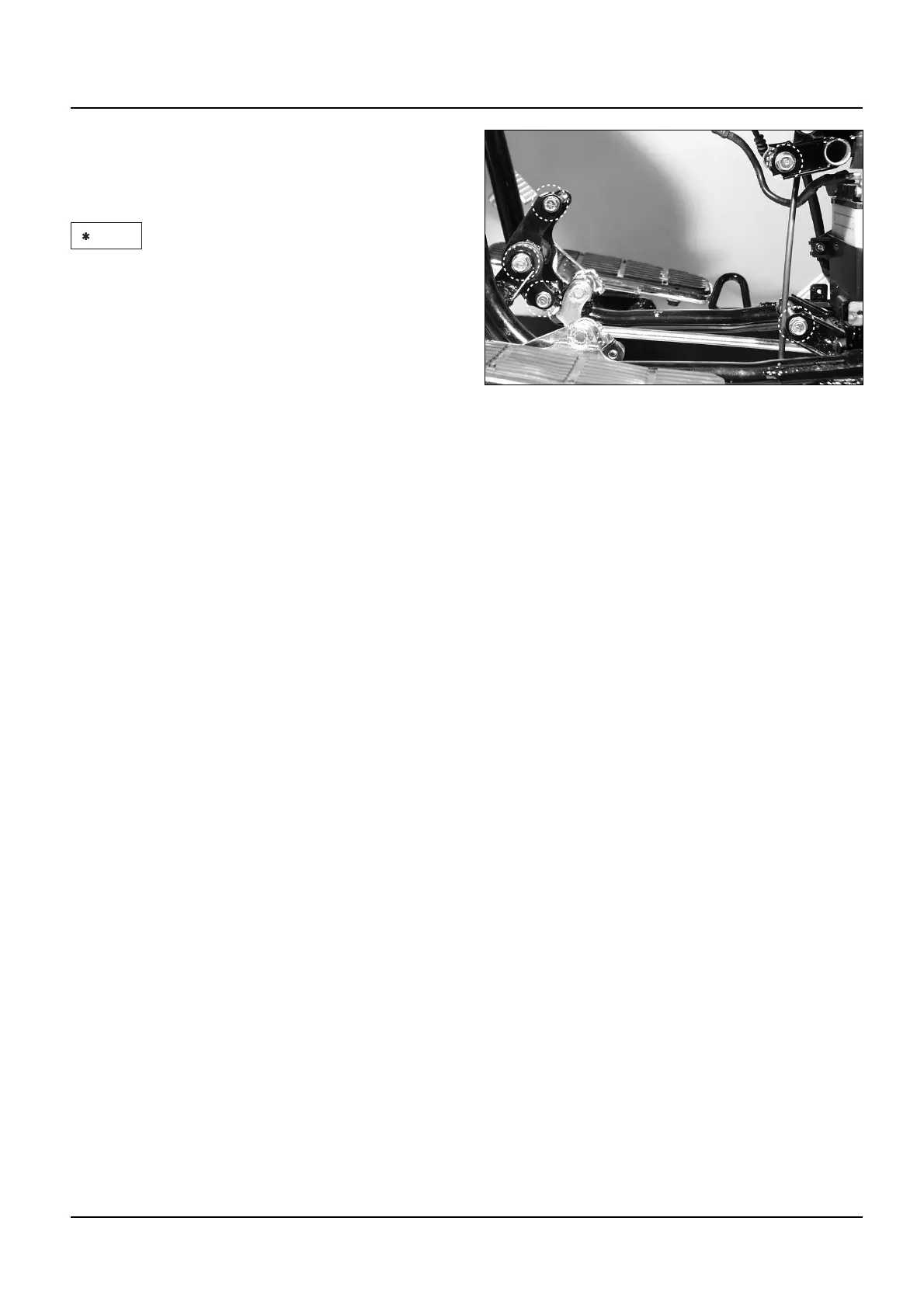

Torque
Engine hanger bolts:
(Front 1) 2.7kgf-m(27N.m)
(Front 1, Rear 2) 4.9kgf-m(49N.m)
Gear change arm bolt 1.2kgf-m(12N.m)
Drive sprocket bolt 1.2kgf-m(12N.m)
● Inspect the following after installing the
engine.
- Engine oil
- Throttle glip operation
- Clutch lever operation
- Drive chain
NOTE
