DAELIM DAYSTAR Service Manual

5-3

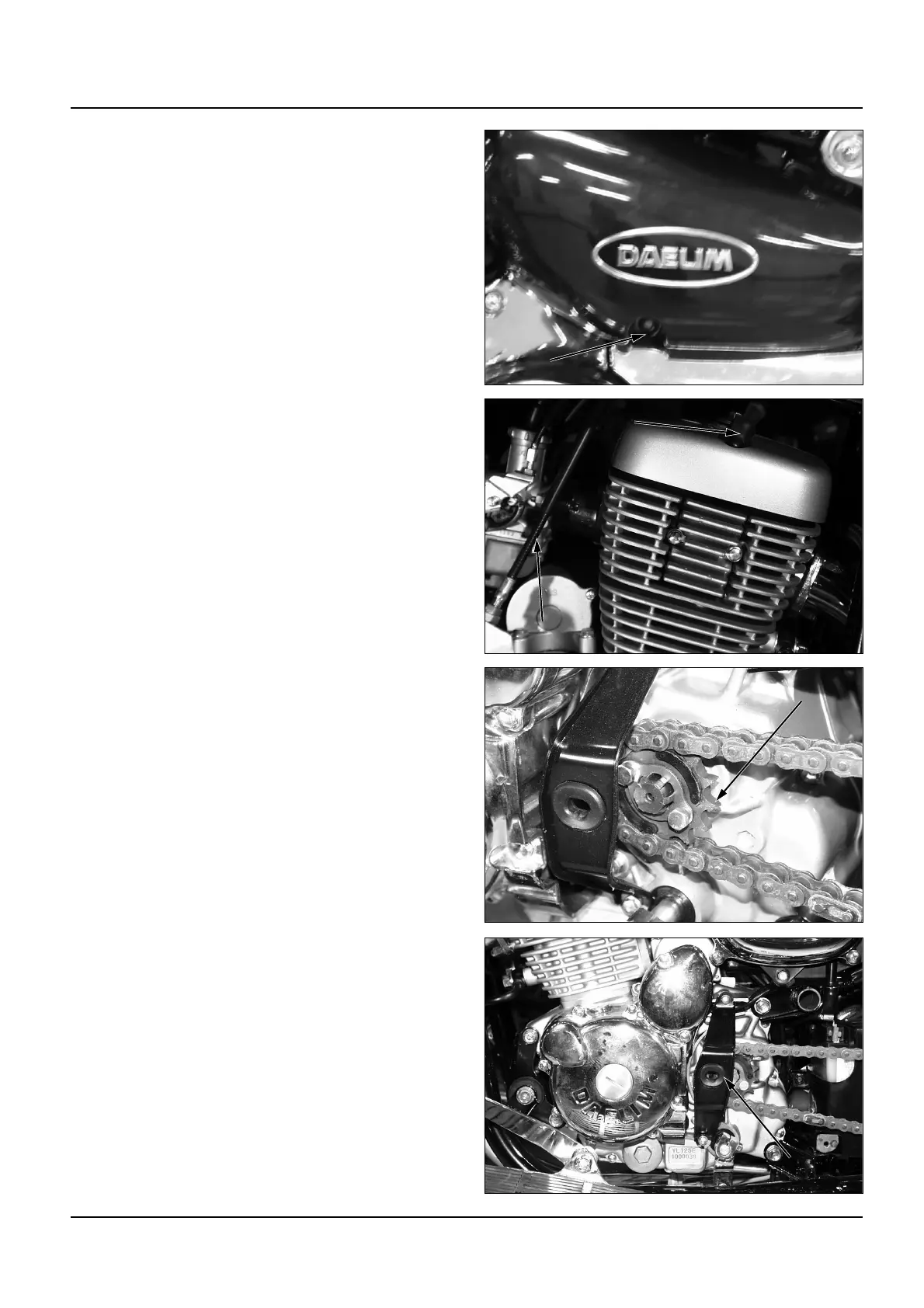

Engine Removal / Installation
Engine Removal
● Drain the engine oil.(⇨2-3)
● Remove the following
- Side cover(⇨ 12-2)
- Seat(⇨ 12-2)
- Fuel tank(⇨ 4-3)
- Mufflers(⇨ 12-3)
● Disconnect the connector of the starter motor
cable, AC generator wire, gear change switch
wire.
● Remove the battery negative cable, clutch cable,
high tension code. Remove the carburetor.
● Remove the gear change pedal, L. rear cover
drive sprocket cover.
● Remove the rear axle nut, drive chain adjuster.
● Remove the drive sprocket after pushing the
rear wheel forward.
● Remove the front engine hanger bolt, engine
hanger bracket.
● Remove the rear engine hanger bolt.
