DAELIM DAYSTAR Service Manual

6-3
Clutch, Gearshift

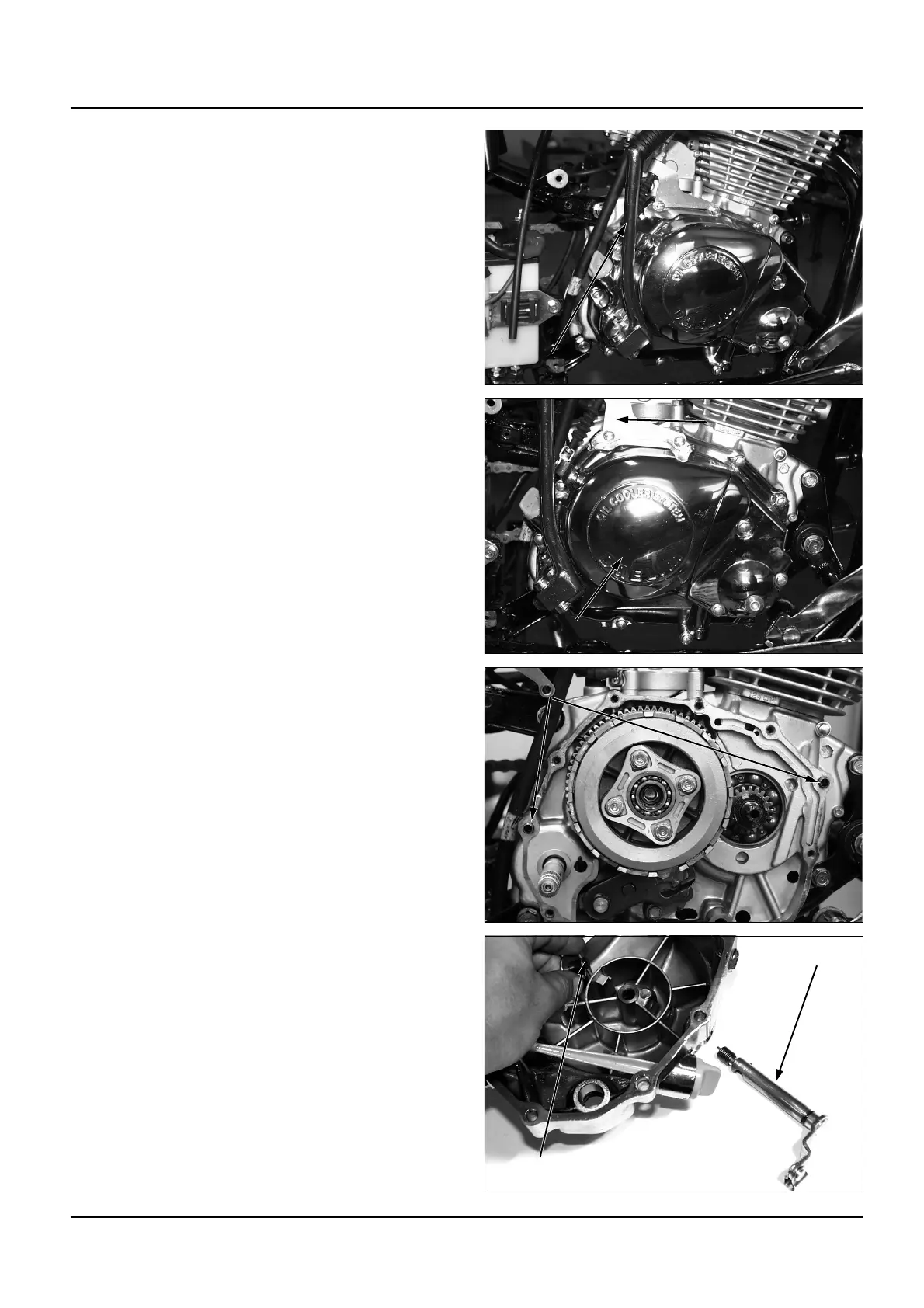

R. Crankcase Cover
Disassembly
● Drain the engine oil(⇨ 2-3)
● Remove the kick starter pedal.
● Remove the clutch adjusting lock nut and
adjusting nut. Separate the clutch cable from
the clutch arm.
● Remove the cable out of the cable holder.
● Remove the right crank case cover bolt and
remove the cover.
● Remove the dowel pins and gasket.
Clutch Arm/Lift Shaft Removal
● Remove the lifter rod, and separate the clutch
arm/lift Shaft and clutch arm spring from the
R. crank case cover.
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter PedalKick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Kick Starter Pedal
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case CoverRight Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Right Crank Case Cover
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel PinDowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Dowel Pin
Clutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Clutch ArmClutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Clutch Arm
Lift Rod
Lift Rod
Lift Rod
Lift Rod
Lift Rod
Lift RodLift Rod
Lift Rod
Lift Rod
Lift Rod
Lift Rod
Lift Rod
Lifter Rod
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable HolderClutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder
Clutch Cable Holder

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
