DAELIM DAYSTAR Service Manual

6-5
Clutch, Gearshift

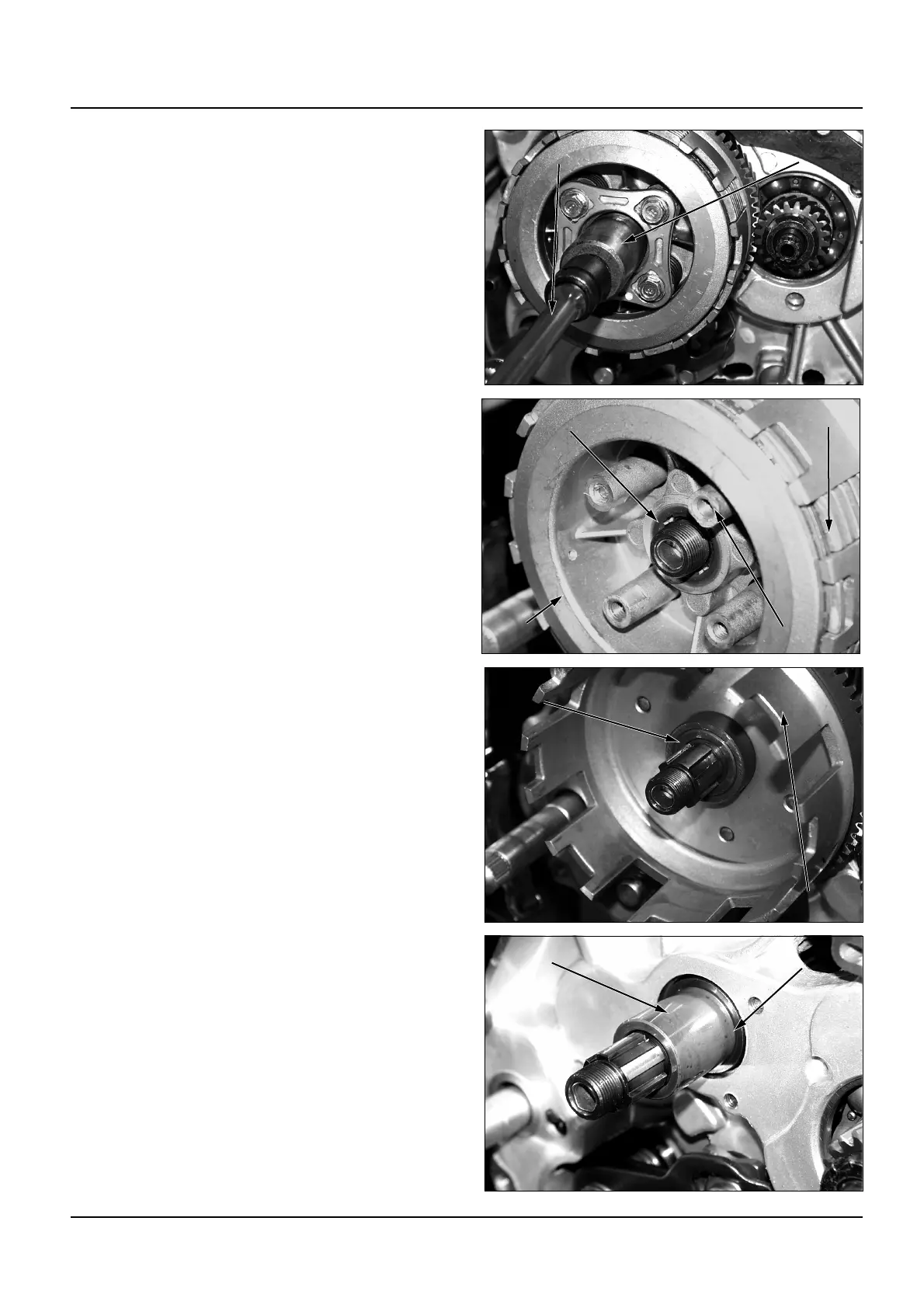

● Press the clutch center using the clutch center
holder and remove the clutch lock nut.
Tools:
Clutch Center Holder
Lock Nut Wrench, 20×24mm
Extension Bar
● Remove the lock washer.
● Remove the clutch center, disk, plate, and
pressure plate.
● Remove the spline washer and clutch outer.
● Remove the clutch outer guide and thrust
washer.
