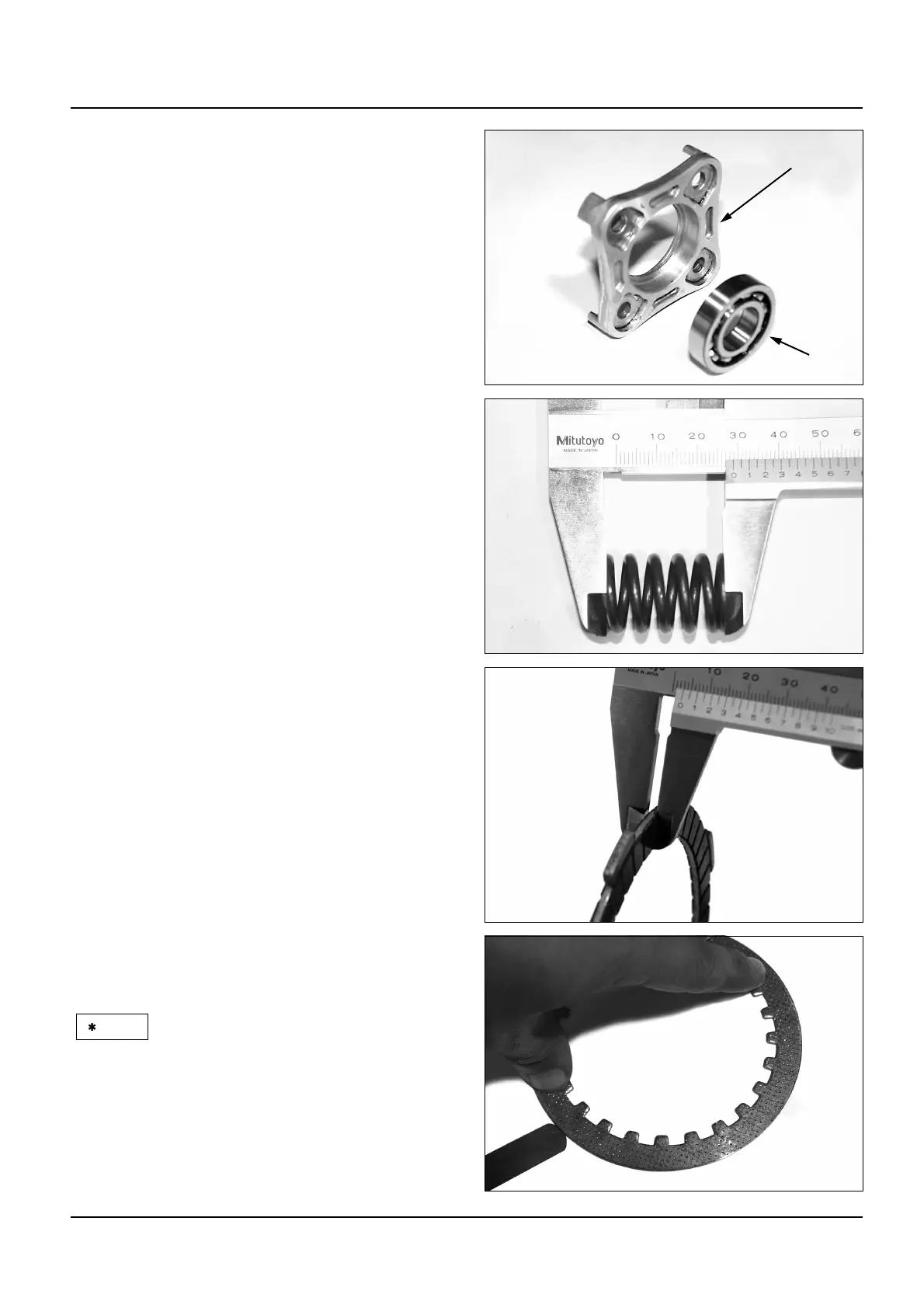

6-6
Clutch, Gearshift
Inspection
Inspect the lifter plate bearing for scoring and
other damage.
Inspect the lifter plate for damage.
If necessary, replace them.
Measure the clutch spring free height.
Service Limit:34.2mm(1.35in)
Check the clutch disk. If necessary, replace it.
Measure the disk amplitude.
Service Limit: 2.6mm(0.10 in)
Check the plate for warpage on a surface plate,
using a feeler gauge.
Service Limit: 0.2mm(0.01 in)
If any of the disk and plate requires replacement,
it must be replaced as a set.
NOTE
Lifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Lifter PlateLifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Lifter Plate
Bearing
Bearing
Bearing
Bearing
Bearing
BearingBearing
Bearing
Bearing
Bearing
Bearing
Bearing
Bearing
