Clutch, Gearshift

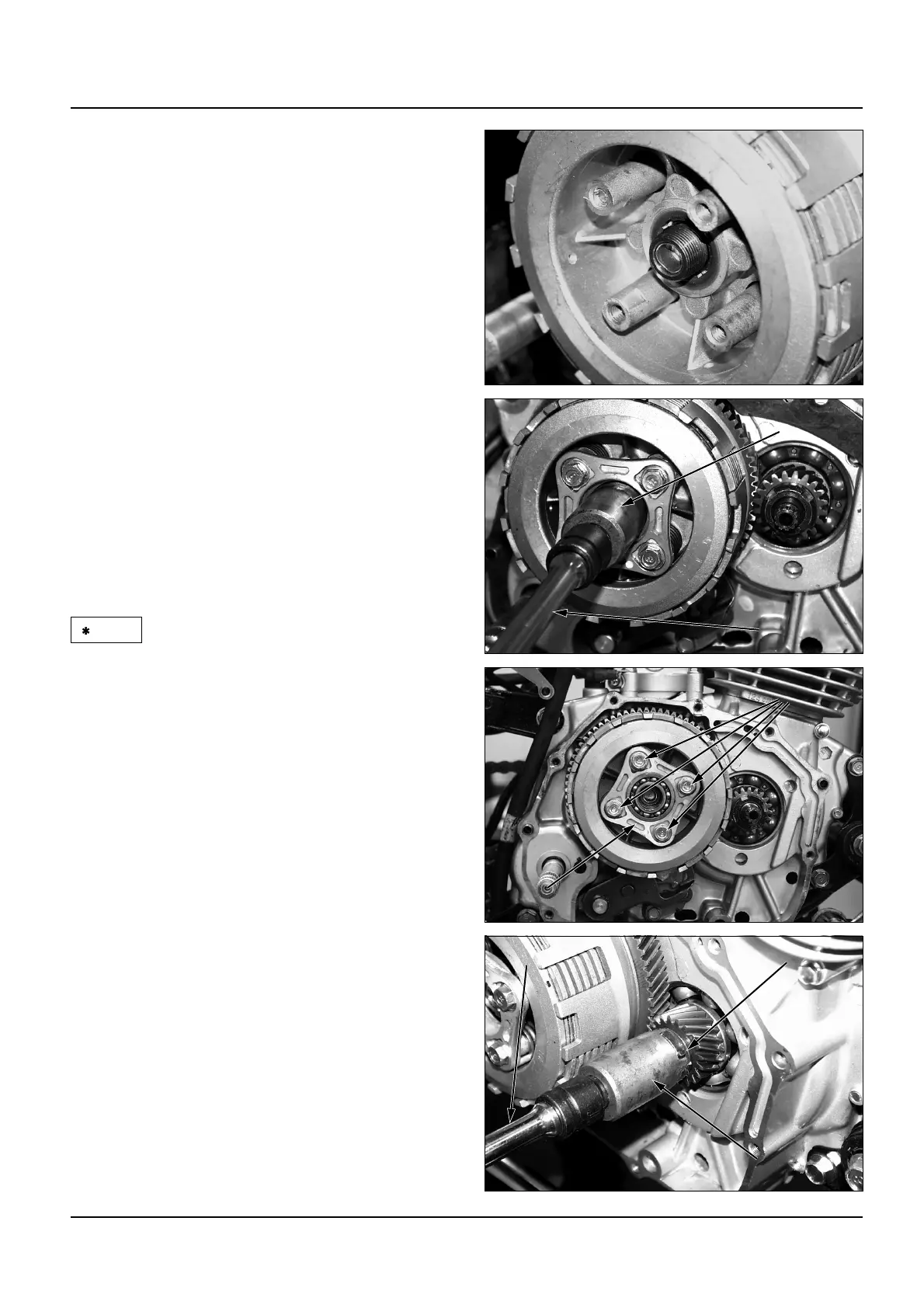

● Install the lock nut by pressing clutch center

into the clutch center holder.

Torque : 6.5kgf-m (65N.m)

Tools:

Clutch center holder

Lock nut wrench, 20×24mm

Extension bar

● Install the clutch spring, lifter plate and clutch

spring bolt diagonally several times.

• Check if the pressure plate press the disc, and

plate exactly.

Primary Drive Gear

Removal

● Remove the crank case.

● Hold the flywheel using a flywheel holder.

● Remove the primary drive gear lock nut.

Tools:

Flywheel holder

Lock nut wrench, 20×24mm

Extension bar

● Remove the lock nut, primary drive gear, and

woodruff key.

● Install the pressure plate, disk, plate and clutch

center into the clutch outer.

● Coat the nut parts with clean engine oil, and

tighten the lock nut.

NOTE

Clutch Spring Bolt

Clutch Spring BoltClutch Spring Bolt

Clutch Spring Bolt

Lifter Plate

Lifter PlateLifter Plate

Lifter Plate

Extension Bar

Extension BarExtension Bar

Extension Bar

Lock Nut

Lock NutLock Nut

Lock Nut

Lock Nut Wrinch 20X24mm

Lock Nut Wrinch 20X24mmLock Nut Wrinch 20X24mm

Lock Nut Wrinch 20X24mm

Lock Nut Wrench

Lock Nut WrenchLock Nut Wrench

Lock Nut Wrench

Extension Bar

Extension BarExtension Bar

Extension Bar

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers

DAELIM DAYSTAR Service Manual
