DAELIM DAYSTAR Service Manual

7-3

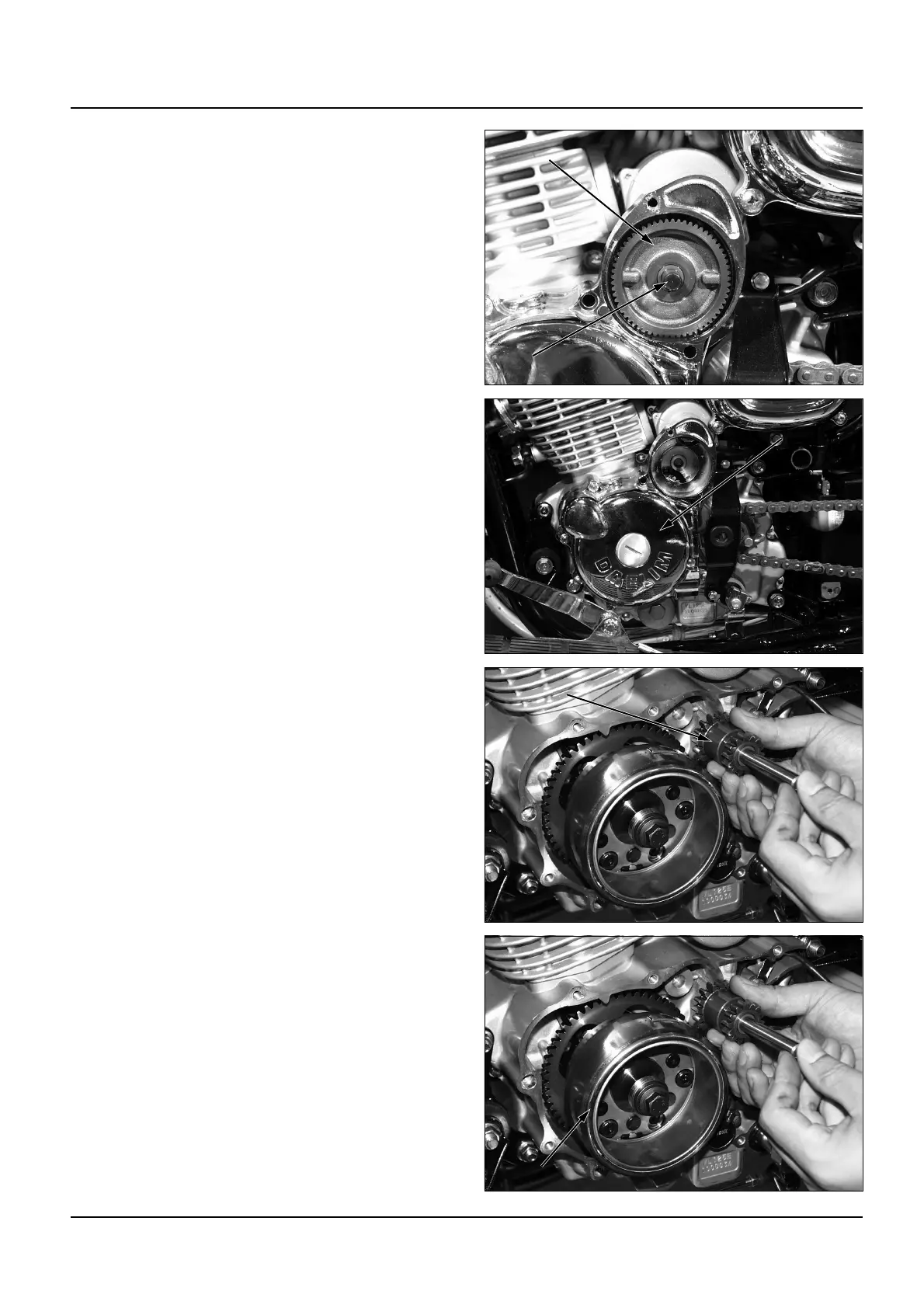

A.C Generator / Starter Clutch
● Remove the starter reduction gear shaft and
starter reduction gear.
● Loosen the left crank case cover adjusting bolt
and remove the left crank cover. Remove the
gasket and the dowel pins.
● Remove the starter idle gear shaft and starter
idle gear.
● Hold the flywheel rotor with a holder and
remove the rotor bolt.
Tool: Flywheel holder
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction GearStarter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Starter Reduction Gear
Shaft
Shaft
Shaft
Shaft
Shaft
ShaftShaft
Shaft
Shaft
Shaft
Shaft
Shaft
Shaft
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case CoverL. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
L. Clank Case Cover
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle GearStarter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Starter Idle Gear
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel RotorFlywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor
Flywheel Rotor

DAELIM DAYSTAR Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Engine Type	4-Stroke, Air-cooled
Displacement	124 cc
Transmission	5-speed
Fuel Capacity	12.5 liters
Weight	125 kg
Rear Suspension	Dual shock absorbers
