A.C Generator / Starter Clutch

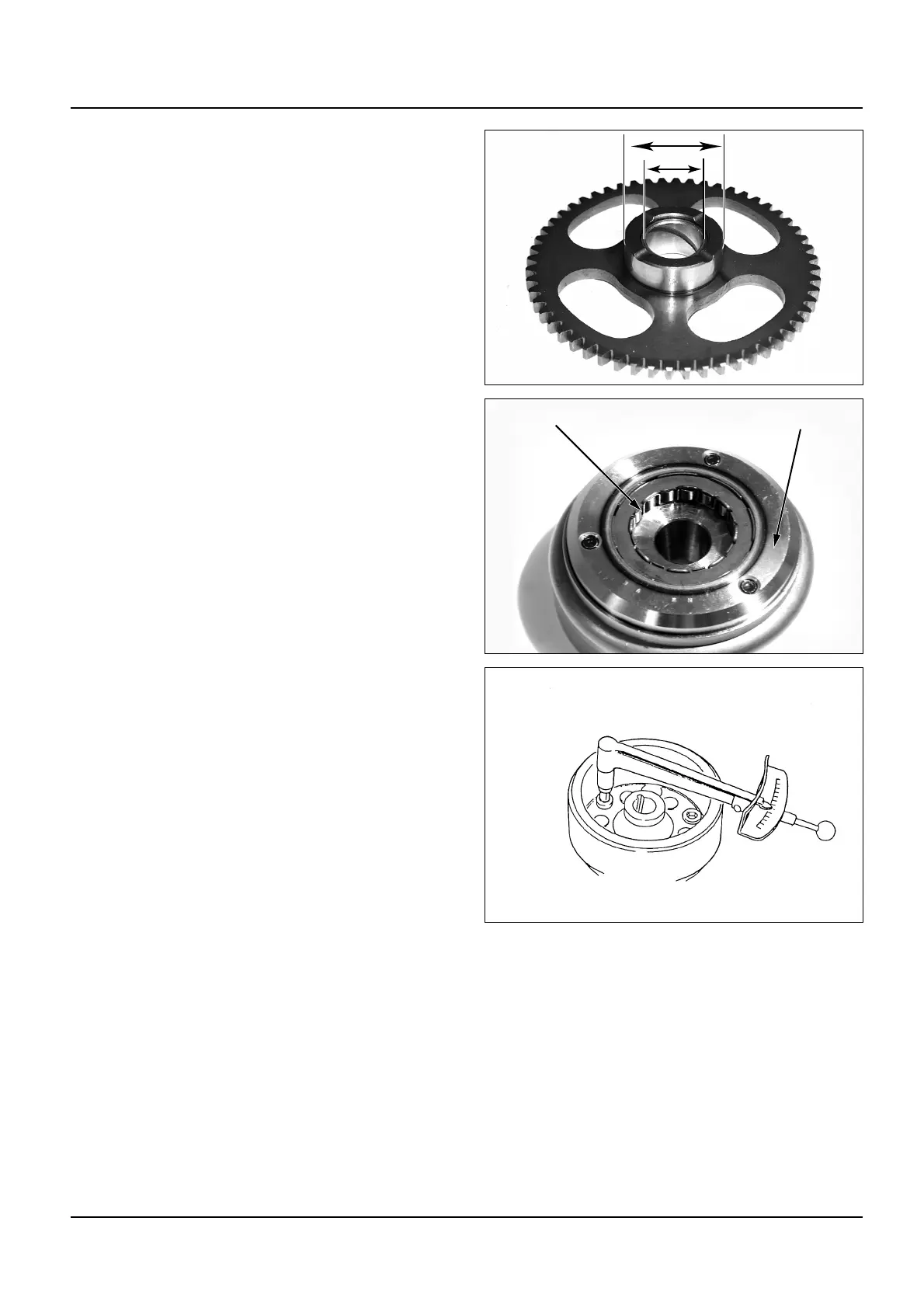

● Check the starter driven gear for damage and
wear.
● Measure the driven gear I.D. and O.D.
Service Limit:
O.D. : 42.180mm(1.658in)
I.D. : 22.100mm(0.870in)
Assembly
● Inspect the one way clutch for wear and
damage.
● Install the way clutch fringe onto the clutch
outer.
● After coating the socket bolt with the nut
locking bond, install it.
Torque : 3.2kgf-m(32N.m)
Clutch Outer
Flange Part
To Next Page
