Operating
VTO
40
Registrati
on

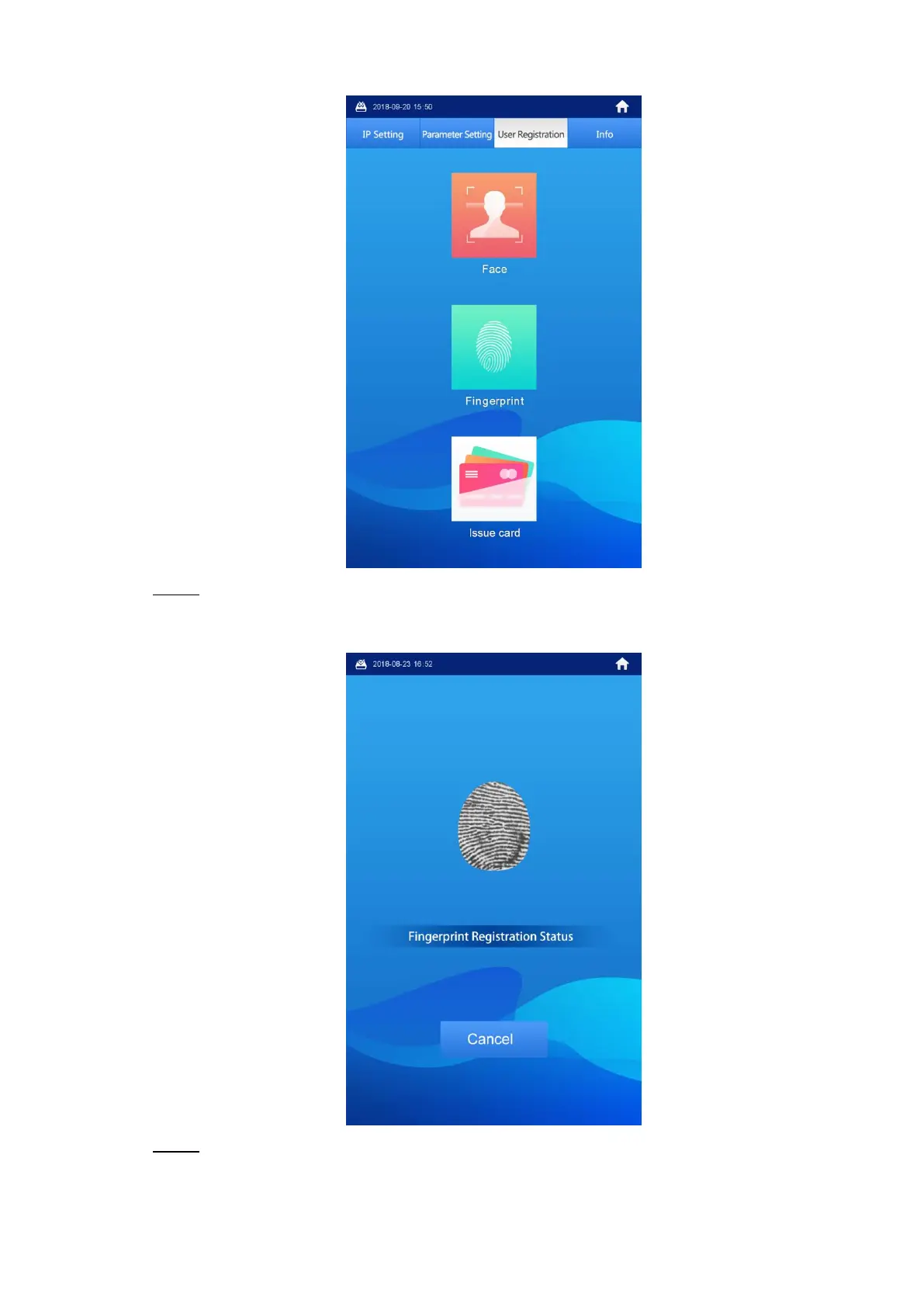

Figure 6-
15
Select
Finger
print >
Add Fingerpri
nt
.
Step 3
The fingerpr
int recognition interfa
ce is displayed.
S
ee Figure 6-1
6.
Fingerpr
i
nt recognit
ion
Fig
ure 6-
16
T
ap the f
ingerprint
sensor as instructed.
Step 4
After
the
registrati
on
finished,
the
information
registrat
ion
interface
is
displayed.
See
Figure 6-
17
.
49
51
Table of Contents
Cybersecurity Recommendations
2
Regulatory Information
4
Foreword
5
Important Safeguards and Warnings
7
1 Introduction
11
1.1 General
11
1.2 Features
11
2 Appearance
13
2.1 Dimension
13
2.2 Front Panel
13
2.3 Rear Panel
15
2.3.1 Door Lock Port
16
2.3.2 RS485 Port
17
2.3.3 Wiegand Port
17
2.3.4 Alarm-in Port
18
2.3.5 Alarm-out Port
18
3 Network Diagram
20
4 Installing the VTO
21
4.1 Installation Requirement
21
4.2 Connecting Cable
21
4.3 Attaching the VTO
21
5 Configuring Devices
23
5.1 Configuration
23
5.1.1 Configuring VTO
23
5.1.1.1 Initializing VTO
23
5.1.1.2 Modifying VTO IP Address
25
5.1.1.3 LAN Config
26
5.1.1.4 Configuring SIP Server
26
5.1.1.5 Adding VTO
28
5.1.1.6 Adding VTH
29
5.1.2 Configuring VTH
30
5.1.2.1 Initializing VTH
30
5.1.2.2 Configuring VTH Network
31
5.1.2.3 VTH Config
33
5.1.2.4 Configuring SIP Server
34
5.1.2.5 VTO Config
35
5.2 Verifying Configuration
36
5.2.1 Calling VTH from VTO
36
5.2.2 Doing monitor from VTH
37
6 Operating VTO
39
6.1 Main interface
39
6.2 Call Function
40
6.2.1 Calling VTH
40
6.2.2 Calling Property (management center)
41
6.3 Unlocking Method
43
6.3.1 Face Unlock
43
6.3.2 Fingerprint Unlock
44
6.3.3 Password Unlock
44
6.3.4 Access Card Unlock
44
6.3.5 VTH Unlock
44
6.3.6 Management Center Unlock
44
6.4 Registration
44
6.4.1 Face Registration
45
6.4.1.1 Face Registration by VTO Users
45
6.4.1.2 Face Registration by Admin People
47
6.4.2 Fingerprint Registration
49
6.4.2.1 Fingerprint Registration by VTO Users
49
6.4.2.2 Fingerprint Registration by Admin People
51
6.4.3 Issuing Card
53
6.4.3.1 Issuing Card by Password
53
6.4.3.2 Issuing Card by Master Card
54
6.5 Viewing Function
56
6.5.1 Viewing Face Data
56
6.5.1.1 Viewing by VTO Users
56
6.5.1.2 Viewing by Admin People
58
6.5.2 Viewing Fingerprint
59
6.5.2.1 Viewing by VTO Users
59
6.5.2.2 Viewing by Admin People
61
6.5.3 Viewing Card Information
63
6.6 Configuring VTO Parameter
63
6.6.1 Engineering Interface
63
6.6.2 Configuring the IP Address
64
6.6.3 Configuring Volume/Screensaver Time/Brightness
65
6.7 Info
66
6.7.1 Viewing Device Information
66
6.7.2 Viewing Notices
67
7 Web Interface
68
7.1 Initializing VTO
68
7.2 Login
69
7.3 System Config
70
7.3.1 Local Config
70
7.3.2 A&C Manager
71
7.3.3 Talk Manager
72
7.3.4 System Time
73
7.3.5 Config Manager
74
7.3.6 Wiegand
75
7.4 LAN Config
75
7.4.1 LAN Config
75
7.4.2 Residence Config
76
7.5 Device Manager
77
7.5.1 Outdoor Station Manager
77
7.5.1.1 Adding VTO
78
7.5.1.2 Modifying VTO
78
7.5.1.3 Deleting VTO
79
7.5.2 8001-Indoor Station Manager
79
7.5.2.1 Adding VTH
79
7.5.2.2 Modifying VTH
80
7.5.2.3 Deleting VTH
80
7.5.3 Card Info
80
7.5.3.1 Setting Master Card
81
7.5.3.2 Report Loss
81
7.5.3.3 Modifying Card
81
7.5.3.4 Deleting Card
81
7.5.4 Config Manager
81
7.6 Network Config
82
7.6.1 TCP/IP
82
7.6.2 FTP Config
83
7.6.3 SIP Server Config
84
7.6.4 Port Config
85
7.6.5 DDNS Config
85
7.7 Video Set
86
7.7.1 Video Set
86
7.7.2 Audio Set
88
7.8 User Manager
88
7.8.1 Add User
88
7.8.2 Modifying User
89
7.8.2.1 Modify Admin User
89
7.8.2.2 Modifying Normal User
90
7.8.3 Deleting User
91
7.9 IP Purview
91
7.10 IPC Information
92
7.10.2 Adding single IPC
93
7.10.3 Import Config
94
7.10.4 Export Config
94
7.11 Publish Information
94
7.11.1 Send Info
95
7.11.2 History Info
95
7.12 UPnP Config
96
7.12.2 Enabling UPnP
96
7.12.3 Adding Service
96
7.12.4 Modifying Service
97
7.12.5 Deleting Service
98
7.13 Fingerprint Manager
98
7.13.2 Adding Fingerprint
98
7.13.3 Modifying Fingerprint
99
7.13.4 Deleting Fingerprint
99
7.13.5 Export Fingerprint
99
7.13.6 Import Fingerprint
99
7.14 Face Management
100
7.14.1 Configuring Face Recognition
100
7.14.2 Face Management
100
7.14.2.1 Importing Face Data
101
7.14.2.2 Exporting Face Data
101
7.14.2.3 Deleting Face Data
101
7.15 Info Search
101
7.15.1 Call History
101
7.15.2 Alarm Record
102
7.15.3 Unlock Record
102
7.16 Status Statistics
103
7.17 Rebooting Device
103
7.18 Logout
103
Appendix 1 Specification
105
Appendix 2 Packing List
106
