Once you select the transducer number, press the MENU/OK key on the gage. Be sure to
wipe off any couplant from the transducer face. At this point, the gage will preform an
automatic probe zero.
Note: If you get an “insert transducer” message you can try swapping the connector or
rotating the molded plug from where the cable plugs into the top of the gage. If this does
not work, the transducer likely needs to be replaced.
Keypad Functions

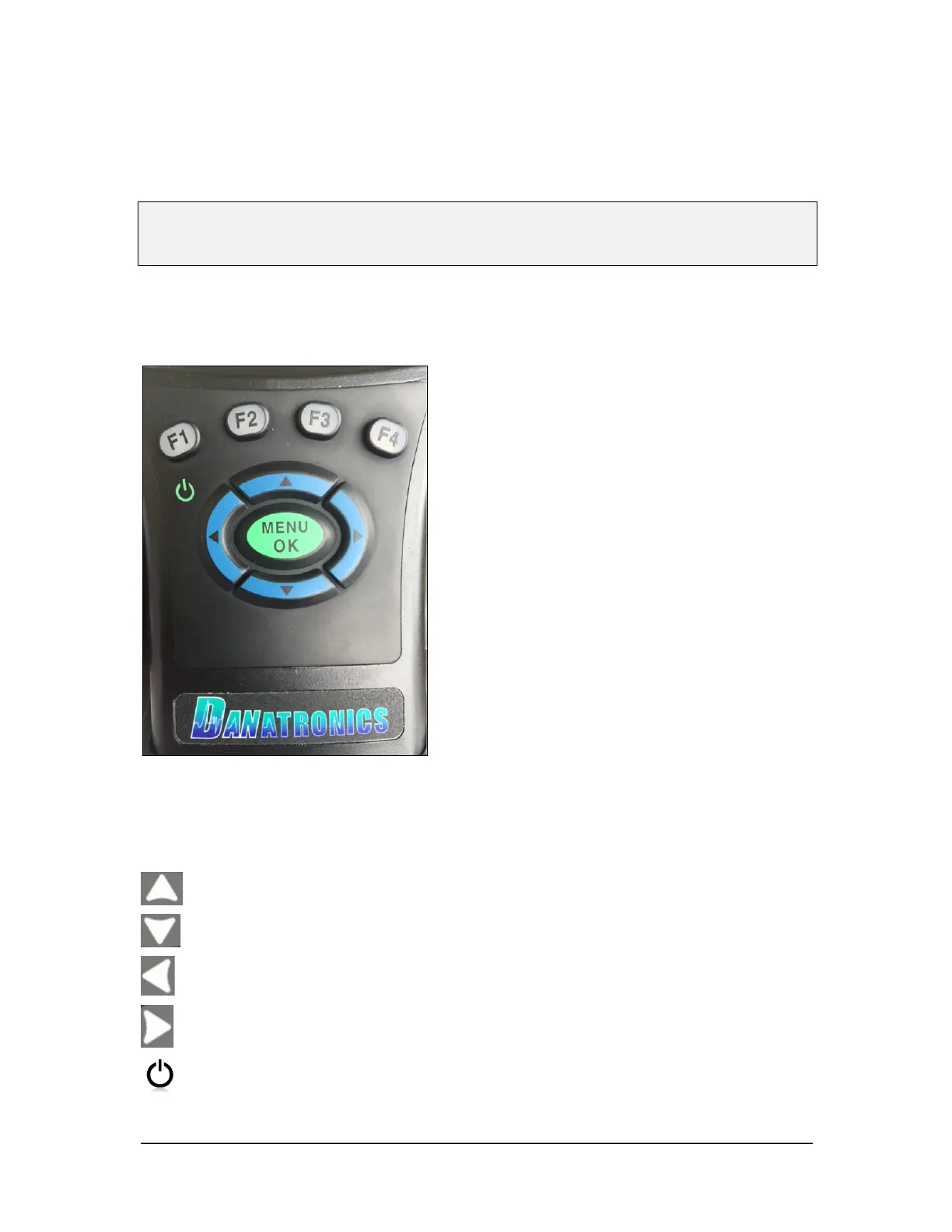

The figure below shows the full keypad layout representative of each ECHO series
thickness gage.
The following table refers to each key or symbol shown on the keypad. Note the F keys
correspond to text above each key and prompts change depending on which screen you
are adjusting.
