Danatronics, Corp.
14

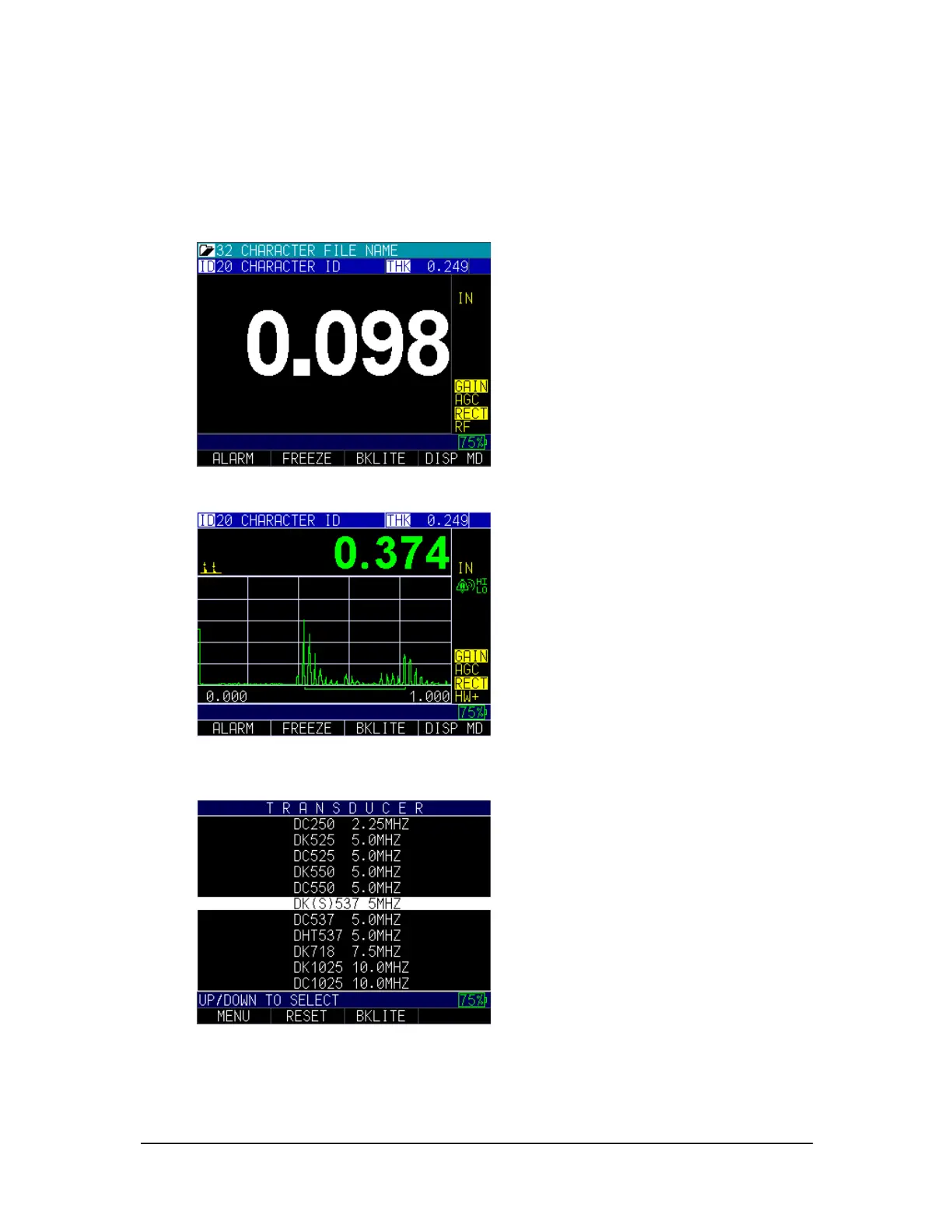

Display Screen
The gage has a graphic style color display with 320 x 240 (1/4 VGA) pixel density.
Viewing the screen is best from straight above or slightly below the surface rather than
from side to side. If external temperatures are below 32°F (0°C), the display may be
slower to update information.
Color thickness reading only on ECHO 9
Color Waveform in Echo-to-Echo mode, filename, ID, thickness value,
gain, rectification, battery life, alarm, freeze, backlight, and display mode.
Transducer screen, menu, reset, backlight
