Danatronics, Corp.
8
Stored Setups
You can store and re-call up to 2,700 unique applications setups with this updated
feature, allowing for easy parameter recall for a more efficient inspection. ECHO keeps
track of various parameters, such as Gain, Range, Rectification, and Alarm Values. To
get started, follow the steps below.

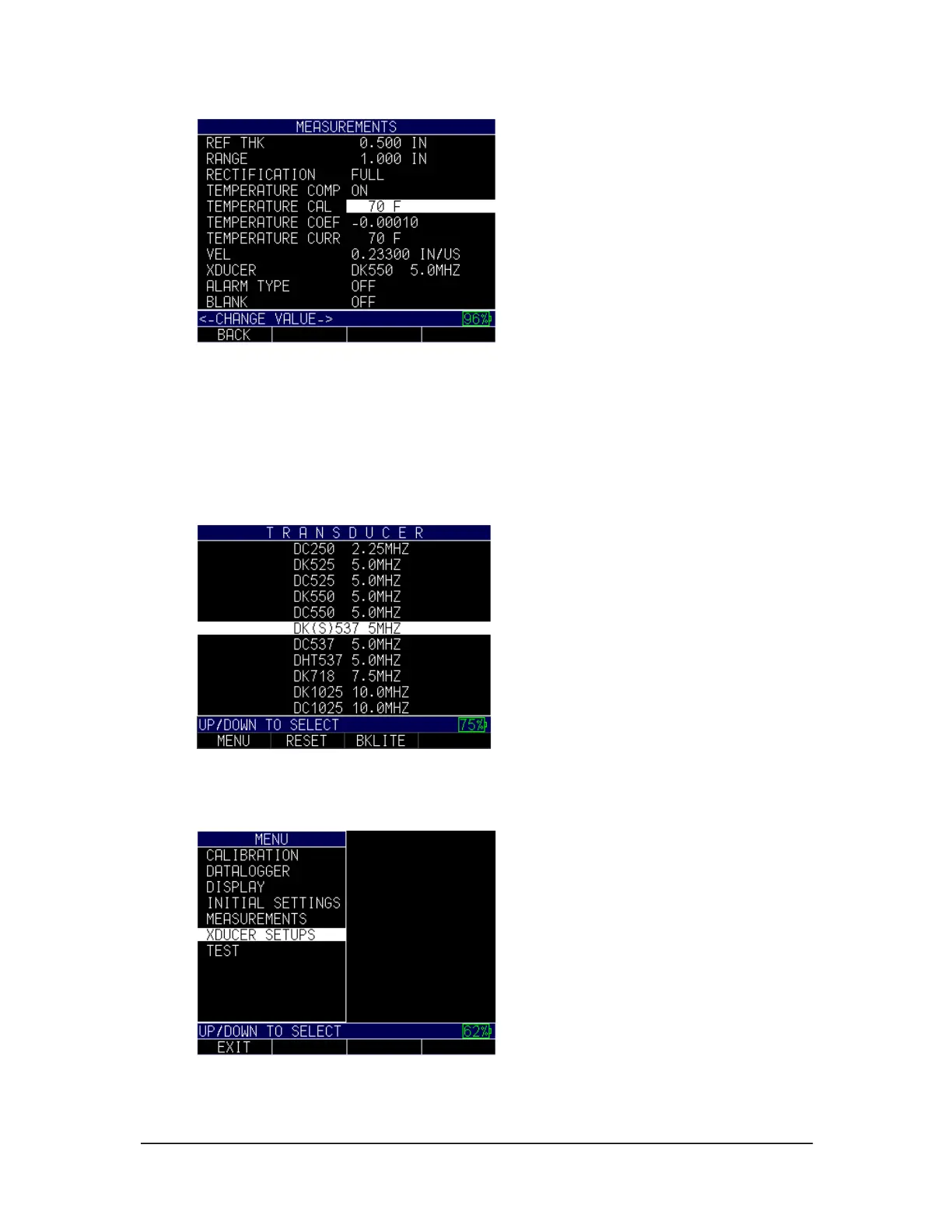

1. Choose the transducer you are using and perform your normal test.
F1 F2 F3
2. If you alter a setup parameter, such as Gain, Range, Blank, or Rectification, then
you will see in the main Menu screen as shown below:
3. After scrolling to the Xducer Setups option, press the MENU/OK key. An
asterisk next to the transducer file you started with.
