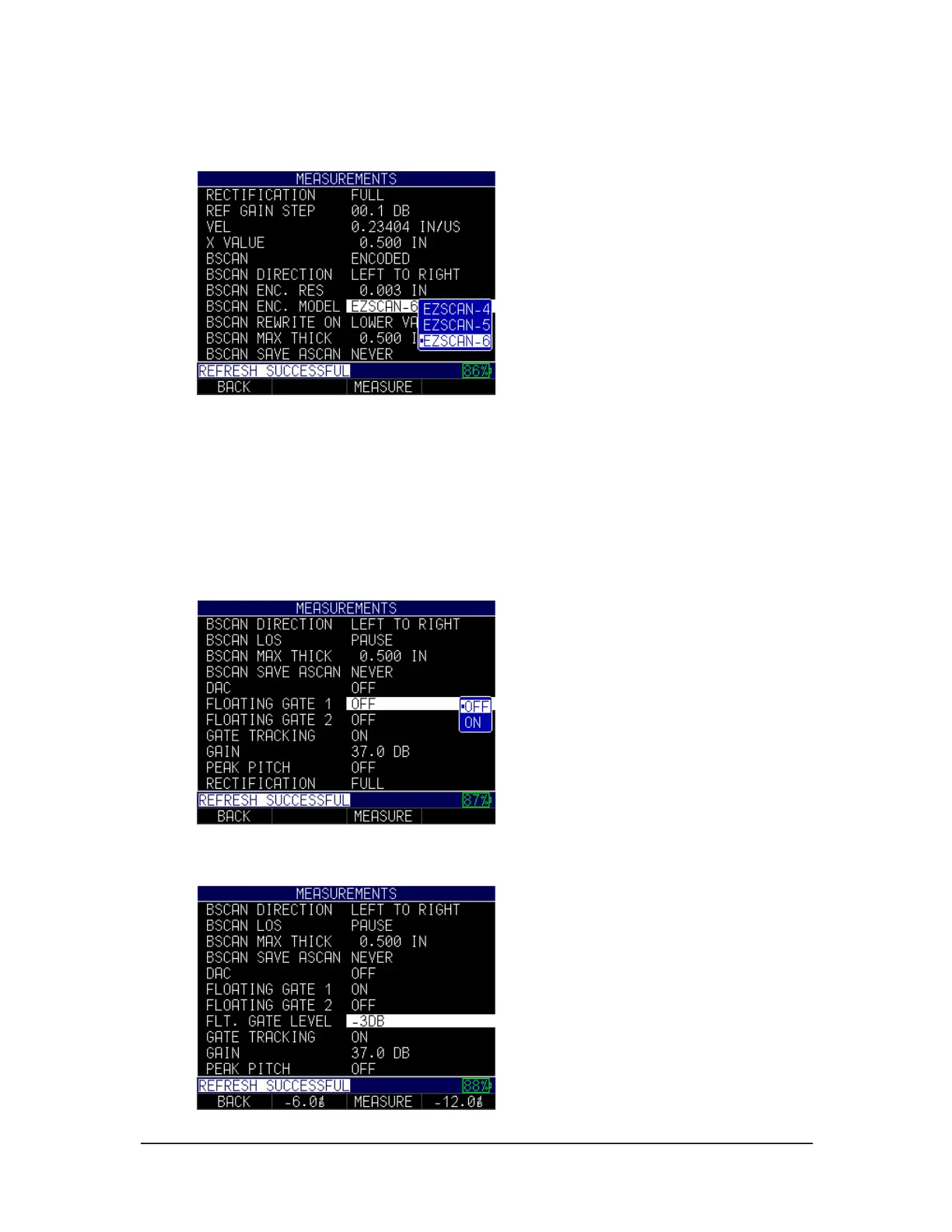

When the Encoder B-scan option is selected from the Measurement menu, select EZ
Scan 6, as shown below.
Floating Gate
The floating gate is a software option that can be enabled remotely by supplying
Danatronics with your ECHO serial number and options code found under the Menu and
Initial Settings parameters. Danatronics will provide you with a code to unlock the
floating gate. Note, the floating gate also includes a tracking gate for use in the Echo-to-
Echo thickness modes as well as some select dual probes with their unique V-path
correction. The purpose for the floating gate option is to ensure consistent thickness
readings in flaw detection mode at a 60Hz update rate.
Once the floating gate is enabled, select the -db point to measure the edge depth from 1-
18db.
