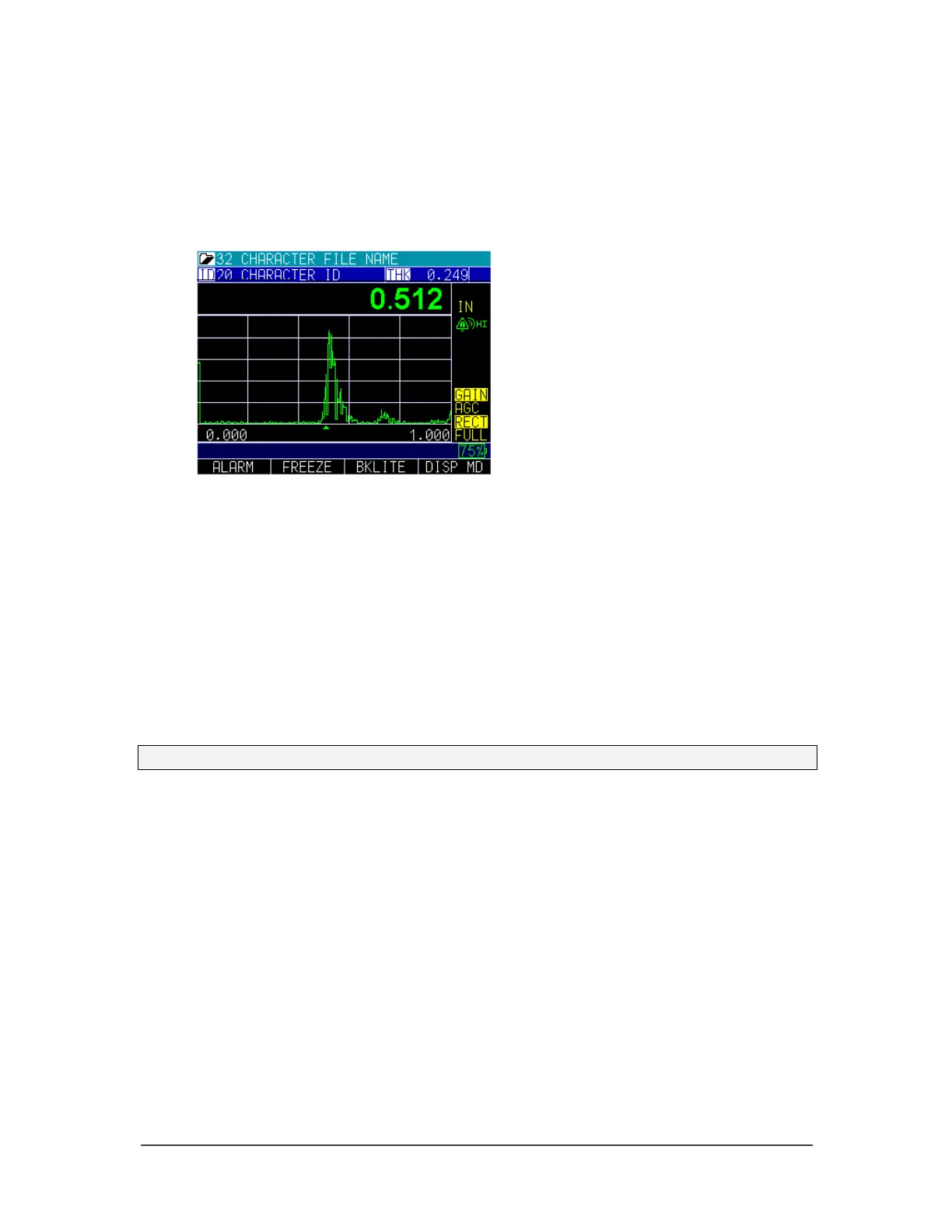

The top part of the display screen shows the File Name, ID Number, AA, and 0001 for
grid column and row. The lower part of the display acts as an interactive tool that allows
you to decide how you want to proceed with the information that is displayed on the
screen. The middle part of the screen shows the following: thickness value; In, mm or
usec; Echo-to-Echo symbol; LOS (loss of signal); Freeze; Fast Min or Max; Alarm
indicator; Differential mode; Low, Med or High gain; and percent remaining battery life.
Battery Pack
To ensure the highest level of performance and protection, the battery compartment is
separated from the electronic components of the gage.
Monitoring the Battery Charge from the Display Screen
The ECHO series continuously displays the percentage of battery life remaining on the
bottom right corner of the measurement display screen. When the battery life is below
10%, the battery indicator will turn from green to red. When the battery life is below 5%,
the indicator will flash.
Note: Power off the ECHO series gage to ensure any saved data is stored internally.
