Danatronics, Corp.
48

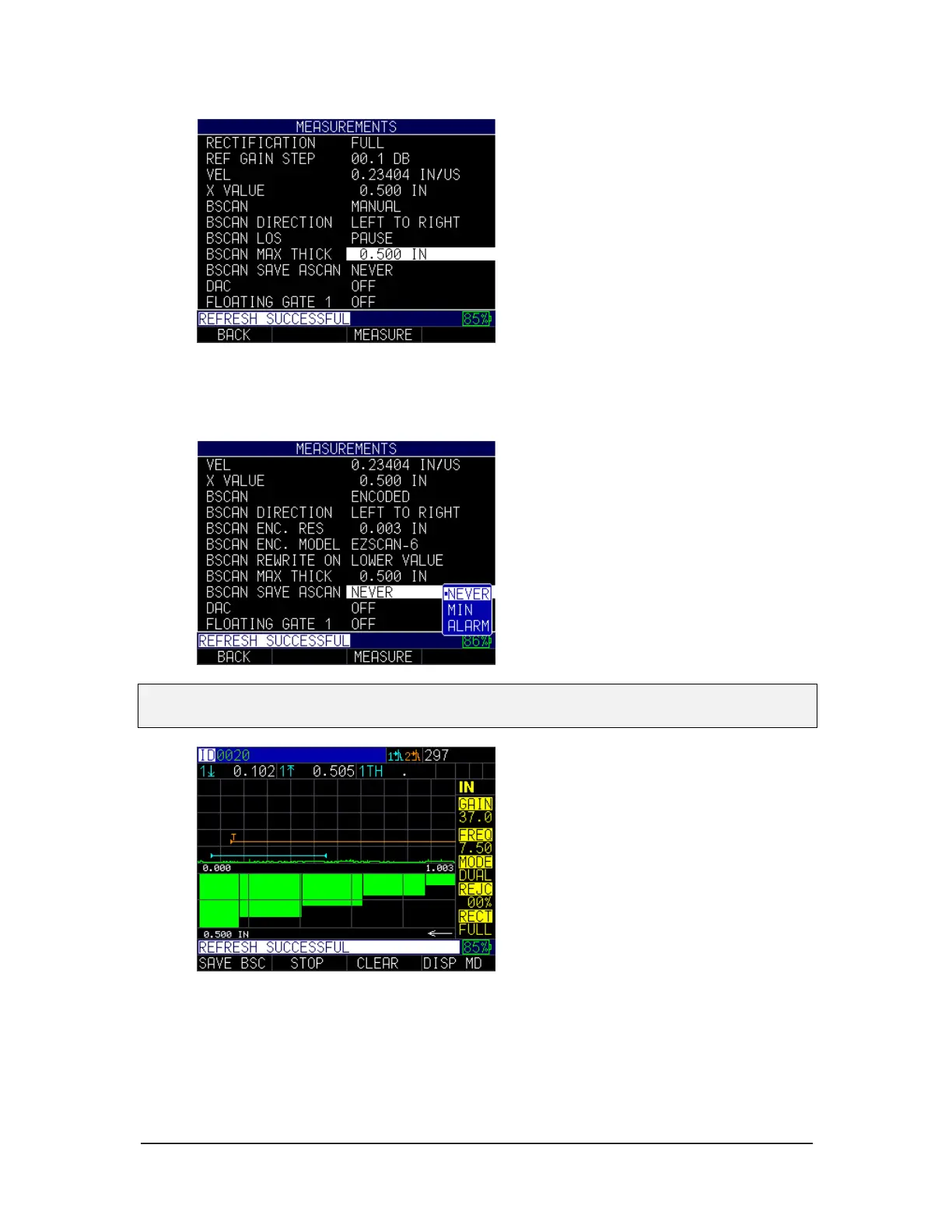

Saving an A-scan while in B-scan
If you would like to save an A-scan, you may do so while B-scan Save A-scan
parameters are set to Never, Minimum, or Alarm. Below is an example:
Note: We recommend using either Never or Min because the alarm will fill up the buffer
quickly (61 events).
Once the B-scan stops (by pressing F2), the minimum thickness is centered in the middle
of the screen. The left or right arrow keys can move the blue vertical cursor to show the
thickness at the cross hair. Thickness is located on the top right, as shown below:
