KEYPAD AND DISPLAY

PRODUCT REFERENCE GUIDE

I/O

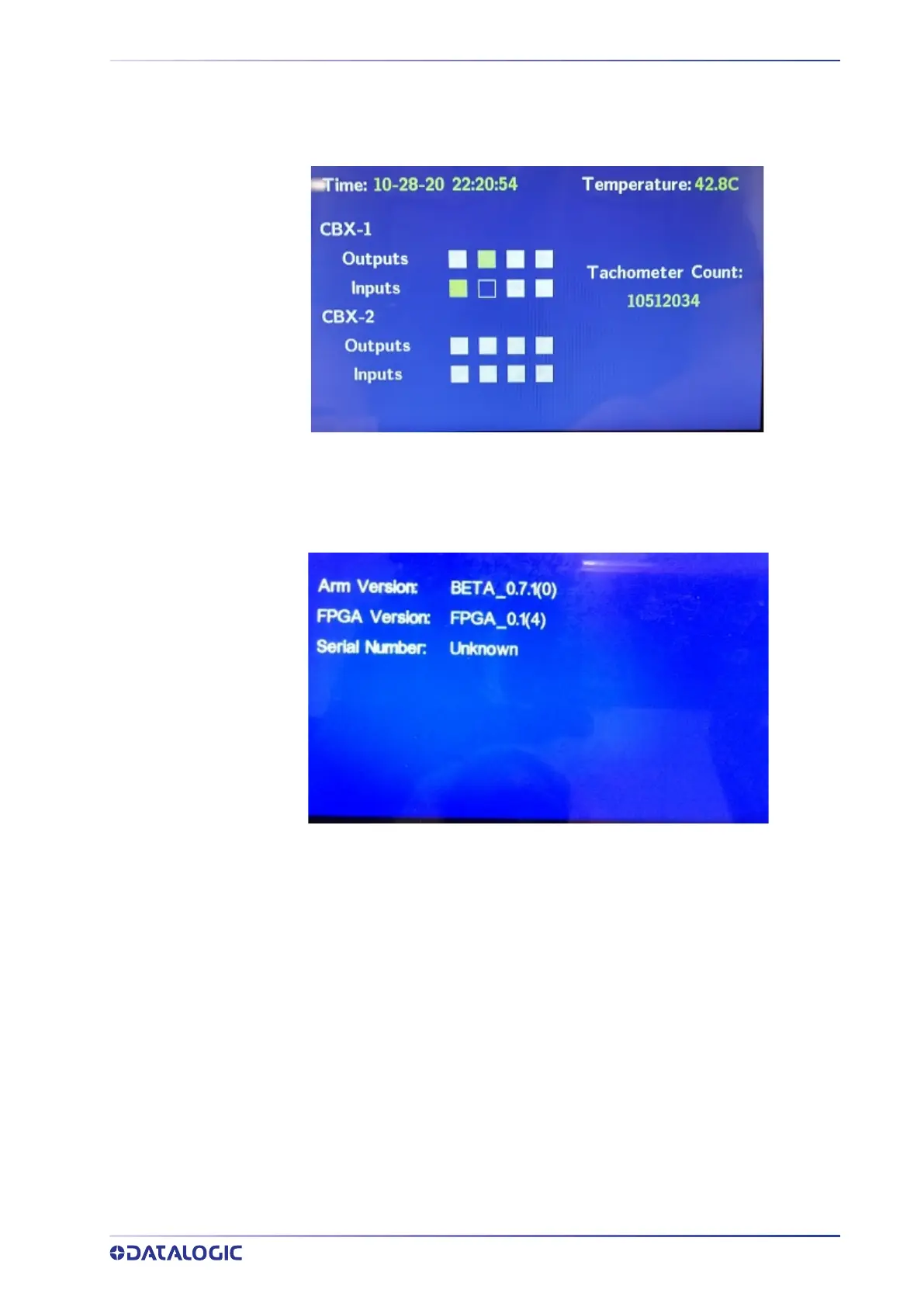

This option displays the input/outputs from the CBX units connected to the SC5100.

Included with this information is the time, temperature, and tachometer count.

SOFTWARE

This option displays the software version, FPGA version and external alibi version (and

checksum).
