13 Maintenance

252

5

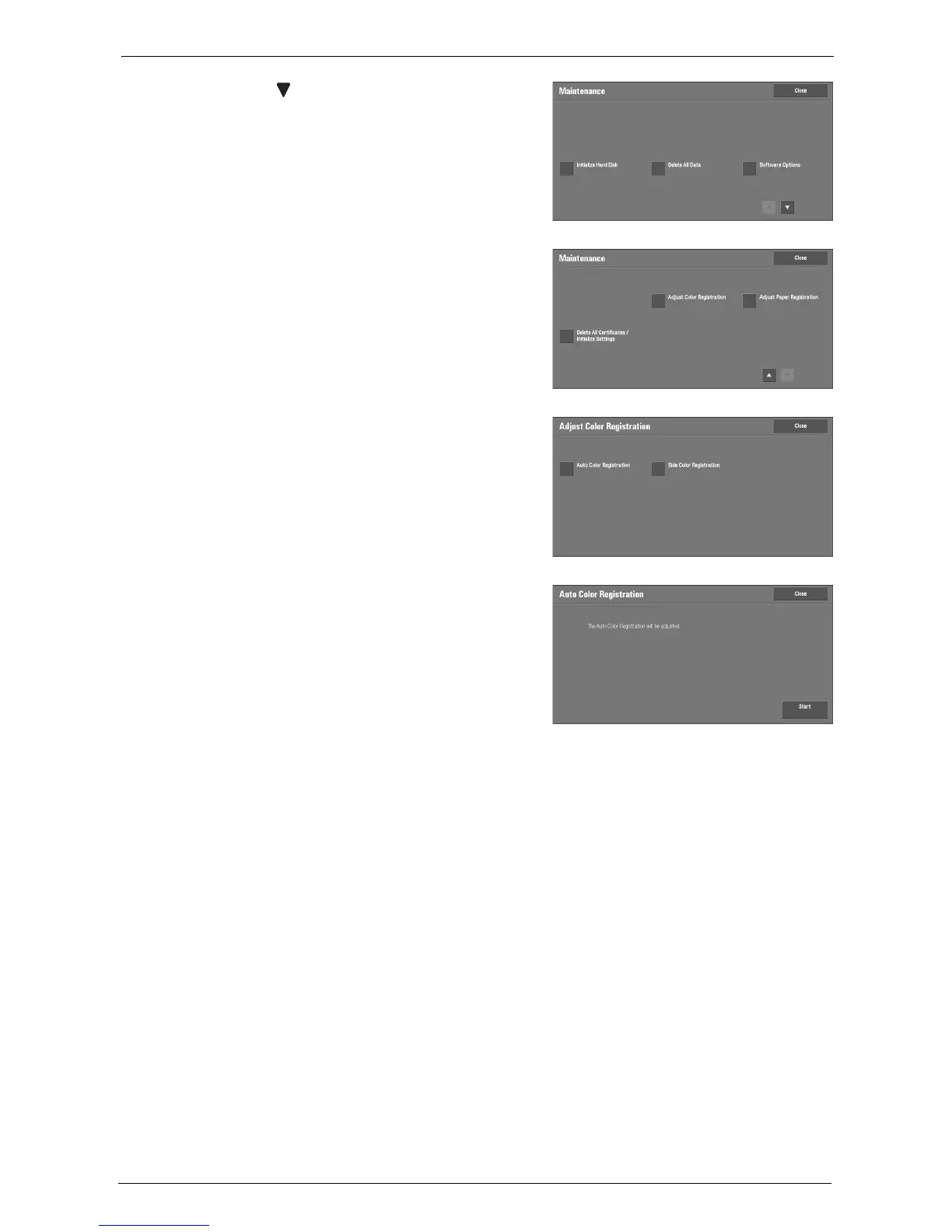

Select [ ] to display the next screen.

6

Select [Adjust Color Registration].

7

Select [Auto Color Registration].

8

Select [Start].
