Machine Components

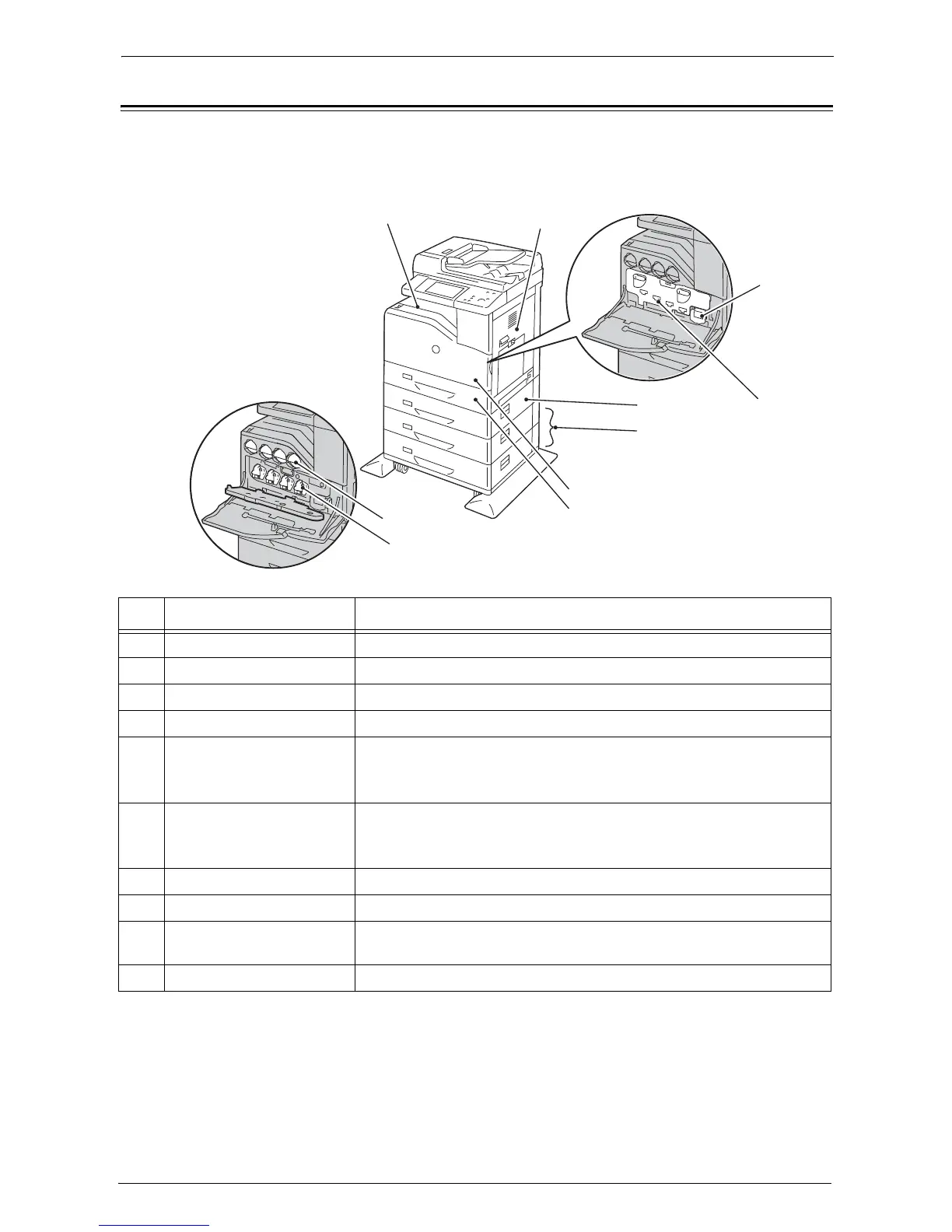

The following describes machine components and their functions.
Front View
Note • The following combinations of trays are available:
- Standard tray
- Standard tray + 550-sheet feeder x 1
- Standard tray + 550-sheet feeder x 1 + 1100-sheet feeder x 1
- Standard tray + 1100-sheet feeder x 1
1
2
3
4
5
6
7
8
9
10
No. Component Function
1 Center output tray Copies and prints are delivered here, facing down.
2 Right hand cover Open this cover to replace the consumables or clear paper jams.
3 Waste toner container Collects waste toner.
4 Inner cover Open this cover to replace the consumables.
5 550-sheet feeder (optional) Load paper here.
Note • The machine allows for a maximum of 4 trays (Standard tray, 550-sheet
feeder, and 1100-sheet feeder (2 trays)).
6 1100-sheet feeder (optional) Load paper here.
Note • The machine allows for a maximum of 4 trays (Standard tray, 550-sheet
feeder, and 1100-sheet feeder (2 trays)).
7 Front cover Open this cover to replace the consumables.
8 Standard tray Load paper here.
9 Toner cartridges Contains Black (K), Cyan (C), Magenta (M), and Yellow (Y) toner (image
forming powder).
10 Drum cartridges Contains Black (K), Cyan (C), Magenta (M), and Yellow (Y) drums.
