Stapler Faults
627

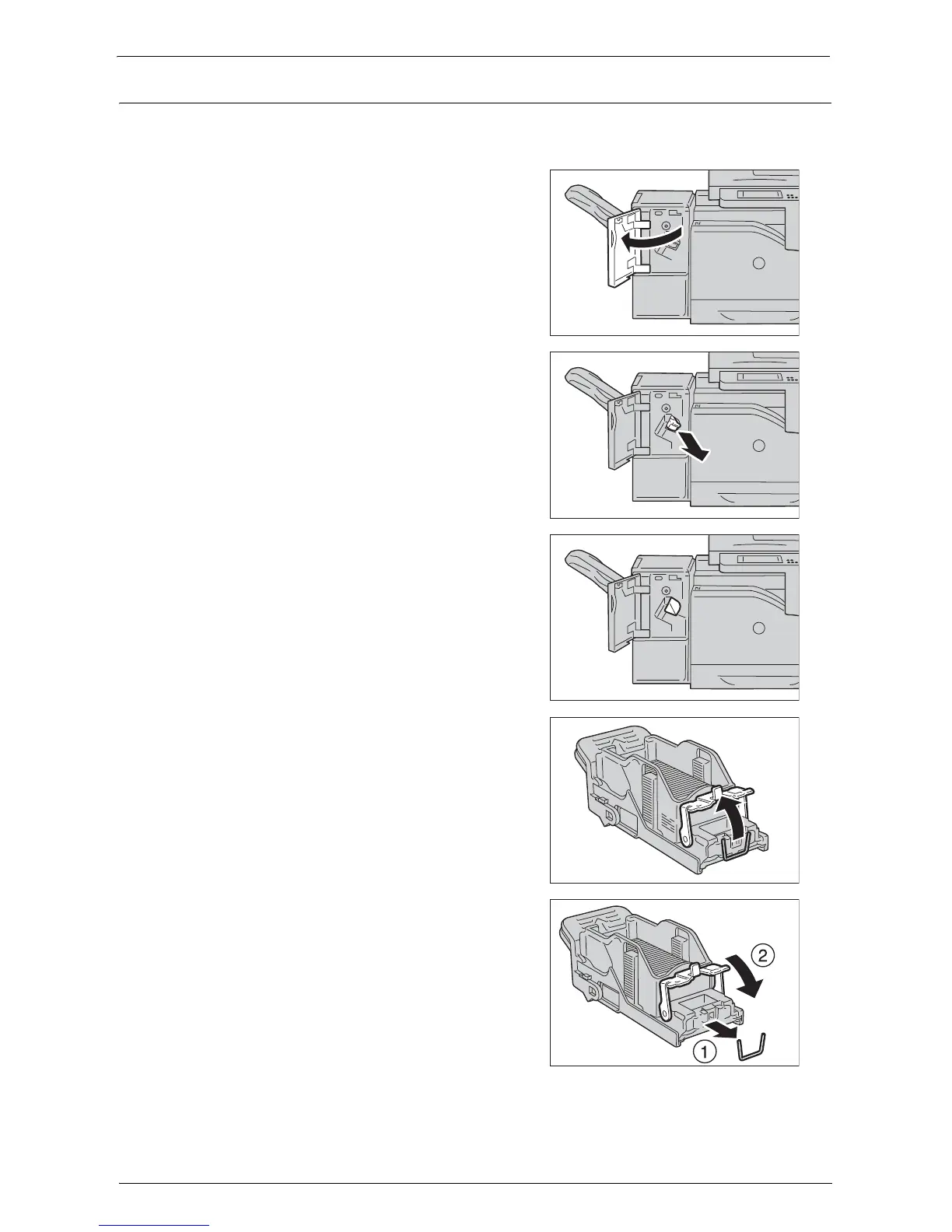

Staple Jams in Staple Cartridge (for Finisher-AB1)
This section describes how to clear staple jam occurred in the staple cartridge of the Finisher-
AB1 (optional).
1
Make sure that the machine is not operating,
and open the finisher front cover.
2
Take the staple cartridge out of the machine.
Note • The staple cartridge is firmly inserted. A slight
force is required to pull the cartridge out of the
finisher.
3
After you take out the staple cartridge, check
inside of the finisher for any remaining staples.
4
Pull up the metal part of the staple cartridge as
shown in the illustration.
5
Remove the jammed staples (1), and then
return the metal part pulled up in step 4 to the
original position (2).
To Next Page
