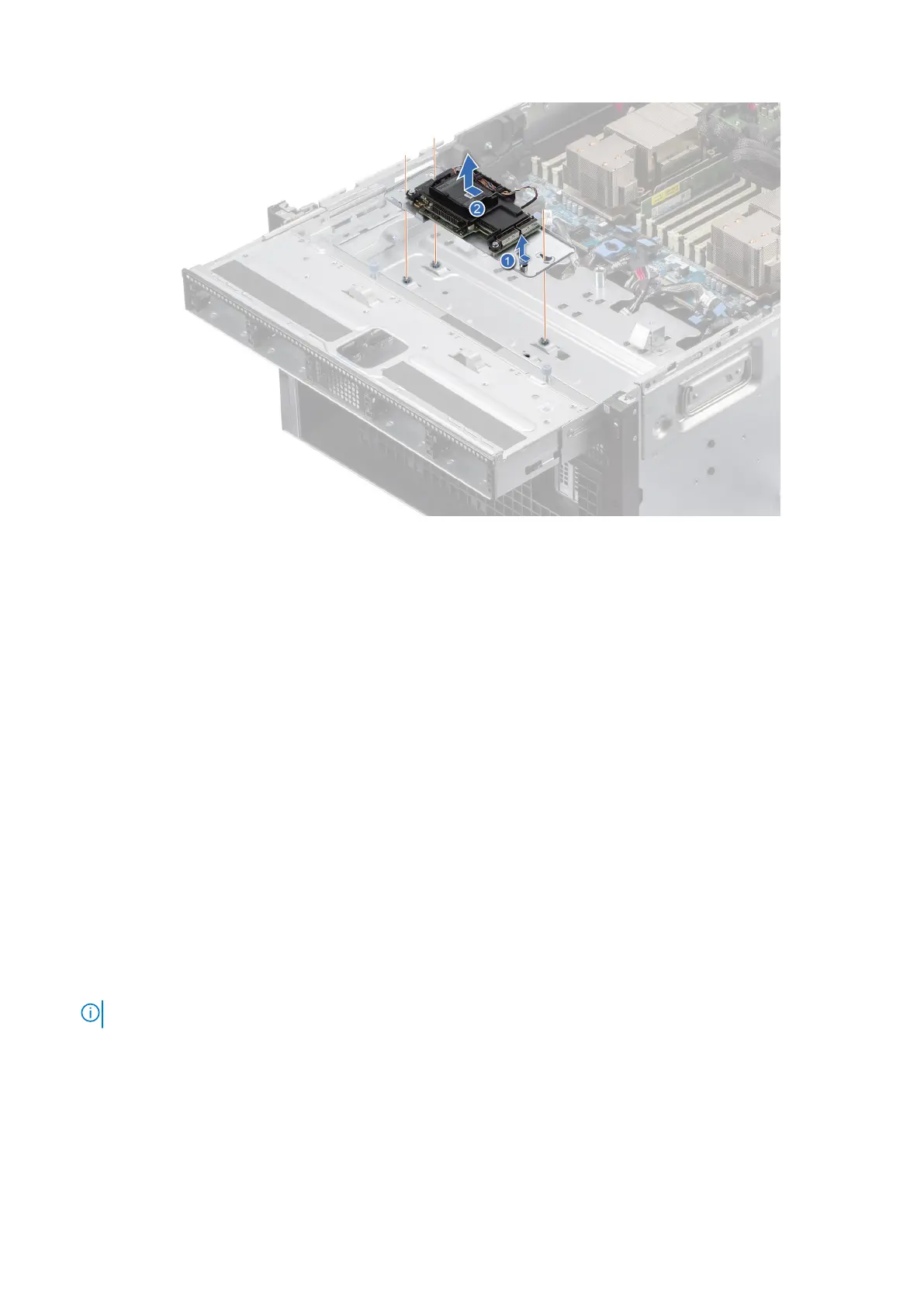

Figure 65. Removing the front perc module
Next steps
1. Replace the front perc module.
Installing the front perc module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the front top cover.
4. Remove the cooling fan cage assembly.
5. Remove the air shroud .
6. Remove the drives.
7. Observe and disconnect the drive backplane cables from the connector on the system board and backplane.
8. Remove the drive backplane.
9. Slide out the drive cage.
Steps
1. Insert the metal tray with front perc module on the system.
2. Pull the plunger to align the metal tray of front perc module in its place and slide toward right of the system.
NOTE: Plunger auto locks into place.
100 Installing and removing system components
