Chassis dimensions

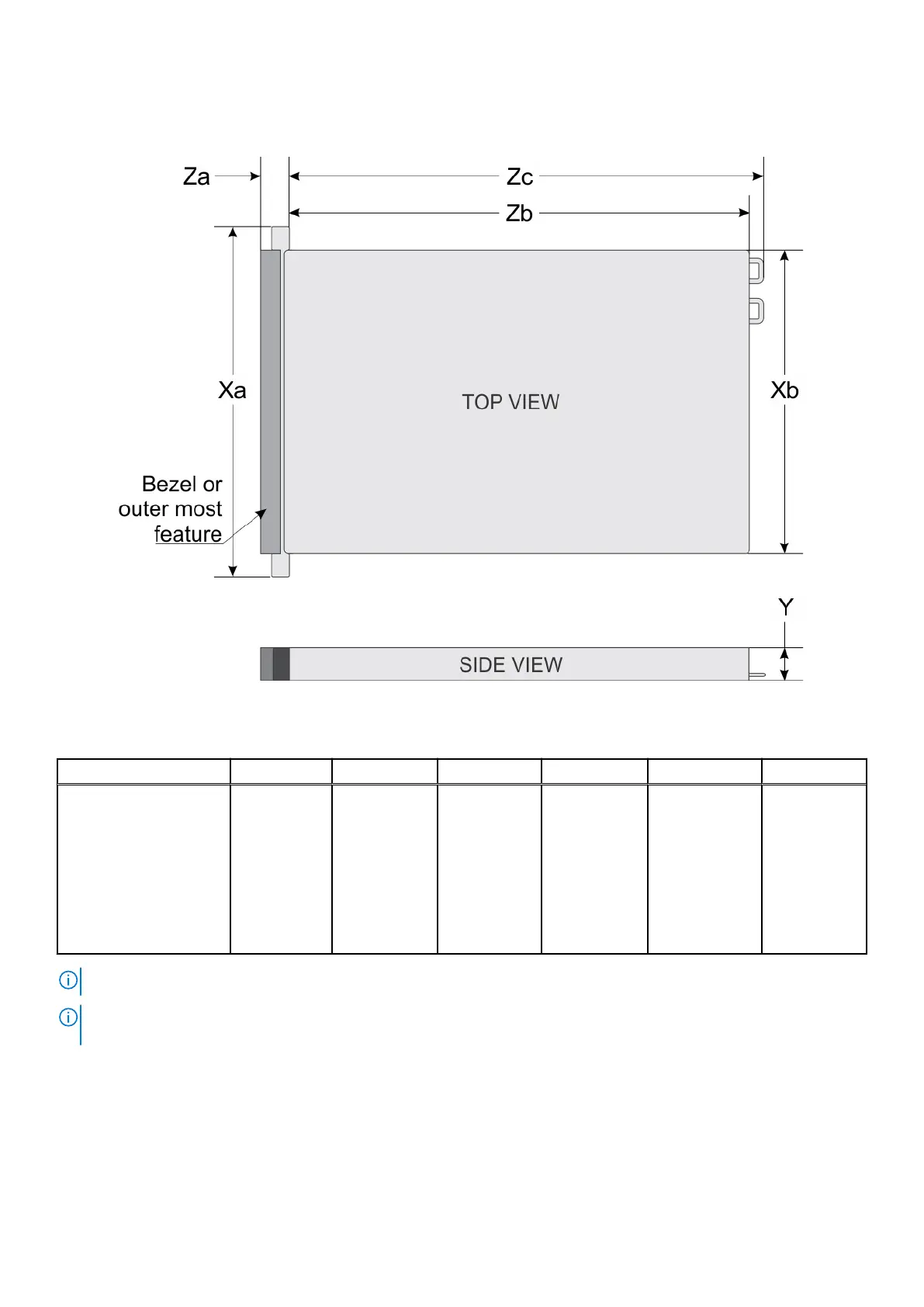

Figure 22. Chassis dimensions
Table 6.
Chassis dimension for the PowerEdge XE9680 system
Drives Xa Xb Y Za Zb Zc
8 x 2.5-inch SATA/SAS/
NVMe SSD drives
configuration
16 x E3.S NVMe drives
configuration
482.0 mm
(18.97 inches)
447.0 mm
(17.59 inches,
top)
434.0 mm
(17.08 inches,
bottom)
263.2 mm
(10.36 inches)
35.77 mm (1.4
inches)With
bezel
22.0 mm (0.87
inches Without
bezel
855.5 mm
(33.68 inches,
top) Ear to rear
wall
966 mm (38.03
inches, bottom)
Ear to rear GPU
fan
973 mm
(38.30 inches)
Ear to Fan
latch
NOTE: Zb is the nominal rear wall external surface where the system board I/O connectors reside.
NOTE: Chassis length is longer than usual, need to consider potential interferences with rear mounted PDU or the rear rack
door when installed on rack.
Technical specifications 25
