Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the cooling fan cage assembly.
Steps
1. Holding the edges of the air shroud, incline the air shroud at an angle.
2. Move the cables away from the air shroud to prevent the cables from being pinched or crimped.
3. Lift the air shroud from the system.

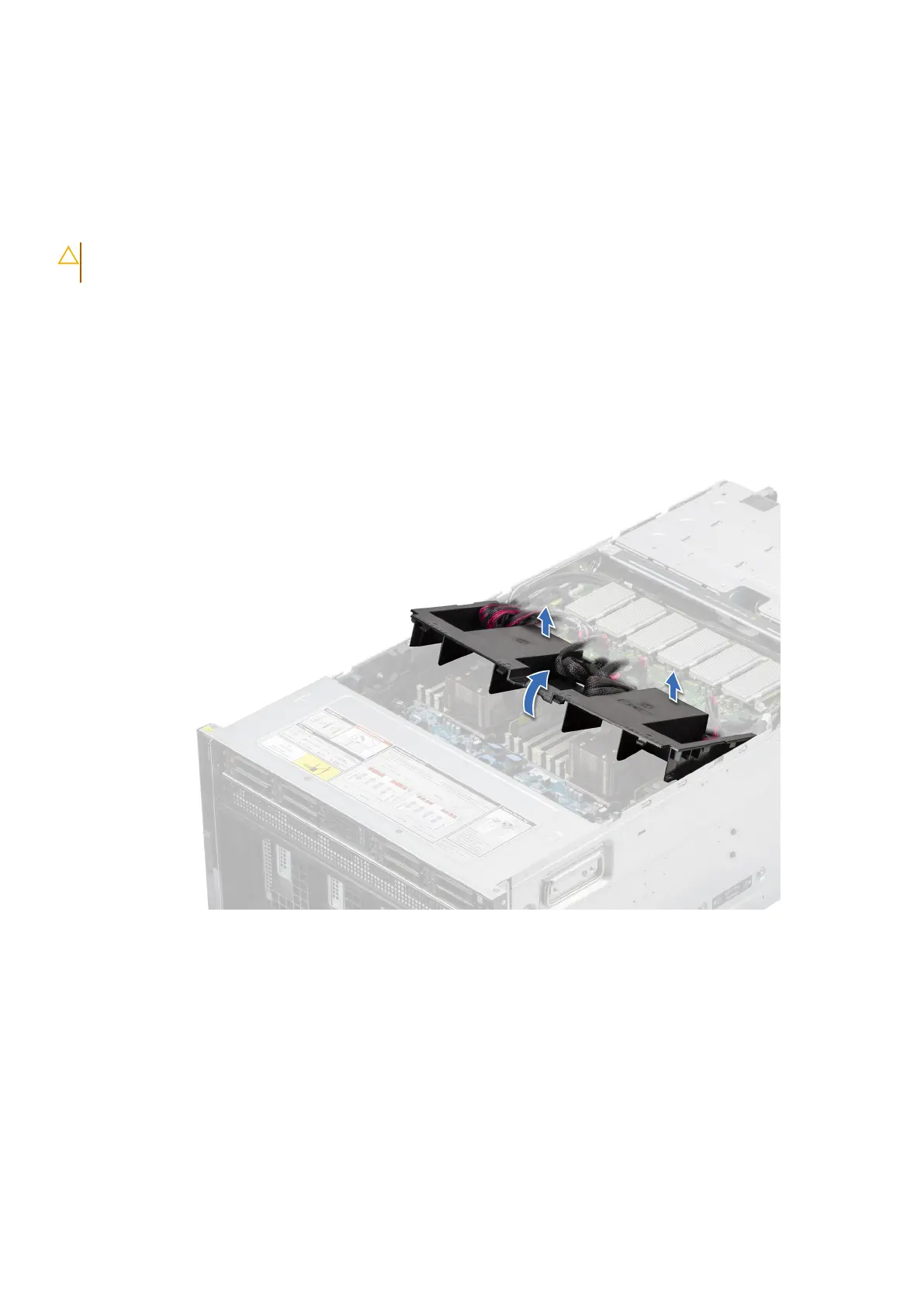

Figure 37. Removing the air shroud
Next steps
1. Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Installing and removing system components
77
