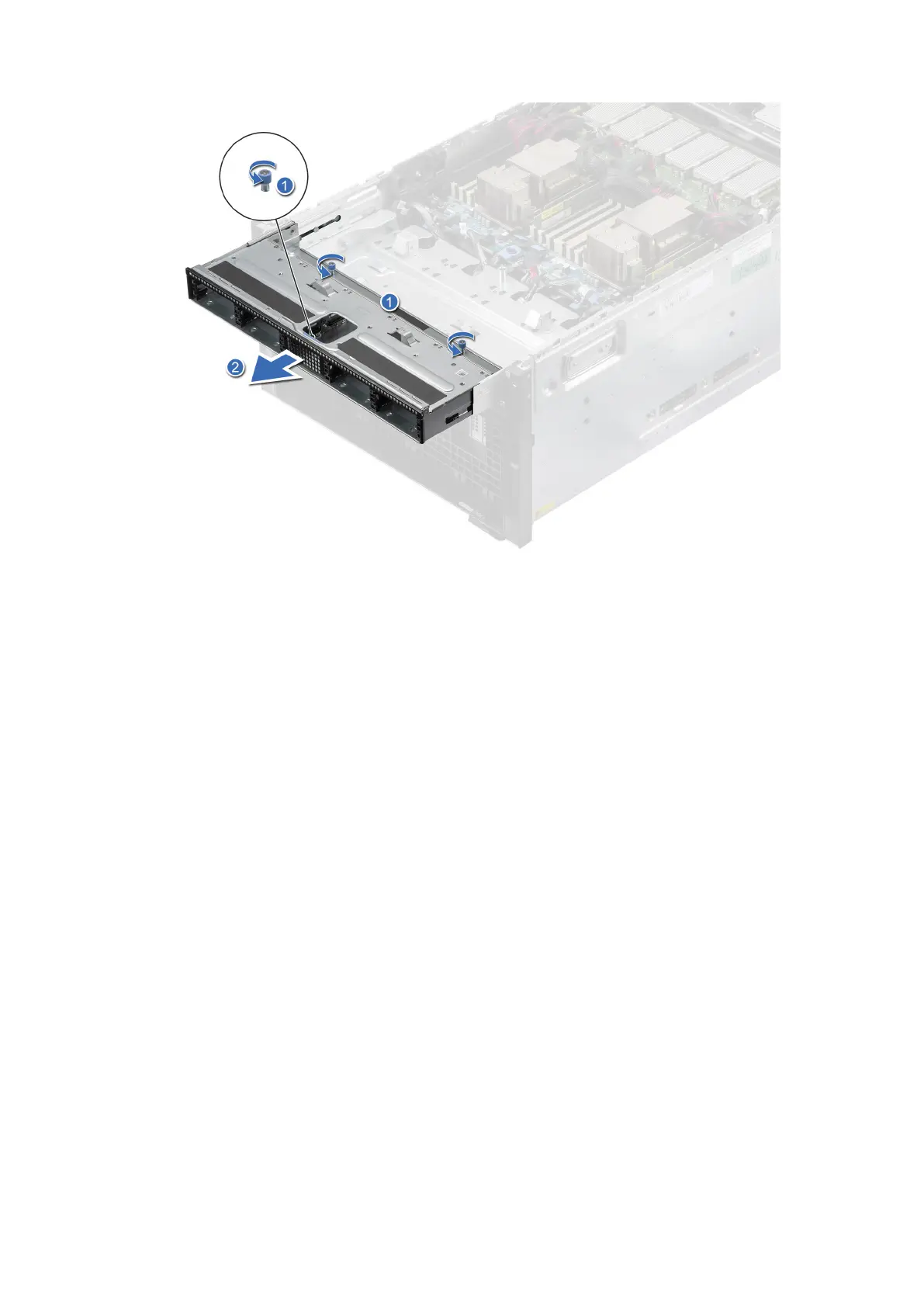

Figure 59. Sliding out the drive cage
Next steps
1. Sliding in the drive cage.
Sliding in the drive cage
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the front top cover.
4. Remove the cooling fan cage assembly.
5. Remove the air shroud .
6. Remove the drives.
7. Observe and disconnect the drive backplane cables from the connector on the system board and backplane.
8. Remove the drive backplane.
Steps
1. Push the drive cage toward the rear of the chassis.
2. Using a Phillips 2 screwdriver, tighten the three thumb screws on the drive cage.
Installing and removing system components
95
