Next steps
Install an EDSFF E3.S drive into the drive carrier.
Installing an EDSFF E3.S drive into the drive carrier
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Remove an EDSFF E3.S drive blank or Remove an EDSFF E3.S drive carrier.
Steps
1. Insert the drive into the drive carrier with the drive connector facing towards the rear of the carrier.
2. Align the screw holes on the drive with the screws holes on the drive carrier.
3. Using a Torx 6 screwdriver, secure the drive to the drive carrier with the screws.
NOTE: When installing a drive into the drive carrier, ensure that the screws are torqued to 4 in-lbs.

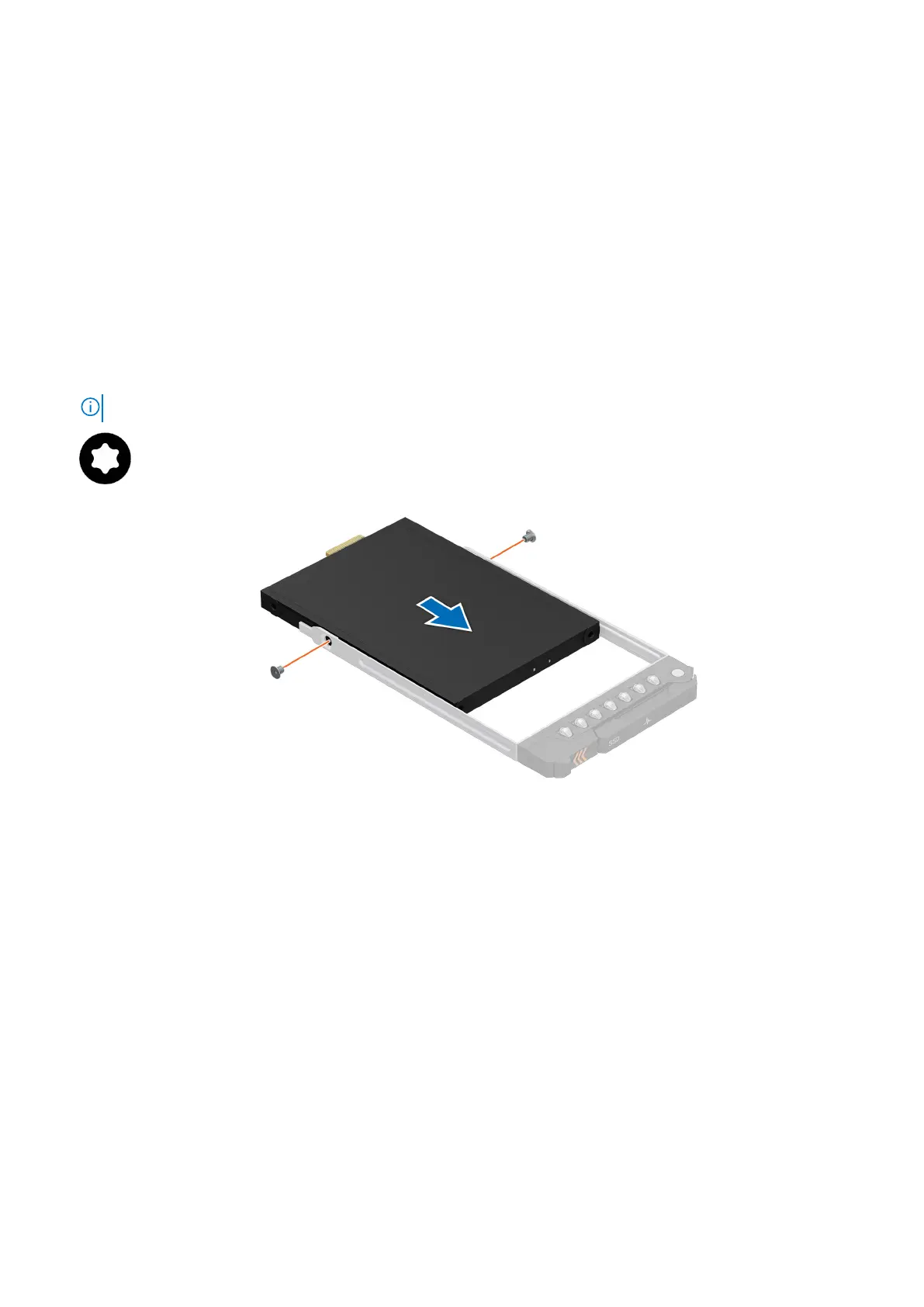

Figure 52. Installing an EDSFF E3.S drive into the drive carrier
Next steps
1. Install an EDSFF E3.S drive carrier.
Drive backplane
This is a service technician replaceable part only.
Drive backplane
Depending on your system configuration, the drive backplanes that are supported are listed here:
