Dell PowerEdge XE9680 - Left Control Panel (LCP)

Left Control Panel (LCP)
The LCP provides support for at-the-box-management or system health at a glance. The system health and system ID indicator
is located on the left control panel of the system.
Status LED left control panel

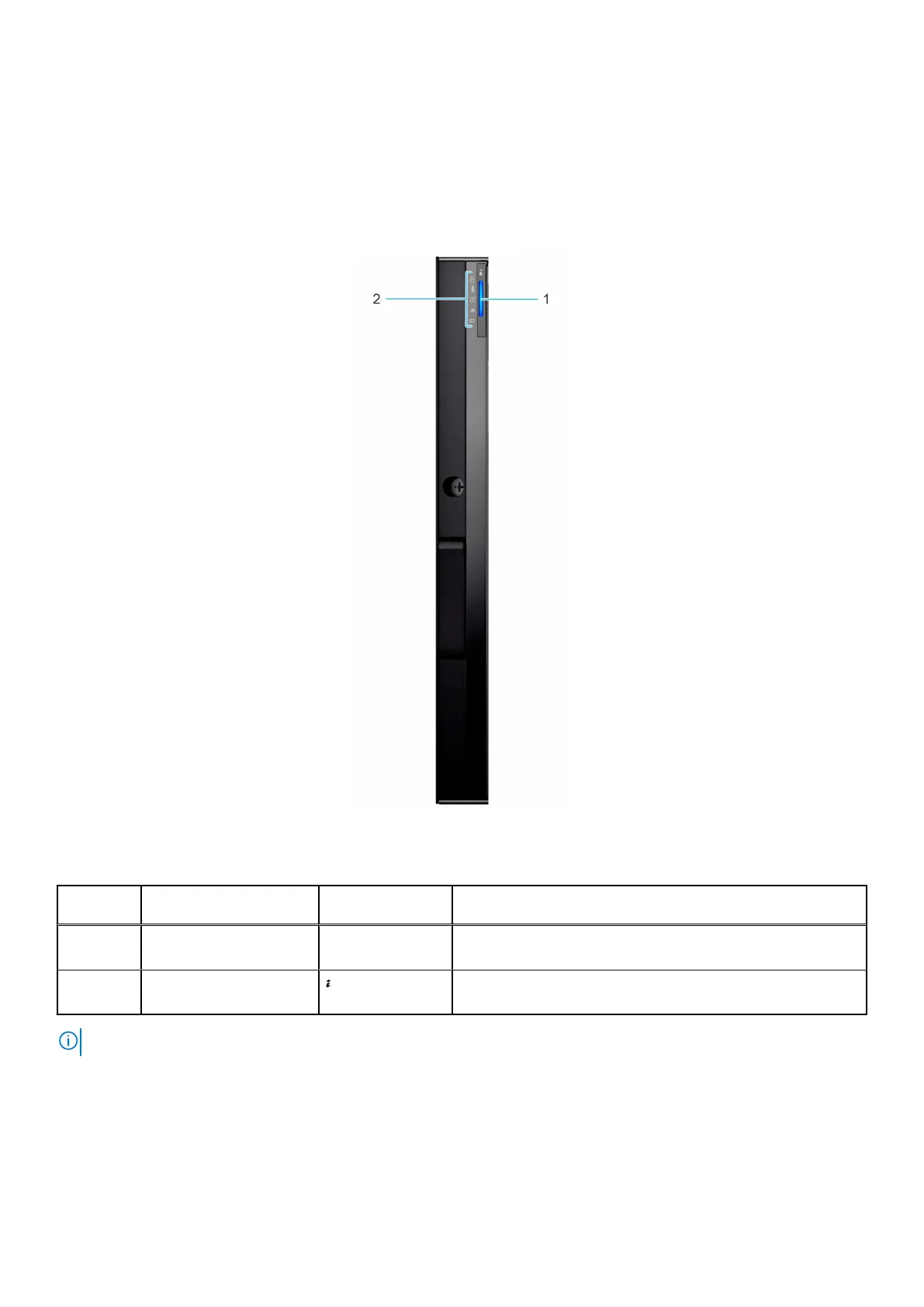

Figure 3. Left control panel
Table 3.
Left control panel
Item Indicator, button, or
connector
Icon Description
1 System health and system
ID indicator
N/A Indicates the system health. For more information, see the
System health and system ID indicator codes section.
2 Status LED indicators Indicates the status of the system. For more information, see
the Status LED indicators section.
NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.
The following table describes the system health and system ID indicators on the LCP.
12
Dell PowerEdge XE9680 system configurations and features
