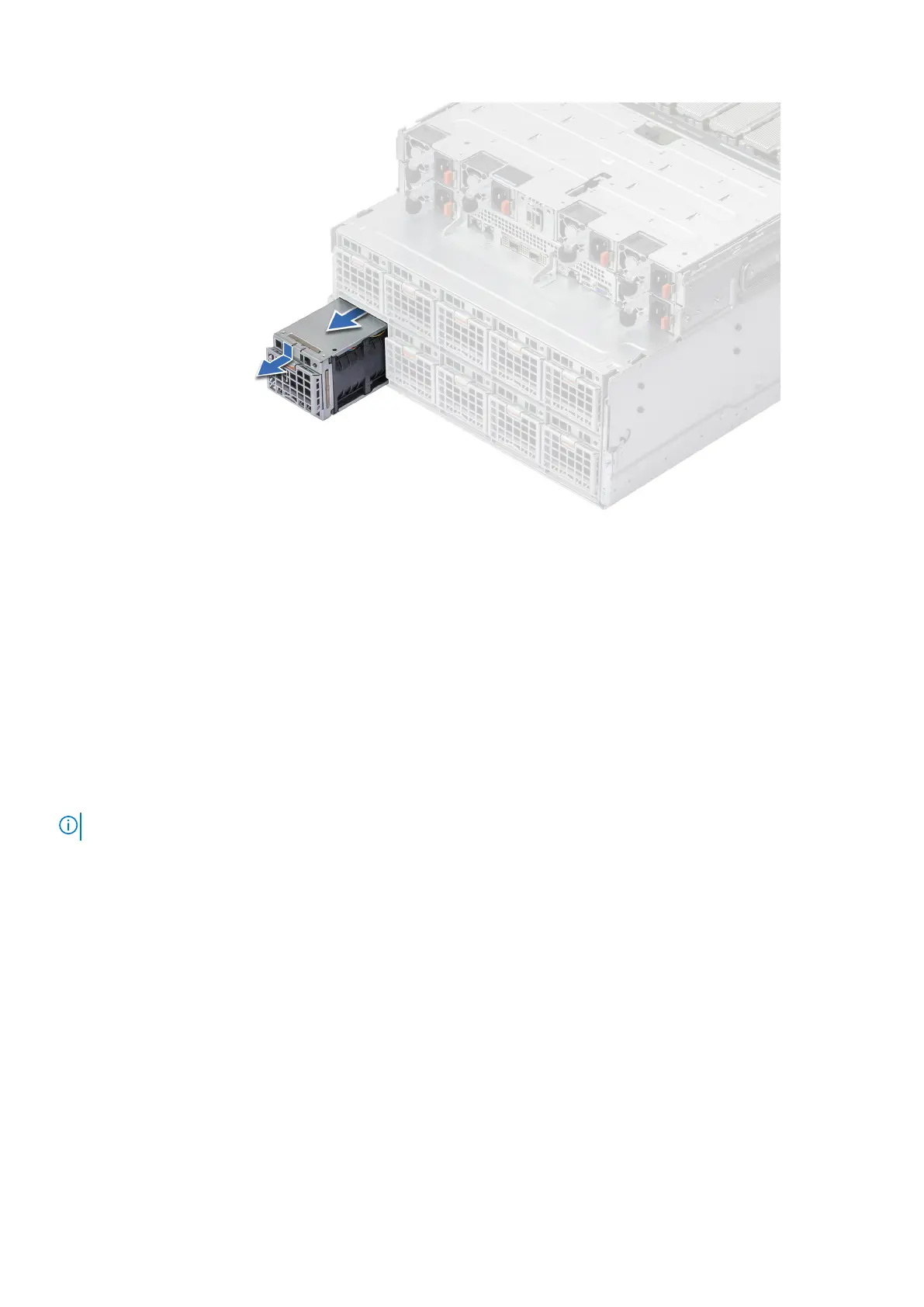

Figure 126. Removing a GPU fan module
Next steps
1. Replace GPU fan module.
Installing a GPU fan module
There are ten GPU fan module on the rear of the system. The procedure to install is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
NOTE: Ensure to constrain the GPU fan service time to 30 seconds to prevent any potential overheating.
Steps
1. Align the GPU fan module with the GPU fan cage wall.
2. Using both hands push the GPU fan module to the end until it clicks into place.
154
Installing and removing system components
